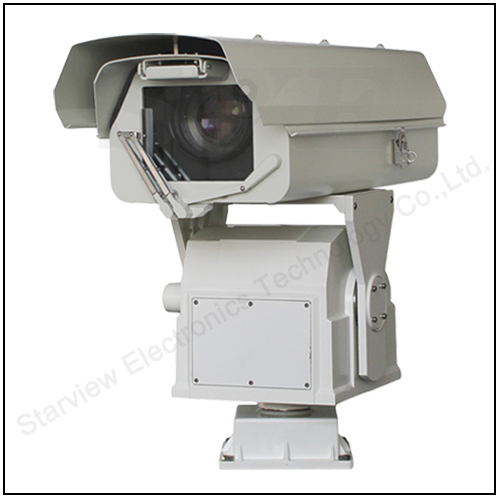

5km 72X Optical 1080P Integrated PTZ Security Camera

Key Features
  1. 2.0MP 1/1.8" CMOS ICR Starlight Day HD Network Camera;
  2. Large diameter high-definition de-fog automatic zoom visible lens, DC drive, auto iris, through the fog, preset;
  3. PTZ adopts the design of large transmission ratio of turbine worm, metal structure, copper gear wheel, large torque, strong carrying capacity, high power self-locking ability after power failure;
  4. PTZ adopts dynamic voltage drive technology, high load capacity, strong wind resistance, strong earthquake resistance, high stability, ultra low speed operation;
  5. PTZ adopts super aluminum alloy shell, protection class IP66, professional structure design, professional wiper structure, high and low temperature test design, high temperature anti-ice and snow, to adapt to extreme weather;
  6. Advanced electromagnetic compatibility test, using triple lightning protection technology.
Application

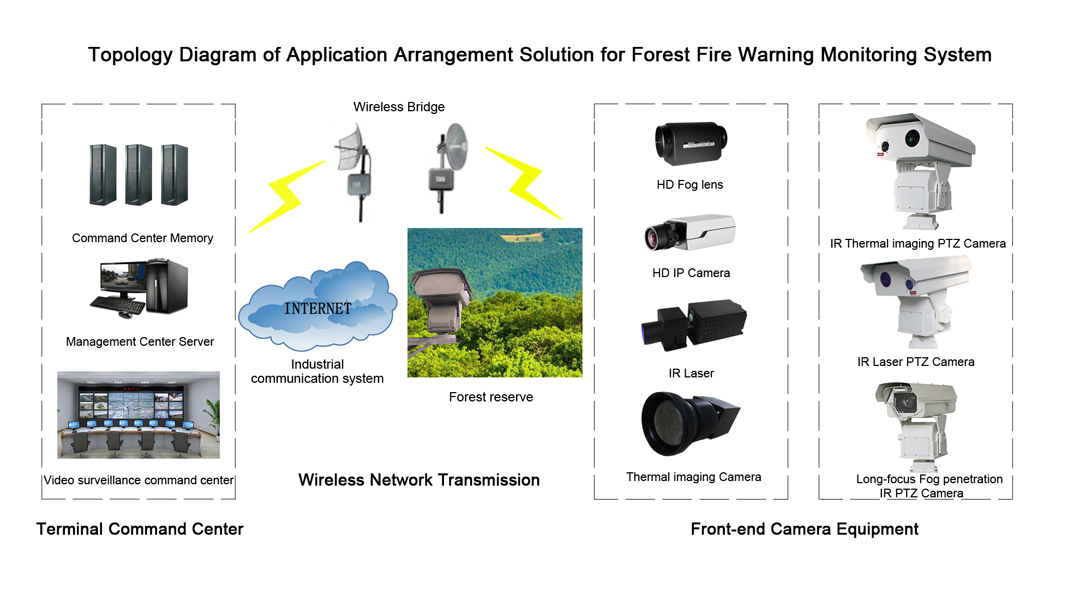

Forest fire prevention, safe city, prison, warehouse, oil field oil depot, long pipeline, large factory, mining, freight yard, borderline, maritime fishery, ecological protection area, reservoir.

Technical parameters
Model
Model No. SVN-72SXT32
Type 5KM 72X Optical zoom 1080P integrated PTZ Camera
Lens
Focal Length 6.1-440mm, 72X Optical Zoom
Aperture Range F1.4-F6.3
Horizontal field of view 65.5-1.3°(wide-tele)
Minimum Working distance 100mm-2500mm (wide-tele)
Zoom speed Approximately 6s(optical lens, wide to tele)
HD Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Minimum Illumination color:0.0005 Lux @(F1.4,AGC ON);B/W:0.0001Lux @(F1.4,AGC ON)
Shutter 1/25s to 1/100,000s; Supports delayed shutter
Autoiris yes
Day/Night Switch IR cut filter
Digital zoom 16X
Compression Standard
Video Compression H.265 / H.264 / MJPEG
H.265 Type Main Profile
H.264 Type BaseLine Profile / Main Profile / High Profile
Video Bitrate 32 Kbps~16Mbps
Audio Compression G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
Audio Bitrate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)
Image(Maximum Resolution:1920*1080)
Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 60fps (1920 × 1080)
Third Stream 50Hz: 25fps (1920 ×1080); 60Hz: 30fps (1920 ×1080)
Image settings Corridor mode, saturation, brightness, contrast, sharpness adjusted by IE/ Client
BLC Support
Exposure mode AE / Aperture Priority / Shutter Priority / Manual Exposure
Focus mode Auto Focus / One Focus / Manual Focus / Semi-Auto Focus
Area exposure / focus Support
Optical fog Support
Image stabilization Support
Day/Night Switch Automatic, manual, timing, alarm trigger
3D noise reduction Support
Picture overlay switch Support BMP 24-bit image overlay, customizable area
Region of interest ROI supports three streams and four fixed areas
Network
Storage function Support Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support)
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
Interface Protocol ONVIF(PROFILE S,PROFILE G)
Smart Features(optional)
Smart detection Cross-border detection, area intrusion detection, entering / leaving area detection, hovering detection, personnel gathering detection, fast motion detection, parking detection / take detection, scene change detection, audio detection , False focus detection, face detection
PTZ parameter
Pan manual control speed 0.01°/S   --  20°/S
Tilt manual control speed 0.01 °/S  --  10°/S
Pan angle 360° contiously rotation
Tilt angle +40°~-45°
Preset 256 pcs preset position
Cruising 8 channels
Auto scanning 8 channels
Automatic homing function Support
Patrol 4 channels
Auxiliary switch 2 groups
load Top load 50KG
Control way RS485,rotation angle return angle and angle control can be realized
General specification
Relative humidity 90%
IP grade IP66
Working temperature -40 ºC - 55ºC
Power supply AC24V/DC24V
Consumption ≤100W
