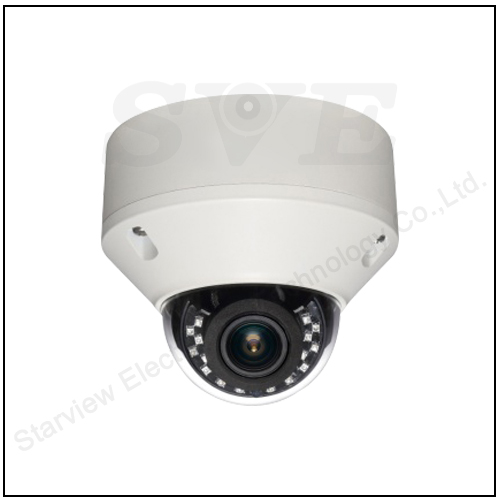

2MP IR Dome Camera Vandal-proof HD-SDI/EX-SDI/AHD/TVI/CVI/CVBS

  • 1/3 inches progressive scan 2.1MP Sony CMOS sensor
  • 1080p (1920*1080) at 25/30fps
  • Dual output-megapixel HD-SDI (BNC) and CVBS 1.0Vp-p 750hm
  • Supports WDR, 3D-DNR, digital zoom 16x
  • 2M pixels 2.8-12mm lens
  • OSD menu, motion detection, privacy zone, HLC, BLC
  • AWB/ATW/PUSH/manual
  • Output: HD-SDI/EX-SDI/AHD/TVI/CVI/CVBS
  • 20-piece SMD LED 30M
  • Vandal-proof: IK8
  • Weather-proof: IP66
Model SV-D815S2EAC
Video
Imaging device 1/3" progressive scan Sony CMOS Sensor
Effective pixels 1920 (H) * 1080 (V)
Video frame rate PAL: 25fps
NTSC: 30fps
Sync system Internal synchronization
Min illumination Color 0.01Lux at F1.2, 0Lux IR on
S/N (Y signal) 50dB
Video output BNC: HD-SDI/EX-SDI/AHD/TVI/CVI/CVBS
Transmission distance Up to 500 meters loss less transmission with 75-3 coax
Day and night Auto ICR cut
Backlight compensation Auto
White balance Auto
Electronic shutter AUTO/1/50 (1/60)-1/100,000sec
Lens
Focal length 2.8mm-12mm varifocal lens (optional)
IR LEDs IR distance 30M with 20 pieces SMDS
Other
Weather-proof IP66
Vandal-proof IK8
Operating temperature -10 to +50°C RH 95% max
Storage temperature -20 to +60°C RH 95% max
Dimensions Ø140 x 124.8/*81.95mm
Weight 0.65kg
Electrical
Input voltage 12V DC 10%
Power consumption 12V DC/100mA
