4CH 720P AHD 3G/4G wifi Mobile Digital Video Recorder

Overview

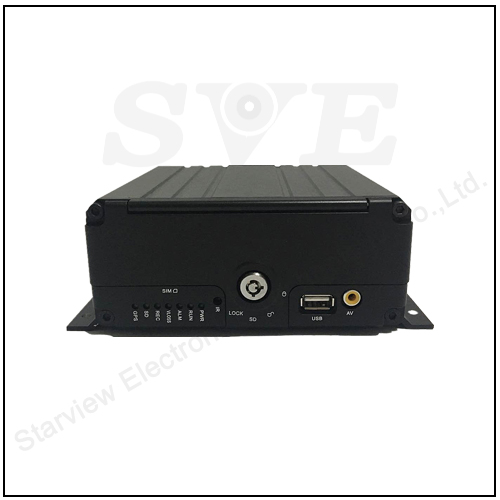

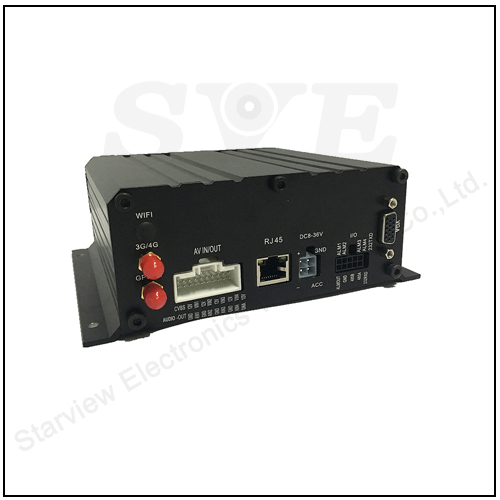

SVN-A6H41B is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, 3G/4G network, GPS positioning technology, as well as WIFI. It supports not only video recording in 720P, AHD, D1, HD1 and CIF formats, but also vehicle travel information recording and wireless data upload. With center software it also achieves alarm linkage central monitoring, remote management and playback analysis. It is easy to use with simple design, multi-functions, HDD+SD card, superior anti-vibration, flexible installation and high reliability.

Key Features
  1. Supports 4 channels AHD 720P
  2. Supports GPS for location tracking, optional.
  3. Supports WIFI for video files download
  4. Built-in 3G/4G for live view and remote management
  5. VGA output standard
  6. Built-in G-sensor
Model SVN-A6H41B
Item Parameter
OS Linux
Video Compression H.264
OSD date/time, vehicle ID, etc
GUI Graphic OSD Connect to external monitor, use mouse to set parameters
Video&
Recording
Video Input 4CH 720P AHD, 4pin Aviation Din, 1.0Vp-p, 75Ω
Video Output 1CH output+VGA output, 1.0Vp-p, 75Ω, 1CH/4CH
Preview 1/4ch split display, Support Event alarm, Rear view full display function.
Resolution 4CH 720P, and 720P,D1,HD1,CIF optional,
Image quality 0-7 levels adjustable (0 is the best)
Recording Mode Boot up/Manual/Schedule/Alarm
Audio Audio input 4CH
Audio output 1CH
Compression G.726 , Speed 8KB/s
Alarm Input 4CH
Alarm Output 1CH
Serial Interface 1CH RS232 OR 1CH RS485
Wireless transmission Optional, 3G/4G,WCDMA,CDMA2000,TDD-LTE,FDD-LTE....
Position / G-sensor GPS optional ,built-in G-sensor,Playback of the route
Storage Storage maximum  1*2TB HDD, 1*256GB SD card
playback Video search by time, mode, etc to search
playback 4CH playback
2X, 4X,8X, 16X forward and backward
Safety management user password, admin password, support screen lock.
Expanding function TTS Support TTS voice broadcasting
Serial expansion Can support advertisement screen, PTZ, oil sensor, etc
Power and consumption power management wide voltage adaption, support timely open-shut, delay function.

Input voltage DC:+8V - +36V
Output voltage +12V@1.5A,+5V@1.5A
Power protection can automatically save the video when sudden power off to ensure the protection of the file.
consumption Working state<14W, idle<0.5W
Working environment Temperature -20℃ - +70℃
Humidity 20% - 80%
 HDD model Dimension 160mm*150mm*60mm
Weight Approx. 1.8KG (without HDD)
