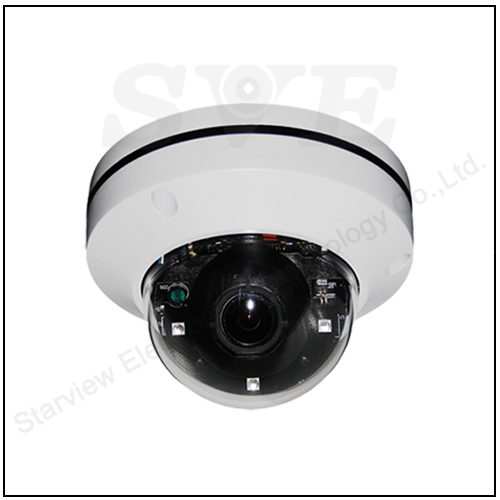

2MP HD Ahd Tvi Cvi 2 Inch Mini IR PTZ Camera
- 1/2.9" CMOS image sensor
- Full HD 2MP 1920(H) x1080 (V)
- Video Format 1080P/25fps; 1080P/30fps
- 20M IR distance
- Support AHD/CVI/TVI/CVBS 4 In output
- Coaxial contrlol PTZ, Video line control PTZ
- 350° horizontal rotation, 90° vertical range
- Horizontal speed 80°/sec
- White (black decoration) aluminum alloy (ADC)
- 2.8-8mm optical zoom lens
- Protection grade IP66
Technical specifications
| Model | SV-MSD20A1TAC |
| IMAGE SENSOR | 1/2.8" SONY 2.0 Megapixel CMOS Sensor |
| EFFECTIVE PIXEL | 1920(H)×1080(V) |
| SCANNING SYSTEM | Progressive Scan |
| SYNCHRONIZATION | Internal |
| ELECTRONIC SHUTTER | 1/25s~1/50,000s , 1/30s~1/60,000s |
| TV SYSTEM | PAL/NTSC |
| VIDEO FRAME RATE | 25fps/30fps@1080P |
| MIN. ILLUMINATION | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| VIDEO OUTPUT | 1 CH BNC AHD/TVI/CVI/CVBS High Definition Video Output |
| IR LED | Nano-tech IR LED: 42μ x 2pcs, IR Range: 20M |
| PAN /TILT RANGE | 0°~350°, Horizontal , 0°~90°, Vertifcal |
| PAN SPEED | PAN SPEED: 80°/s , TILT SPEED :45°/s |
| PRESETS | 255 |
| SCANNING MODE | Auto Pan/Pattern/Auto Tour |
| PTZ PROTOCOL | PELCO-D/PELCO-P |
| BAUD RATE | 2400/4800/9600/19200/38400 |
| FOCAL LENGTH | 2.8-8mm |
| APERTURE | F1.4 |
| FOCUS | AUTO |
| ZOOM | Motorized |
| DWDR | OFF/ON |
| DEFOG | OFF/ON |
| BACKLIGHT | OFF/BLC/HSBLC |
| WHITE BALANCE | ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB |
| DAY&NIGHT | EXT/AUTO/COLOR/B/W |
| NOISE REDUCTION | 2D NR/3D NR |
| MOTION DETECTION | OFF/ON |
| PRIVACY MASK | OFF/ON |
| OSD LANGUAGE | EN/CN/DE/FR/IT/ES/PL/RU/PT/NL/TR |
| PROTECTION | IP66 |
| POWER SUPPLY | DC12V±10% , Max 5W |
| WORKING ENVIRONMENT | -10°C~+50°C / Less than 95%RH (no condensation). |
| DIMENSION | ¢105mm x 69mm(H). |
