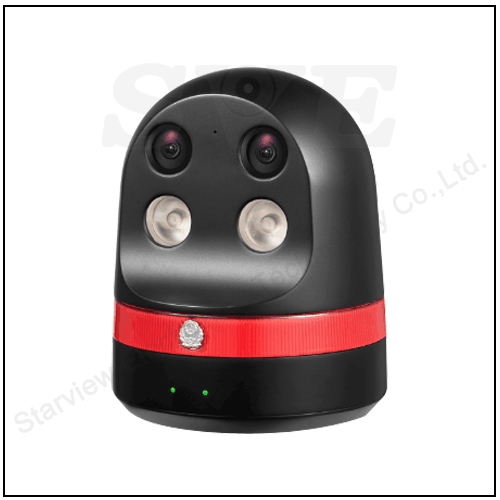

Vehicle Portable Field law enforcement instrument USB camera

  • 360 degrees of rotation
  • Far and near double lens
  • Wireless monitoring
  • The real time positioning of the Beidou +GPS


Model  SV-HDC1
Chip Set Ambarella A7L50
Angle of rotation 360°
Camera lens Double lens (far focal + near focal)
Horizontal field angle Horizontal field angle of a near focal lens≥98°
Video performance The resolution of the near focus lens is 1920 x 1080 (850 lines) and 1280 x 720 (600 lines)
The resolution of the zoom lens is 1280 x 720 (600 lines).
The frame rate of the far focus and the near focus is 30 frames
Photo pixel number The number of pixels in the near focus lens is 1920 x 1080 (800 lines) and 1280 x 720 (650 lines).
The number of pixels in the far focus lens is 1280 x 720 (650 lines).
Interface type 1 USB interfaces, 1 HDMI interfaces, and 1 charging interfaces
Power Supply Built-in 10000mAh lithium battery
Charging mode External 9V DC adapter, 9V car charger
Storage medium Built-in TF card, marking 32G, can be expanded according to demand
Shooting time 9 hour continuous video (maximum resolution)
Installation method Magnetically fixed technology that can move at any time
Auxiliary light source 2 infrared lights
Protection grade IP66
Satellite positioning Real time positioning of Beidou +GPS
G-sensor Support
Wireless transmission Support

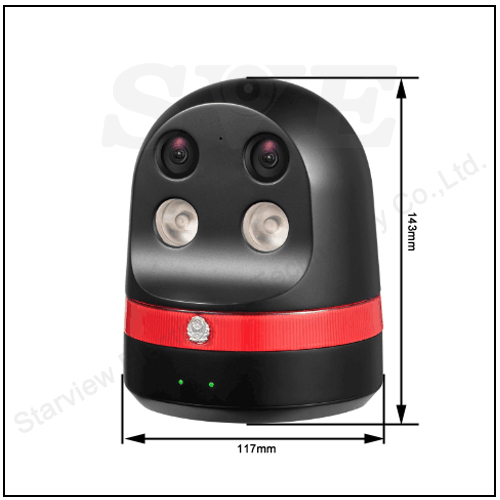

Shape size Diameter: 117mm  Height: 143mm
Weight 800g
Wireless control platform
LCD 8 Inch Touch Screen
Screen resolution 1280×800
Platform Android Platform
processor MT6735 8 core processor
Memory 2GB
Storage capacity 32GB
4G network 4G all Netcom (telecommunication 4G cannot call)
Camera Preposition 2 million pixels, postposition 5 million pixels
