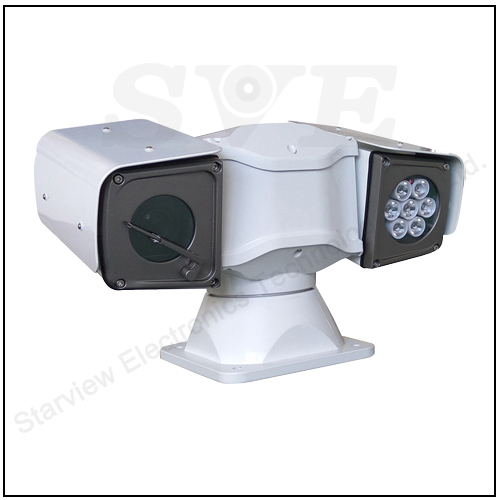

HD IP PTZ Vehicle camera(W)

  • 30X 1080P@60fps
  • Working Temperature:-35° ~ +65°
  • 360°continuous pan,-90°~90° tilt with"AUTO FLIP"
  • 0°~60°/s pan speed, 0°~40°/s tilt speed
  • 256 presets, ±0.1° preset accuracy
  • Fastest Speed-up & Speed-down for tracking
  • IR Night Vision Distance:60-80meters
  • 6 Sequence with up to 18 presets
  • Built-in Wiper,Optional 1K10 vandal proof
SVN-TW10YS
Camera
Image Sensor 1/2.8 Progressive Scan CMOS Sensor
effective pixels 1920*1080@60fps
min illumination Colour:0.005Lux@F1.6,B/W:0.0005Lux@F1.6
White balance AUTO/MANUAL/ATW/INDOOR/OUTDOOR
Focal length F=4.5-135mm(F1.6 to 4.4)
Optical Zoom 30X
view angle 67.8°~2.77°
AGC AUTO/MANUAL
S/N Ratio ≥50dB
WDR Support
Shutter time Shutter time
PTZ Function
Pan preset speed 100°/s
Tilt preset speed 60°/s
Pan control speed 0°~60°/S
Tilt control speed 0°~40°/S
Pan range 360°endless rotation
Tilt range -90° ~ +90°
Preset positions 256 positions  8 tracking
Control Way RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional
Relative Humidity Less than 90%
IP Grade IP66
Working Temperature -35° ~ +65°
Impact resistance requirements ≥4G
Wiper Support
Installation Variety of installation according to the environment
Weight 7kg
Network parameters
Video Compression H.264/H.265
Audio Compression (Optional) G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726
Compression output rate 32Kbps—12Mbps
Support Protocol TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UpnP, SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional),GB28181
Interface Protocol ONVIF/PSIA/CGI/ISAPI
Communication Protocol PelcoD-P Protocol
Storage Function Support MicroSD storage
Intelligent Arlarm Motion detection, mask alarm, full memory, memory mistake
General function Dual stream, heartbeat, password protection
