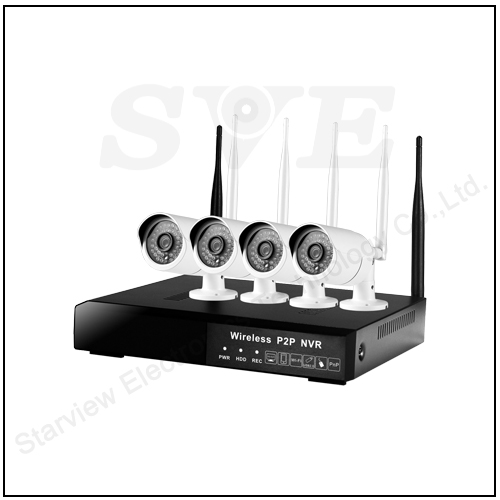

4CH 2.0MP H.265 WIFI NVR Kit
H.265 WIFI NVR Kit2MP Wifi NVR KitWireless IP CameraNetwork IP Camera

Key Features
  • One-step remote monitoring can be worked well based on cloud service, simple operation steps ensures plug and play.
  • Embedded wifi module, support 802.11b/g/n protocol, 300Mbps ensures short time delay for 4/8ch 2.0MP input.
  • IP Camera auto connecting based on wireless technology, simple installation without IP cable arranging.
  • Plug and play, picture shows automatically when power turned on.
  • Professional security wifi module with strong signal penetration ability, max distance can reach to 1000M.
  • Support remote monitoring for phone(iPhone,Android), PAD, PC.
  • Support video viewing, playback, backup.
  • USB multiplexing technology support USB mouse, backup, upgrading.
  • Support VGA and HDMI output simultaneously, HDMI for 2.0MP max.
  • Strong network service(DHCP, PPPOE, DNS, NTP, UPNP, IP search), complete support (WEB, SDK), customized service can support.
  • Unique watch dog function ensures circuit protection.

Model SVN-NK04WH6200
NVR parameters
System
Main processor MSR620Q
Operation System Embedded LINUX
system resource Simultaneous multi-channel real-time recording, real-time playback, multi-channel multi-person network operation, USB backup
Interface
Operation interface 24-bit true color graphical menu interface with mouse operation
Picture Display 1/4
Image coding BaseLine Profile / Main Profile / High Profile
Playback Quality 1080P/960P/720P/960H/D1/360P/VGA
Video Input 4ch 2.0MP
Motion Detection 396 (22*18) detection areas can be set per screen; sensitivity can be set
Audio
Audio compression G711.A,G711.U
monitor Support
Video and playback
Recording Type Manual, Timing, Motion detection, Alarm
Playback Max 4ch 2.0MP
Recorder Check Time/date/issue/channel search
Backup Type USB, removable hard disk

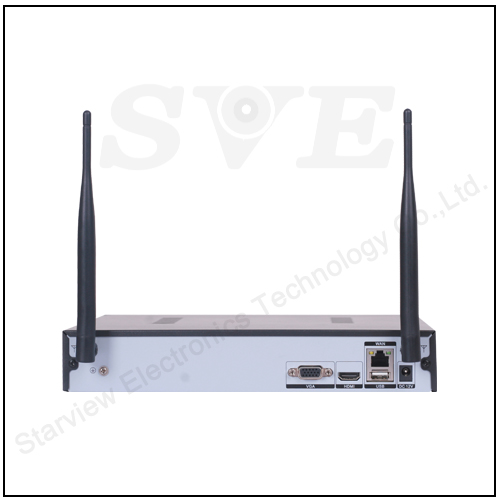

Interface
Video Output 1ch VGA, 1ch HDMI
Audio Output 1ch
Ethernet 1*RJ45 10M/100M auto adjustable
USB Interface 2*USB2.0
SATA 1 (Max.6T )
Antenna 2CH 150Mbp Antenna
General
Power Supply DC 12V 2A
Net Weight 1.0Kg(Without hard disk)
Working Humidity 10%-90%
Working Temperature -10℃-+55℃
Dimension 483*89*433mm

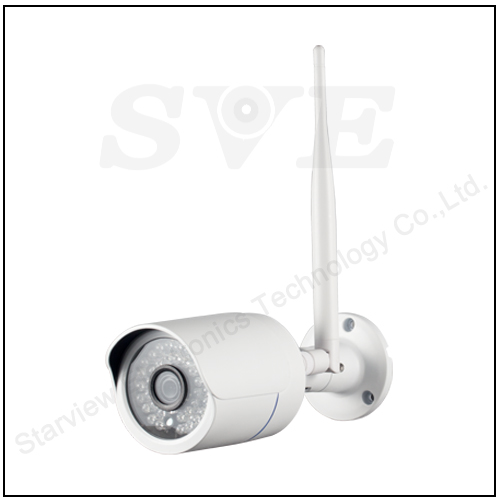

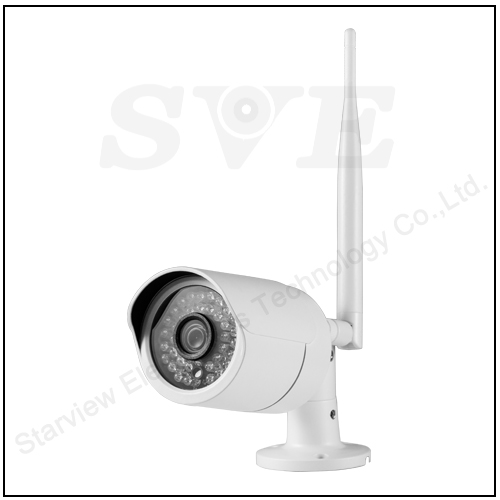

WiFi IPC
Effective Pixels 2.0MP,1920(H)*1080(V)
Sensor 1/27” CMOS
Min. Illumination Color:0.05Lux@F1.2; B/W: 0.01Lux@F1.2
Electronic Shutter NTSC: 1/30---1/10000S; PAL: 1/25---1/10000S
Day/Night Switch ICR
Video compression H.265
H.265 Coding type PROFILE_BASELINE
Image Format 1920*1080(1080P)
Frame Rate 50Hz:15fps/60Hz:15fps
Privacy Mask 4 area
Image Setting brightness/ contrast/  saturation/gain/ shutter/ white balance
Day/Night Support
Smart Alarm motion detection/shelter alarm/IP cable no connection/IP address conflict
Protocol TCP/IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP, RTSP
General Function double stream/ heartbeat/ mirror/ shelter / anonymous access
Ethernet 1*RJ-45 ( 10/100Base-T )
Wifi Antenna Support 8188EUS, etc.
Lens 4mm
Power Supply DC12V 1A
Power Consumption ≤6W
Working Environment -10℃~50℃,30%~80%RH
Dimension 175(L)*66(W)*66(H)mm
Net Weight 500g

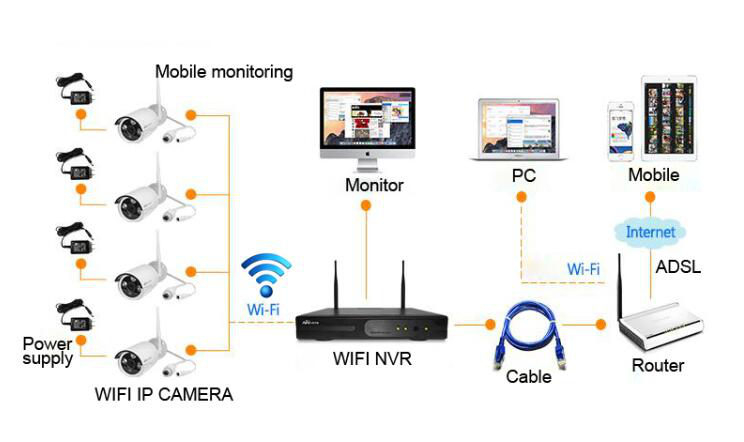

schematic diagram
