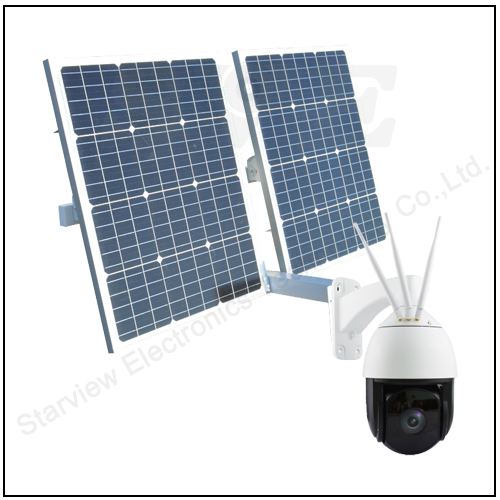

Solar Power Outdoor Wifi/4G 20X 1080P IP camera
Solar Power Outdoor Camera4G Wifi 20X 1080P IP Camera

Key Features
  • Stream:1920×1080,1280*720 @1-25(30)fps;
  • Support the P2P or Android,IOS.Onvif2.4
  • 5pcs High quality array LEDs,3pcs Laser LEDs,auto-switch to long/middle/close distance focus,200M IR distance.
  • 360 °continued rotation,Vertical Range -10°~90°,manual pan speed 0.5~60°/S,manual tilt speed 0.5~60°/S.
  • Network:2G:GPRS/EDGE;3G:WCDMA/TD-CDMA;4G: FDD-LTE/TDD-LTE; Wi-Fi:802.11b/g/n.
  • A grade monocrystalline silicon solar panel,120W/18V(two boards)
  • Lithium battery can be equipped with 40AH/60AH/80AH
  • Maximum output: 12V5A,
  • Ordinary camera can supply at least 40~120 hours.
  • Battery-specific waterproof box, with switch, aluminum alloy bracket
  • 2pcs camera-specific DC interface 7.Suitable for 4G speed dome camera, or ordinary IP camera (can be transmitted over wireless bridges)

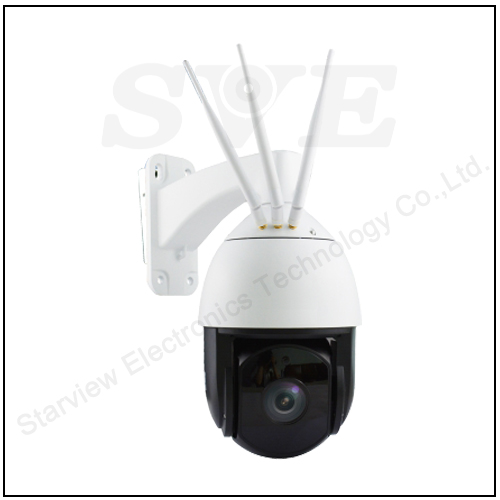

Name/Description HD IP 6" 4G wifi PTZ Camera
Camera
Image Sensor 1/2.9" 2.0Mpixes Progressive Scan Sony 323 CMOS
Effective Pixels 2.0 Megapicels
Min.illumination Color:0.05lux,0 lux with IR
Zoom 20X optical,F=4.7-94mm
Day/Night Auto ICR
WDR D-WDR
OSD Display OSD name,time,date,information overlay
IR
Luminary 8PCS infrared lights
Night vision Distance 200m
Lamp control CDS Control
Network
Video Compression H.265/H.264
Streams Dual streams
Frame Rate Main stream:1920*1080,1280*960,1280*720,D1(704*576),1-25(30)fps
Sub-stream:D1(704*576),VGA(640*480),640*360,568*320,CIF
Bitrate CBR/VBR,bitrate:200-8000Kbps
P2P Android,IOS(iCute Cam)
Protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP
Motion detect Support
Privacy Zone masking Support
Onvif Onvif2.4
Network 10/100M Base-TX Ethemet,RJ45 Connector
2G GPRS/EDGE(900/1800)
3G WCDMA(Band1/8)/TD-CDMA(Band 34/39)
4G FDD-LTE(Band 1/3)/TDD-LTE(Band 38/39/40/41)
Wifi 802.11b/g/n
Mini SD Card Support(Up to 128GB)
Alarm I/O N/A
Audio I/O N/A
CVBS Output N/A
Reset Button N/A

Name solar panel iptional for all 4G wifi Camera or IP PTZ Camera
Description SVN120W-40A/H SVN120W-60A/H SVN120W-80A/H
Solar panels
Maximum Power(Pmax) 120W(60W*2)
Maximum Power Voltage(Vmp) 18V
Maximum Power Current(lmp) 1.66A
Open-circuit Voltage(Voc) 21.4V
Short-circuit Current(ISC) 1.83A
Cell Type A grade monocrystalline
No.of cells 72(4*9*2)
Dimensions 670*535*25mm(single solar panel)
Weight 3.8kg (single solar panel)
Front Glass 3.2mm,Anti-Reflection Coationg,High Transmission,Tempered Glass
Frame Aluminum Alloy
Battery
Nominal capacity 40AH 60AH 80AH
Out voltage DC12V(2 DC interfaces)
Output Current ≤5A
intermal Resistance ≤300mΩ
Battery charge Standtd Charge:2A quick Charge:4A
Fully charged time 4H 8H 12-14H
Cycle life >500times
Overcharge protection DC12.6V
over discharge protection DC9V
Charging Temperature 0℃~45℃
Discharging Temperature -20℃~60℃
Storage Temperature -20℃~40℃
weight 3Kg 4.5Kg 6Kg
Power supplu time Power supply time=(Battery capacity x out voltage)/Camera Power
Max Power/Average power(Calculated with 4G Camera Power ) 22h/31h 33h/46h 44h/61h
Bracket
Installation method Wall mounted
Dimensions 1100*700*400mm
Weight 5Kg
Other Packing list solar panels *2 Lithium Battery *1 Bracket *1 Expansion Screw*4
Total weight 15.6Kg 17.1Kg 18.6Kg
