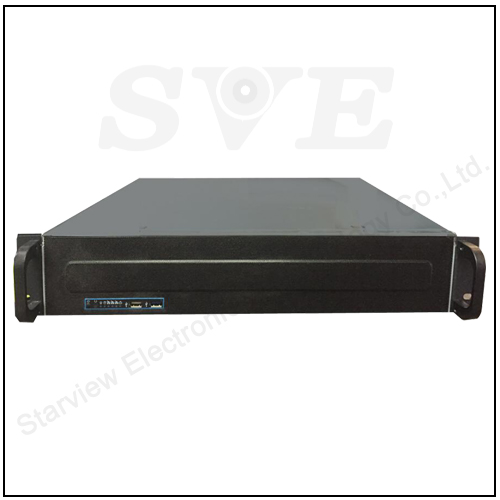

36CH AI NVR with 4ch Face Comparison
Key Features
- 36CH full real-time network video recorder, 2U NVR case
- H.265, H.264 dual-stream decoding, embedded Linux operation system
- Built-in face recognition algorithm
- Support sync video recording, remote monitoring, backup
- Support VGA/HDMI sync output, support 2160P HD preview
- Support amplification preview and playback video image
- Standard ONVIF, RTSP, GB28181 protocol
- Support alarm capture, alarm email sending
- Support DDNS, EMAIL, UPNP, NTP, P2P,etc
- Support WEB, mobile surveillance, Client, CMS monitoring
- Support external alarm, dual network port, bidirectional talk
- Support grouping disk quota, and disk inventory two storage pattern, distribute different video storage capacity or cycle according to different channels
- Support IPC centralized management, including IPC parameters configuration, import and export information , information real time acquisition and upgrade, etc
- Dual Gigabit network card, supporting dual network IP settings and other applications
- Support IP filter, watermark
- Support channel grouping, preview round touring
- Support network detection（network flow monitoring, network wireshark, network clear）function,etc
- Support max 36CH 2MP sync playback and multi-channel sync play backward
- Support instant playback
- The new UI interface, support a key to open the video recording
- Support dual password authentication and zero channel function
| Video | |
| Network video input | 36CH |
| Network access bandwidth | 216Mbps |
| Video compression | H.265/H.264 /MJPEG |
| Video output | 1 CH VGA output (1920×1080@60Hz 1280×1024@60Hz) |
| HDMI 1 output (1920×1080@60HZ,1280×1024@60HZ) | |
| HDMI HD output (3840×2160@30HZ,1920×1080@60HZ,1280×1024@60HZ) | |
| Display mode | Sync output, heterogenous output |
| Video preview mode | 36CH preview |
| Video bit rate | 16-8000Kbps |
| Video resolution | 4K/5MP/4MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Image display | 1/4/6/8/9/25/36 image display |
| Snapshot mode | Support timing snapshot, manual snapshot, JPEG format |
| Motion detection | Support 396(22*18) surveyed area can be set in every screen and multi-level sensitivity adjustable |
| Privacy mask | Support 4 zones |
| Face / Intelligent Functions | |
| Real-time preview | Support face capture results display, comparison results display |
| Access ability | Max. support 4CH face recognition comparison camera or 4CH face capture camera |
| Face database | Support built-in≤5000 faces; support B/W list layout control, face search face to query images and video documents |
| B/W list layout control | Support face B/W list alarm linkage |
| Intelligent functions | Face comparison、target counting、object detection、erea detection、cross line detection. etc |
| Audio | |
| Audio compression | G.711u |
| Audio input | 1 CH RCA port (IPC complex audio input) |
| Audio output | 1 CH RCA port |
| Bidirectional talk input | Bidirectional talk, RCA port |
| Video Recording and Playback | |
| Video frame rate | 1-30fps |
| Record mode | Manual/external alarm/MD/timing/intelligent analysis alarm |
| Playback ability | Support 4CH 4K/ 5MP/ 4MP, 9 CH 3M，36CH 2MP record sync playback |
| Playback mode | Instant playback, local video, local image, external file playback |
| Record search | Time, calendar, channel search, event search, (ANR, regular video, motion detection video, alarm video, intelligent detection video) |
| Video playback | Start, stop, normal play, back play, forward 30 seconds, backward 30 seconds, fast play(1-256X), slow play(1-1/32X), frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time bar precise playback |
| Storage and Backup | |
| Storage interface | 4*SATA, 1*E-SATA |
| HDD capacity | Single max.8TB |
| Disk grouping | According video channels to set HDD quantity |
| Disk quota | According video channels to set HDD storage capacity |
| Backup location | Local, network, NAS, IPSAN |
| Array type | / |
| Backup method | USB mobile hard disk, U disk, network backup |
| Functions | |
| Network protocol | TCP/IP,HTTP,HTTPS,DDNS,SMTP(SSL),DHCP,PPPoE,UPnP,NTP,P2P |
| Interface protocol | ONVIF, RTSP, GB28181 |
| Protocol port | ONVIF/RTSP/HTTP/HTTPS/RTMP port customized |
| Mobile surveillance | Support IOS, Android |
| Internet explorer | Support IE, Chrome, Firefox, Safari |
| IPC timing | Manual/auto/timing/reconnect timing to IPC timing |
| IPC timing | Send email, audible warning（buzzer), alarm on monitor, upload to center, record, snapshot, preview, PTZ linkage |
| Network detection | Flow monitoring, network wireshark, network test |
| User management | User add, delete, modify, permission management |
| Auxiliary users(secondary password protection) | |
| Manage IPC | Modify IPC parameters, IPC upgrade |
| Other | / |

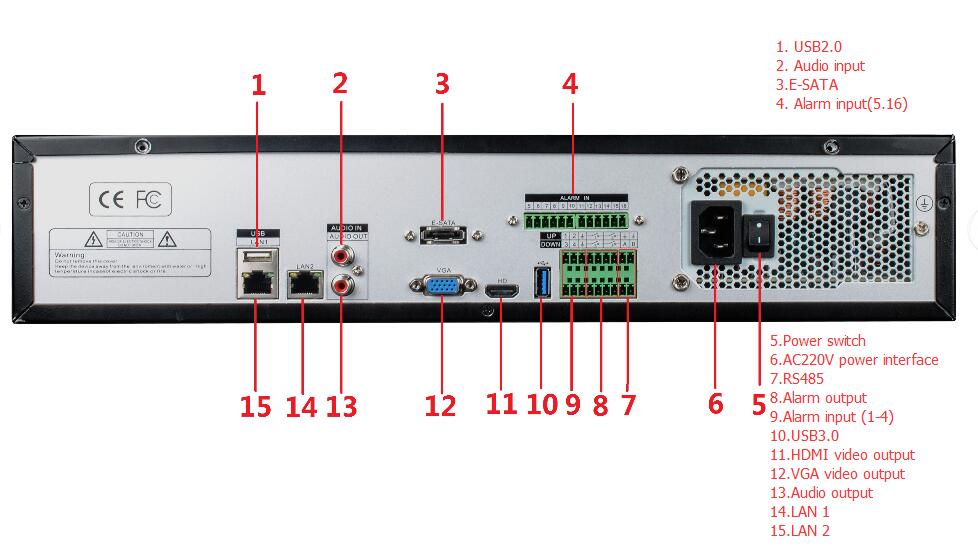

| Ext Interface | |
| Network interface | 2 *RJ45 100M /1000M adaptive Ethernet port |
| POE interface | / |
| Alarm input | 4CH |
| Alarm output | 4CH |
| RS-485 | 1CH |
| USB port | Front panel: 1 USB 2.0 Rear panel: 1 USB 2.0, 1 USB 3.0 |
| General | |
| Power supply | AC100～240V,50Hz～60Hz（Power plug specification optional） |
| Power consumption | ≤35W（Without HDD） |
| Operation temperature/ humidity | -10°C ~ 55°C/10﹪-90﹪ |
| Dimension(mm) | 440(L)x432(W)x90(H)mm |
| Weight/PCS(g) (without HDD) | 7Kg（Without HDD） |
