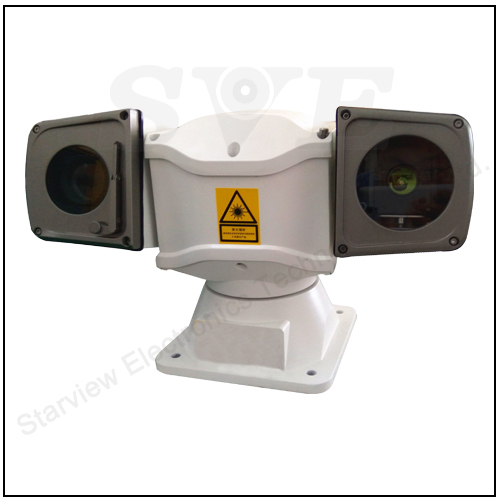

4MP 38X 1000M Laser Vehicle IP PTZ Camera
44X 1000M Laser Vehicle IP PTZ Camera1080P Vehicle IP PTZ Camera Vehicle IP PTZ Camera

Features:
  • 38X 4MP(2560*1520) Super starlight Image Sensor
  • Working Temperature:-35° ~ +65°
  • 360°continuous pan,-90°~90° tilt with"AUTO FLIP"
  • 0°~60°/s pan speed, 0°~40°/s tilt speed
  • 256 presets, ±0.1° preset accuracy
  • Fastest Speed-up & Speed-down for tracking
  • 6 Sequence with up to 18 presets
  • Unique design to fulfill Anti-fog and defogging
  • Defogging /defrosting function(High quality heating parts)
  • Vertical motor self lock not to move after power off
  • Face Comparison, Recognition, Motorized, Non-Motorized, Pedestrian Target Classification Detection & Capture
  • Laser distance:1000m
SVN-38TW10SL10W
Camera
Image Sensor 1/1.8 Progressive Scan Super Starlight Sensor
effective pixels 4MP(2560*1520)
min illumination Colour:0.003Lux@F1.2,B/W:0.001Lux@F1.2
White balance AUTO/MANUAL/ATW/INDOOR/OUTDOOR
Focal length F=6-228mm(F1.2 to 4.6)
Optical Zoom 38X
view angle 59.47°~2.20°
AGC AUTO/MANUAL
S/N Ratio ≥50dB
WDR 120dB
Defog Optical Defog
Anti-shake Support (gyro stabilization)
Shutter time Auto/Manual, 1~1/100000s
PTZ Function
Pan preset speed 100°/s
Tilt preset speed 60°/s
Pan control speed 0°~60°/S
Tilt control speed 0°~40°/S
Pan range 360°endless rotation
Tilt range -90° ~ +90°
Preset positions 256 positions  8 tracking
Control Way RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optiona
Relative Humidity Less than 90%
IP Grade IP66
Working Temperature -35° ~ +65°
Power Supply DC12V3A
Impact resistance requirements ≥4G
Wiper Support
Installation Variety of installation according to the environment
Weight 7kg
Network
Video Compression H.264/H.265/MJPEG
Main Stream 2688*1520, 2560*1440, 1920*1080, 1280*720, 640*360, 720*576(D1), 704*288(2CIF), 352*288(CIF);
Second stream 1920*1080, 1280*720, 640*360, 720*576(D1), 704*288(2CIF),352*288(CIF);
Third Stream 640*360, 720*576(D1), 704*288(2CIF), 352*288(CIF);
Audio Compression(Optional) G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726
Compression output rate 32Kbps—12Mbps
Support Protocol TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UpnP, SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional),GB28181
Communication Protocol PelcoD-P Protocol
Storage Function Support MicroSD storage
Intelligent function Face Comparison(16), Recognition, Motorized, Non-Motorized, Pedestrian Target Classification Detection & Capture

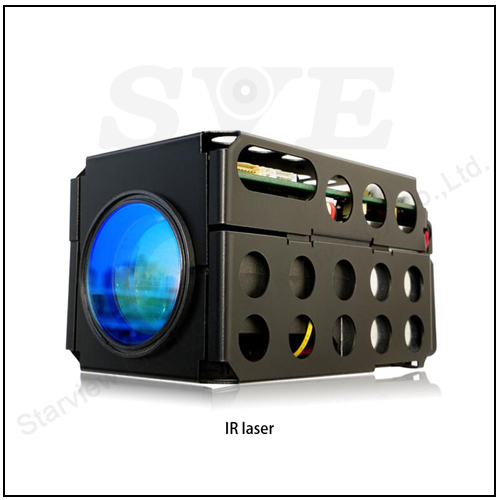

Laser
Distance 1000m
wavelength 808±10nm
Laser chip power 7.0W-8.0W
