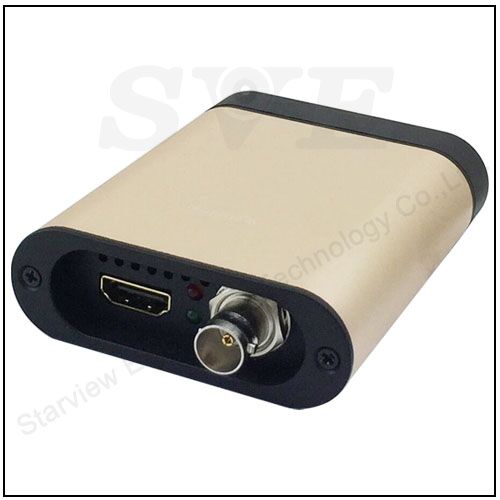

USB3.0 HDMI/SDI Video Capture Card HD Video Grabber

Product Feature

  1. Captures HDMI or 3G-SDI/HD-SDI video stream
  2. resolutions up to 1920×1080/ 60 FPS
  3. UVC compatible, YUV422 video output
  4. UAC compatible, simultaneous captured with video.
  5. Real PnP, No driver needed
  6. Support Windows XP, 7, 8.1, 10; Mac OS, Linux
  7. USB power supply, No external power required.
  8. Size:70mm x 100mm x 24mm

Spec. Feature

  1. USB3.0,360MB/s transmit band width.
  2. Video processed by capture card, no need occupy CPU
  3. Auto detect input video format:1920x1080, 1920x960, 1680x1050, 1280x720, 1024x768, 960x540, 850x480,720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360
  4. Brightness, contrast, Saturation, color Hue adjustment.
  5. Support multi-device in one PC.
  6. Firmware can be updated through USB port.

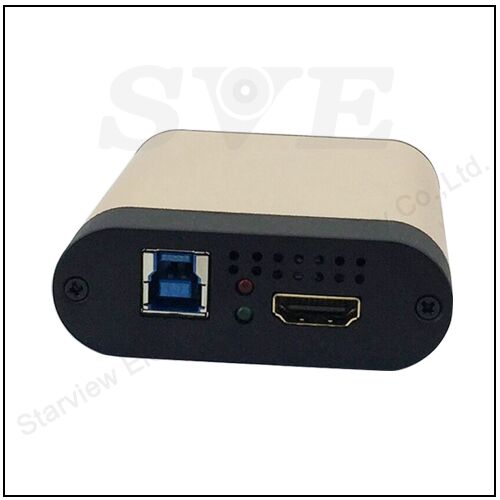

USB interface USB3.0,360MB/s Bandwidth

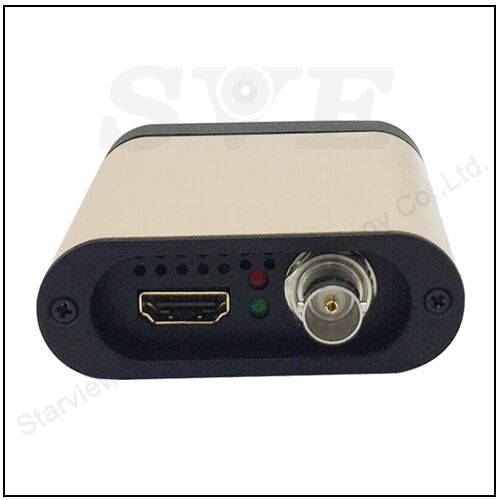

Input interface 1 BNC,1 HDMI
Video input 1 HD/3G-SDI video signal,1 1080P60 HDMI HD video signal
Audio input SDI/HDMI embedded
SDI input format SD/HD/3G-SDI,SMPTE-259/274/296/372/424/425/292 compliance
HDMI input format HDMI 1.4a compliance,Support 1080P/60HZ 8-bit,(RGB,YUV)
Transmission peed HDMI:165MHZ,SDI:1.485Gb/s,2.97Gb/s
Video capture UVC (USB video class) compliance
Audio capture UAC (USB audio class) compliance
Output color space YUY2
OS Windows XP, 7, 8.1, 10(32bit & 64bit),Mac OS, Linux
Compatible software Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.…
Compatible development interface DirectShow (Windows), DirectSound (Windows)
Update Firmware can be updated by USB port
Dimension 70x100x24mm
Consumption <= 3.5 W
Working Temperature 0-50 °
Storage temperature -20-70 °
Storage humidity 5%-90%

Standard accessories

USB 3.0 cable 1pc


The USB3.0 transmitting bandwidth is relative with PC performance, the real bandwidth may be lower than the figure indicated in above table
