Hot Products:8.0MP 2.5 inch IP HD IR MINI Speed Dome Camera



1. System Function

2.5 inch Mini speed dome, beautiful appearance;Friendly quick install structure design,easier building.
Adopt high-performance sensor, H.265 compression format,resolution achieve 3840*2160.
Support ONVIF protocol.
Support English IE interface and operation tips function, user friendly interface.
3 class lightning proof,support for lightning protection, anti surge, anti surge.
Protection grade: IP66.

2.  Infrared function

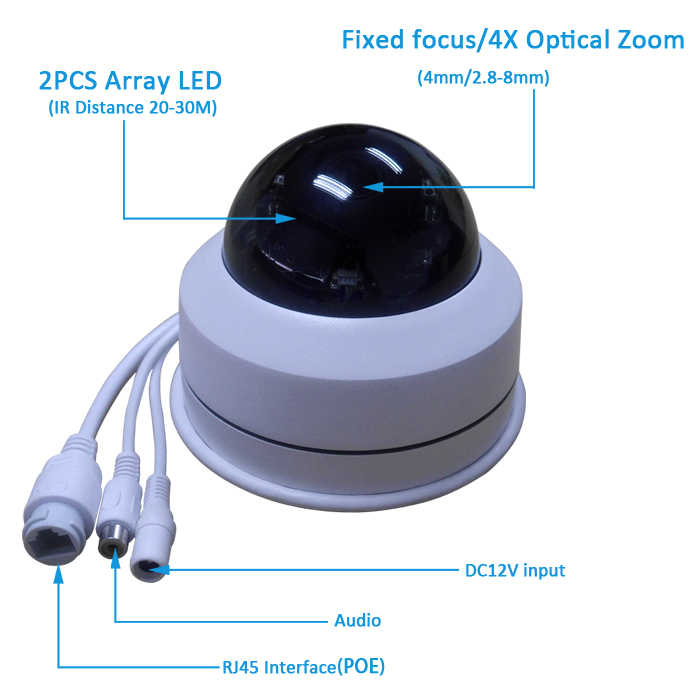

2pcs Array Led,IR Distance 20-30M,minimum Illumination:0 Lux
The constant current circuit design,Infrared ages can be reach 30 thousand hours.

3.  IP Zoom camera function

Adopt high-performance Hisilicon platform, stable and reliable performance.
Effective pixels 8.0 million pixels (8MP),3840*2160.
Support auto iris,auto focus, AWB and BLC.
Support digital WDR function.
Support two-way audio,AAC/G.711  compression,support audio-video synchronization .
Built-in microphone and audio output, remote monitoring, external speaker can achieve two-way voice intercom
4mm or 4X(2.8-8mm) optical zoom (optional).

4. IP Network function

Support Ethernet remote control.

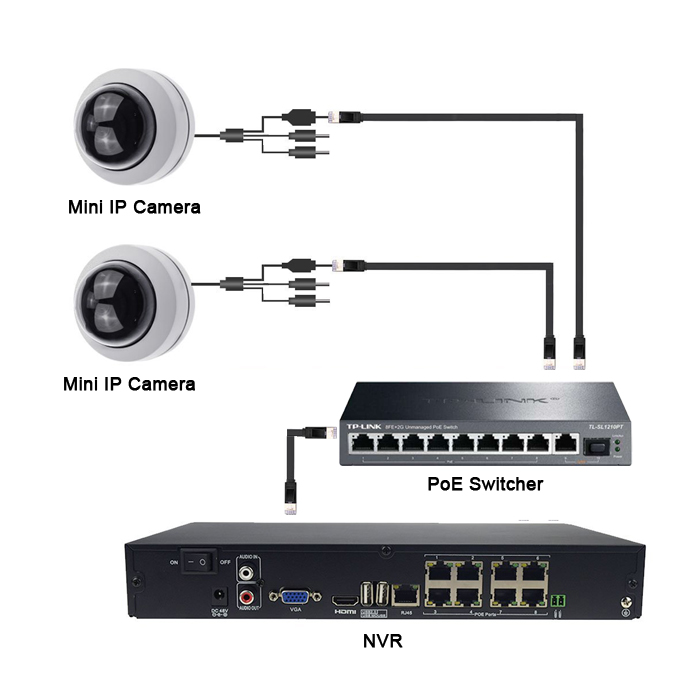

You can view real-time image and control PTZ rotation through IE browser,PC  Client softwar,and NVR.
Support two levels of user rights management, support for authorized users and passwords, support HTTPS encryption and network access control.
Support H.265/H.264 compression format,dual stream output.
WEB configure, real time recording transmission and playback, Free client software supported, SDK for customer software development.
l Support multi-protocols:IPv4,HTTP,HTTPS,Qos,FTP,SMTP,UPnP,SNMP, DNS,DDNS,NTP,RTSP, RTP,TCP/IP,DHCP,PPPoE

5. PTZ Control Function

Horizontal rotation 355°, tilt rotation 85°,control speed 70°/s
128 presets,2 automatic cruise routes, each cruise supports 16 presets.
1 left and right scan,1 auto level scan, Idle running functions.
Support power off  memory function, When the camera is powered down, it will automatically resume the running state or position before the power is cut off.

Specification


Model Number SVN- MDA25804 SVN-MDA25804X
Camera Image Sensor: 1/2.8" SONY CMOS

Effective Pixels: 8.0MP pixels3840*2160,H.265/H.264
Focal Length: 4mm 4X(2.8-8mm) optical zoom
Min. Illumination: Color: 0.01Lux@(F1.6, AGC ON), B/W: 0.001Lux@(F1.6, AGC ON)
  0Lux with IR
White Balance: Auto/Manual
AGC: Auto/Manual
Focus Mode: Auto/Manual/SemiAuto
Day & Night: IR Cut Filter,Auto,Color,B/w
DNR Low/Middle/High/Off

Back light Compensation: ON/OFF
DWDR: Support, on/off

Video format: 8MP/20fps,6MP/30fps,5MP/30fps,3MP/30fps,1080P/60fps
S/N Ratio: 50dB
Pan/Tilt Pan / Tilt Range: Pan: 355° Continuous Rotation; Tilt: 5° ~ 90°
Rotationt Speed:  Rotation Speed: 0.5-70° /s
Proportional Zoom: support
Number of Presets: 128
PTZ functionl: 2 cruises,1 left and right scan,1 auto level scan
 Idle running functions Yes
 Power off memory function: Yes
IP Network function Net Interface RJ45 Ethernet interface,Support 10M/100M
Image Compression: H.265/H.264
Dual Rate 8MP+D1
Audio AAC/G.711 compression,two-way audio
Network Protocols: IPv4, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS,DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
Client LMS
ONVIF support Onvif Protocol
Business Function Support WEB, real-time video transmission; and motion detection
IR Function   IR Lamp   2 High power array infrared LED
  IR Distance   20-30M
  Infrared LED on   Auto
General Protocols: Pelco-P, Pelco-D, self-adaptive
Working Temperature:  -20°C~60°C
Humidity: ≤90%Non- condensing
Waterproof grade:  IP66

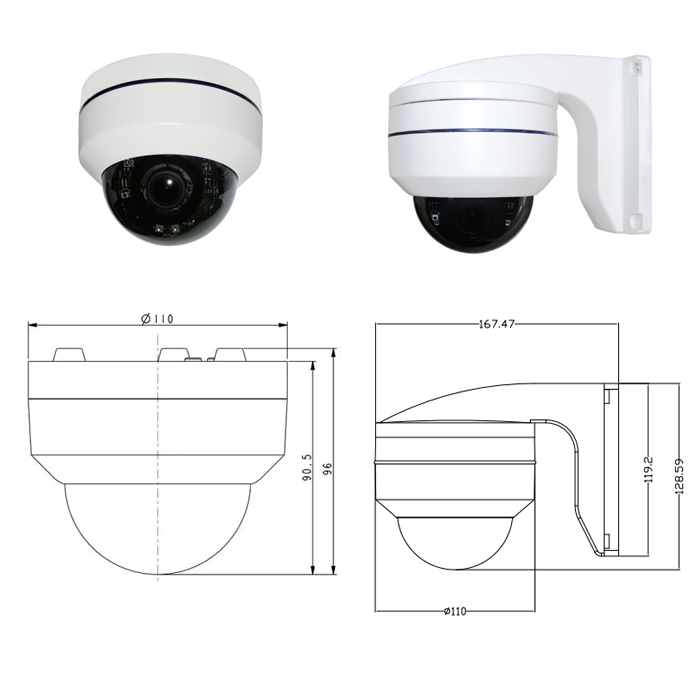

Package Dimension: 132x132x115mm
Weight (approx.): 650g

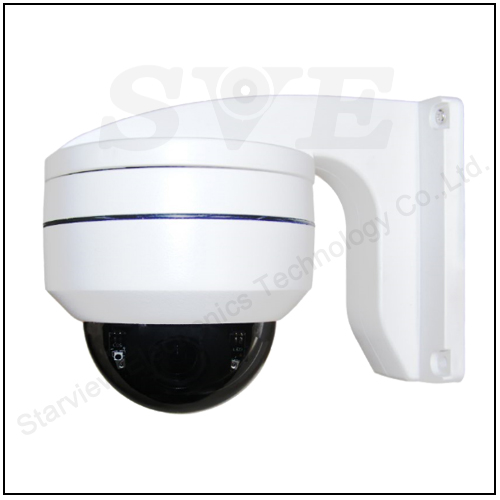

Mount Option: Ceiling mount,Wall mount
Power: DC12V/1A (±10%), 10W
Accessories: Installation manual ,  accessories bag
