Model. |
SVN-3304K60F |
|
Sensor |
1/1.8" CMOS Sensor |
|
Total Pixel(MP) |
3840 (H)x 2160 (V) = 8.29M Pixels |
|
Effective Pixel(MP) |
3840 (H)x 2160 (V) = 8.29M Pixels |
|
SDI Output Resolution |
1080p@50/60fps,2160p@30/25fps,2160p@60/50fps |
|
HDMI Output Resolution |
1080p@50/60fps,2160p@30/25fps,2160p@60/50fps |
|
Output Format |
(1080p Support HD/EX-SDI),(2160P Support EX-SDI) |
|
Lens |
C-CS Auto Iris |
|
Menu |
Support Keys Function Menu |
|
485/UART |
Default 485 |
|
Minimum Illumination(LUX) |
Color 0.59 lux/ B&W 0.33lux |
|
IRIS |
Auto/Fixed |
|
DEGE DET |
ON/OFF |
|
Exposure |
Brightness/Electronic Shutter/Sens-up/ AGC threshold adjustment |
|
Day&Night |
Auto(ICR)/Color/B&W/External |
|
Color |
AWB mode/Color Concentration adjustment |
|
3D-DNR |
OFF/Low/Middle/High |
|
Image |
Sharpness/Gamma/Flip/Mirror/Digital Zoom/ACE/DEFOG/Privacy Mask |
|
System |
Communication Protocol/Output Frame Rate/Video Range/Color Format/Audio Format/Color Bar Signal/Camera ID/Reset/Language |
|
Power Supply(V) |
DC 12V+ 10% |
|
Work Current(mA) |
620mA |
|
Work Temperature(ºC) |
-20°C~ +80°C /0% ~ 90% RH |
|

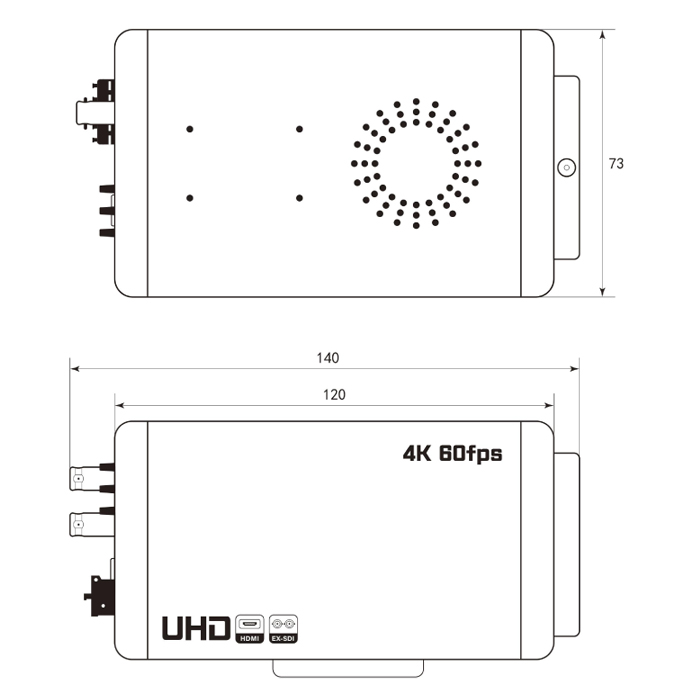

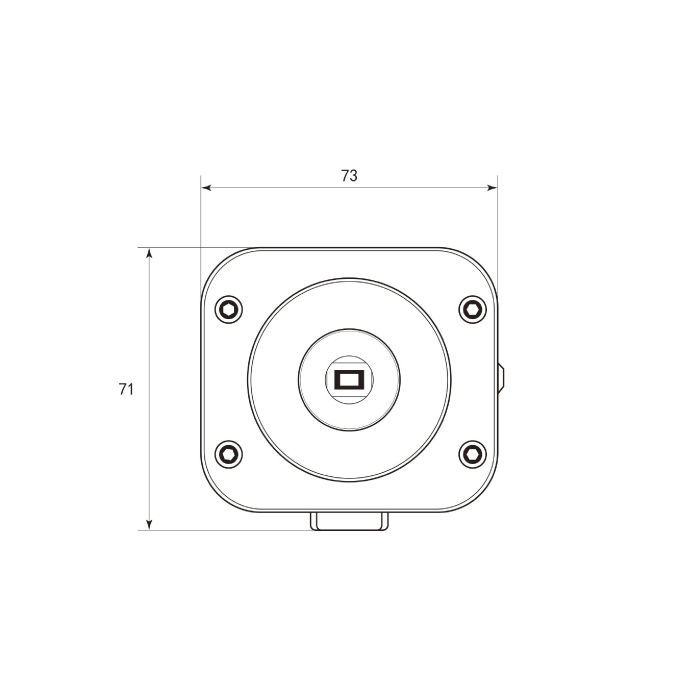

Size(mm) |
73(W) x 71(H) x 140(L) mm |
|
Installation |
Positive/Reverse/ (1/4"Screw holes) |
|
Weight(g) |
0.42Kg |
