4G LTE Wireless 2.0MP 1080P license plate recognition anpr LPR capture reader system for Parking LPR IP Camera

Overview
The latest plate recognizing HD LPR camera adapting to complicated lighting conditions achieve more than 98% plate recognition rates with advanced plate recognition algorithms. It is widely applied in many countries at the exits/entrances of parking lots, car 4S stores, highways as well as checking stations. Free SDK is offered for plate recognition system integration.

Product features
  • Embedded intelligent algorithms for best viewing license plate
  • WDR adjust,HLC(highlight compression) function
  • 1-3 lanes surveillance. 6 traffic modes selectable: 30KM/H-180KM/H
  • With 1.8 Inch LCD display menu.
  • support auto snapshot number plates JPEG image with 128G TF Card(Micro SD Card)
  • ONVIF protocol,GB28181 protocol, compatible with main NVR
  • Easy setting: no need professionals, no need client software

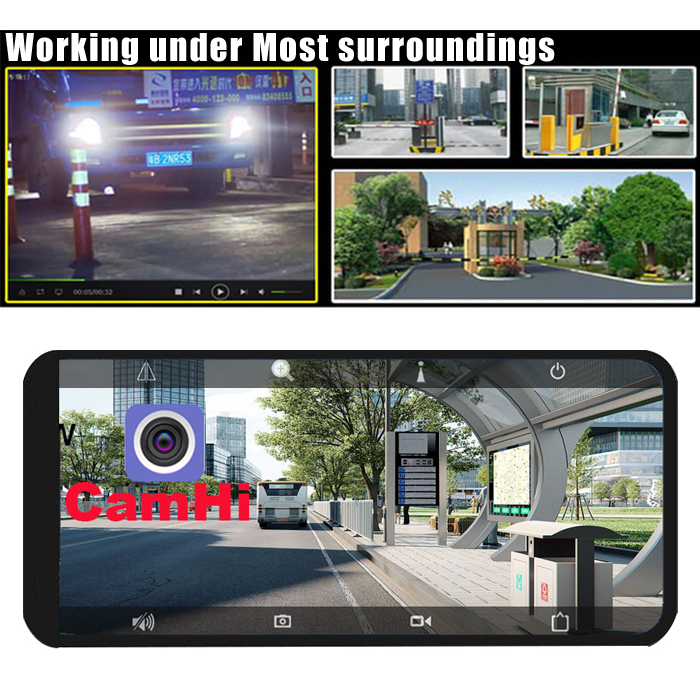

  • Support Camhi App and FTP upload
Technical parameters
3G/4G
3G/4G network standard 4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE
Bands B1/B3/B7/B20/B38/B39/B40/B41/B26
Transmission Speed LTE FDD/TDD (Cat. 4) download 150 Mbps. Upload 50 Mbps
3G HSPA+ download 21 Mbps, Upload 5.76 Mbps
3G TD-SCDMA download 2.8 Mbps, Upload 2.2 Mbps
3G/4G Video Transmission channel LTE B1/B3/B8/B38/B39/B40/B41 (CA not support)
TD-SCDMA B34/B39
WCDMA 2100/900MHz
GSM/GPRS/EDGE 900/1800MHz
Signal Strength Detection Support
SMS Support SMS sending
SIM card slot Support Standard USIM card
SIM card lock Support

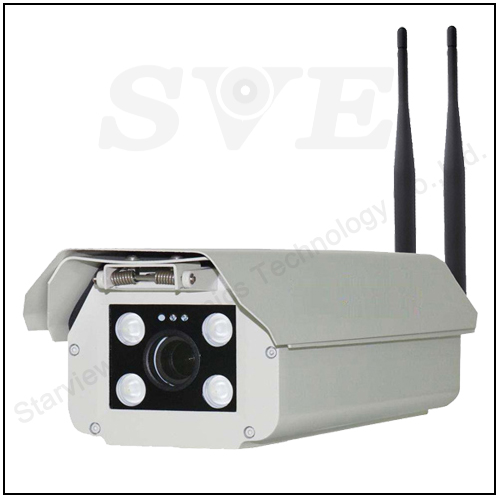

Camera Type 2.0 Megapixels 4G LPR IP Camera
System Embedded RTOS design
Video
Effective Pixels 2.0 Mega Pixels ,Main stream:1920*1080 ,Sub stream:704*576
Frames Rates 25fps(1920*1080), NTSC: 30fps(1920*1080)
Image Sensor 1/2.8" SONY CMOS Sensor , 2.48 megapixel resolution (2000H*1241V)
2.48 megapixel resolution (2000H*1241V)
DSP Dual core 32-bit DSP , (A5S88)
Min. Illumination Color 0.01Lux@F1.2, B/W 0.001 Lux@F1.2
Adjust Parameters WDR,HLC,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.
Compression H.264 Main profile
Stream support dual stream,AVI format
Bit Rate support 0.1M ~8Mpbs bit rate adjustable
Frame Rates support 1~30fps adjust
Audio
Input and output N/A
Compression G.711 compression,support two-way audio intercom,support audio and video synchronized output
Alarm Motion Detection, Video Blind , Video Loss
Network
WEB Browser Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)
Smart Phone mobile remote Monitoring (iPhone,Android,Windows Mobile,BlackBerry,Symbian)
CMS Software Uniform CMS Software(multiple devices management system)
Cloud P2P MYEYE platform and other program,Offer SDK
Network 1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
ONVIF Support (ONVIF 2.0)
POE Support(optional)
WIFI N/A
General
IR Cut Filter Set of double light switch IR-CUT filter
Lens Mount Motorized Zoom AutoFocus Lens 6-22mm (3MP)
IR Luminary 4 pieces Array White light LED
IR Wavelength /
IR Distance More than 40 M
Waterproof Criterion IP 66
I/O Connector 1*DC Connector ,1* RJ45(10/100M Network)
Supplied Voltage DC12V/PoE(802.3af/820.3at)
Power Consumption IR On: 600mA max., IR Off: Less than 200mA
Working Enviroment -10°C~+60°C, 10%~90% (Built in Heater being optional added for enviroment lower than -20°)
Dimensions 290*100*135mm
