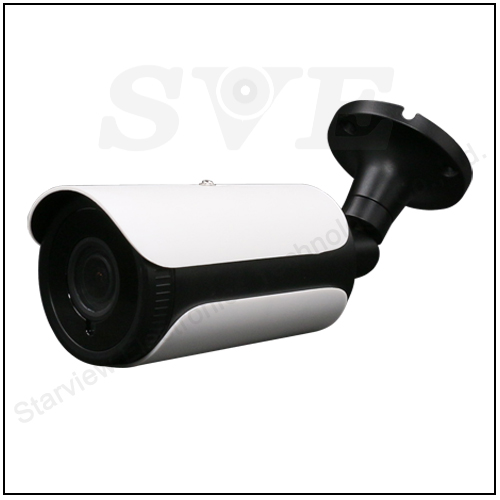

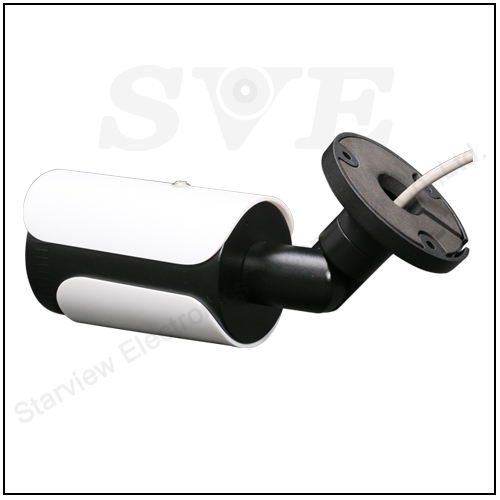

30m Hidden IR LED IP Poe CCTV Network Security Camera


Features:

Waterproof IR Bullet Camera Water Resistance: IP66

IR LED: ¢5 X 36pcs, IR Range: 30M

Obscured glass, hidden IR Led

Video Output: 1 x RJ45 port

Support Onvif, Support Gmail/GOOGLE/QQ/EMAIL

PNP(Plug and Play), support smart phone & tablets

OSD, Motion Detection, Remote View and Control, IR-Cut

Working Temperature: -10ºC~ +60ºC,APP:Guard Viewer

60PCS Per Carton

Size: 185mm x 65mm x 55mm

Weight: 600g

Specifications
Model ID SVN-WKB20MG SVN-WKB20XG SVN-WKB20FG SVN-WKB20TG SVN-WKB30SG
Description Waterproof IR Bullet IP Camera,Water Resistance: IP66 ,IR LED: ¢28X6pcs, IR Range: 30M
TV System NTSC / PAL
Video Output 1 x RJ45 port
Chipset Solution SC2232+MS313EY IMX307+MS313EY F23+MS316DC IMX307+MS316DC SC3235+Hi3516EV200
Resolution 1080P@20fps,
720P@25fps
1080P@20fps,
720P@25fps
1080P@20fps,
720P@25fps
1080P@20fps,
720P@25fps
3MP@25fps,
1080P@25fps
Effective Pixels 1920(H)×1080(V) 1920(H)×1080(V) 1920(H)×1080(V) 1920(H)×1080(V) 2048(H)×1536(V)
Minimum Illumination 0.001Lux
Lens 3.6mm(5M Pixels) / 2.8mm(Optional)
Sync,System Internal Synchronization
Network 1 RJ45 Ethernet interface, 10/100M adaptation
Video Compression H.265 compression
Protocol Support Gmail/GOOGLE/QQ/EMAIL
Onvif Support  Onvif
S/N Ratio ≥ 58dB
Audio/Mic Audio&Built-in Mic(Optional) / / / Audio&Built-in Mic(Optional)
POE Built-in PoE (Optional)
Other features Smart algorithm, Multiple image modes, Intelligent Identification
Power Source DC 12V/2A
Consumption <5W
Operating Enviroment -10ºC~60ºC / 10% ~ 95%RH
Working Humidity ≤90%
Size(mm) 185mm x 65mm x 55mm
Weight(kg) 0.6 kg
