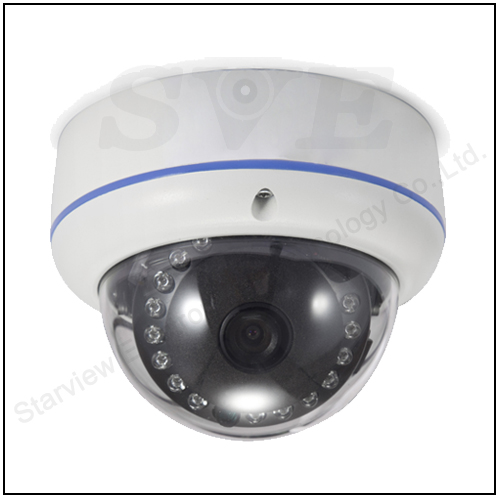

3" Metal IP Poe CCTV Network Security H. 265 Onvif Plug & Play Waterproof Dome Camera

Features:

3" Metal IR Dome IP Camera Water Resistance: IP66

IR LED: ¢5 X 15pcs, IR Range: 20M

Video Output: 1 x RJ45 port

Support Onvif, Support Gmail/GOOGLE/QQ/EMAIL

PNP(Plug and Play), support smart phone & tablets

OSD, Motion Detection, Remote View and Control, IR-Cut

Working Temperature: -10ºC~ +60ºC,APP:Guard Viewer

24PCS Per Carton

Size: 105mm ×85mm

Weight: 450g

Specifications
Model ID SVN-WIGB20MG SVN-WIGB20XG SVN-WIGB20FG SVN-WIGB20TG SVN-WIGB30SG
Description 3'' Metal IR Dome IP Camera,Water Resistance: IP66,IR LED: ¢5 X 15 pcs, IR Range: 20M
TV System NTSC / PAL
Video Output 1 x RJ45 port
Chipset Solution SC2232+MS313EY IMX307+MS313EY F23+MS316DC IMX307+MS316DC SC3235+Hi3516EV200
Resolution 1080P@ 25fps(PAL), 30fps(NTSC) 1080P@ 25fps(PAL), 30fps(NTSC) 1080P@ 25fps(PAL), 30fps(NTSC) 1080P@ 25fps(PAL), 30fps(NTSC) 1080P@ 25fps(PAL), 30fps(NTSC)
Effective Pixels 1920(H)×1080(V) 1920(H)×1080(V) 1920(H)×1080(V) 1920(H)×1080(V) 2048(H)×1536(V)
Minimum Illumination 0.001Lux
Lens 3.6mm(5M Pixels) / 2.8mm(Optional)
Sync,System Internal Synchronization
Network 1 RJ45 Ethernet interface, 10/100M adaptation
Video Compression H.265 compression
Protocol Support Gmail/GOOGLE/QQ/EMAIL
Onvif Support
S/N Ratio ≥ 58dB
POE External PoE (Optional)
Other features Smart algorithm, Multiple image modes, Intelligent Identification
Power Source DC 12V/2A
Consumption <5W
Operating Enviroment -10ºC~60ºC / 10% ~ 95%RH
Working Humidity ≤90%
Size(mm) 105mm ×85mm
Weight(kg) 0.45 kg
