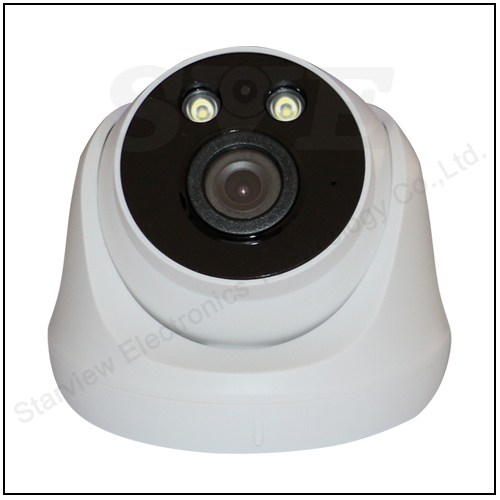

3" Plastic Humanoid Detection Defog WDR Poe Onvif Dome IP Camera
Features:
3" Plastic Dome IP Camera
IR LED: 28μX2pcs, IR Range: 25M
Obscured glass, hidden IR Led
Video Output: 1 x RJ45 port
Support Onvif, Support Gmail/GOOGLE/QQ/EMAIL
PNP(Plug and Play), support smart phone & tablets
OSD, Motion Detection, Remote View and Control, IR-Cut
Working Temperature: -10ºC~ +60ºC
Size: 108mm x 88mm
Weight: 450g

Specifications
Model ID SVN-WIDB20L SVN-WIDB20T SVN-WIDB30C SVN-WIDB30X SVN-WIDB50C SVN-WIDB50M SVN-IDB50X SVN-IDB80
Description 3'' Plastic IR Dome IP Camera,IR LED: 28μX2pcs, IR Range: 25M
TV System NTSC / PAL
Video Output 1 x RJ45 port
Chipset Solution 1/2.8"   2.0 MP CMOS
Low illumination
F37 + XM530
1/2.8"   2.0 MP CMOS
Starlight Low illumination
SONY IMX307 + HI3516EV200
1/2.7"   3.0 MP CMOS
Low illumination
SC4239 + Hi3516EV200
1/2.7"   3.0 MP CMOS
Low illumination
SC3335 + XM535
1/3"   5.0 MP CMOS
Low illumination
 SC5335 + XM550
1/3"   5.0 MP CMOS
Low illumination
SONY IMX335 + XM550
1/3"   5.0 MP CMOS
Low illumination
SONY IMX335 +
Hi3516EV300
1/2"  4K CMOS
Low illumination
SC8238 + Hi3516AV200
Resolution 1080P@25fps, 720P@25fps 1080P@25fps, 720P@25fps 3MP@20fps, 1080P@25fps 3MP@20fps, 1080P@25fps 5MP@20fps, 3MP/1080P@25fps 5MP@20fps, 3MP/1080P@25fps 5MP@20fps, 3MP/1080P@25fps 8MP@20fps, 3MP/1080P@25fps
Effective Pixels 1920(H)×1080(V) 1920(H)×1080(V) 2048(H)×1536(V) 2688(H)×1520(V) 2560(H)×1920(V) 2560(H)×1920(V) 2560(H)×1920(V) 3840(H)X2160(V)
Minimum Illumination 0.001Lux
Lens 3.6mm Board Lens/2.8mm  ( Optional )
Sync,System Internal Synchronization
Network 1 RJ45 Ethernet interface, 10/100M adaptation
Video Compression H.265 compression
Protocol Support Gmail/GOOGLE/QQ/EMAIL
Onvif Support  Onvif
AI WDR YES YES YES NO YES YES YES YES
AI Defog YES YES YES NO YES YES YES YES
AI humanoid Detection YES YES YES NO YES YES YES YES
S/N Ratio ≥ 58dB
POE Optional(Externial POE)
WIFI NO
Power Source DC 12V/2A
Consumption <5W
Operating Enviroment -10ºC~60ºC / 10% ~ 95%RH
Working Humidity ≤90%
Size(mm) 108mm x 88mm
Weight(kg) 0.45 KG
