Humanoid Detection Ai Defog WDR IP Poe CCTV Network IP66 Security Manual Zoom Lens H. 265 Onvif Bullet Camera
Features:

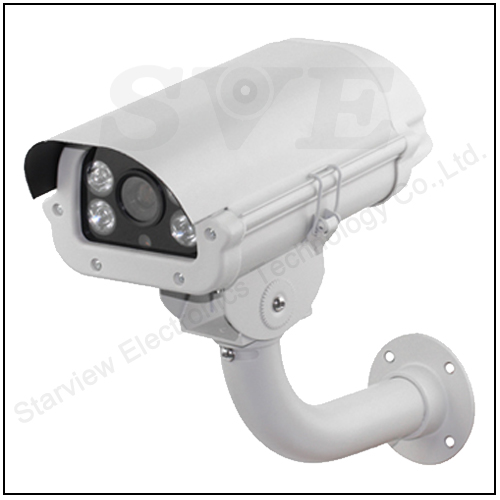

Waterproof IR Bullet IP Camera
Water Resistance: IP66
IR LED: ¢42X4pcs, IR Range: 80M
Video Output: 1 x RJ45 port, wifi Optional
Support Onvif, Support Gmail/GOOGLE/QQ/EMAIL
PNP(Plug and Play), support smart phone & tablets
OSD, Motion Detection, Remote View and Control, IR-Cut
Working Temperature: -10ºC~ +60ºC
16PCS Per Carton
Size: 280mm x 112mm x 85mm
Weight: 2500g

Specifications
Model ID SVN-WPAV20CA SVN-WPAV20L SVN-WPAV20T SVN-WPAV30C SVN-WPAV40P SVN-WPAV50X SVN-WPAV50P
Description Waterproof IR Bullet IP Camera,Water Resistance: IP66, IR LED: ¢42X4pcs, IR Range: 80M
TV System NTSC / PAL
Video Output 1 x RJ45 port
Chipset Solution 1/2.7" 2.0 MP CMOS
Low illumination
 SC2235 + Hi3516EV100
1/2.8"2.0 MPCMOS
Low illumination
 SC307E + XM530
1/2.8"   2.0 MP CMOS
Starlight Low illumination
SONY IMX307 + HI3516EV200
1/2.7" 3.0MP CMOS
Low illumination
SC4239 + Hi3516EV200
1/2.7" 4MP CMOS
Low illumination
SC5239 + XM530
1/3" 5MP CMOS
Low illumination
SONY IMX335 + HI3516EV300
1/3"  5.0 MP CMOS
Low illumination
PS5239+ Hi3516DV100
Resolution 1080P@25fps 1080P@25fps, 720P@25fps 1080P@25fps, 720P@25fps 3MP@20fps, 1080P@25fps 4MP@20fps, 3MP/1080P@25fps 5MP@20fps, 3MP/1080P@25fps 5MP@15fps, 4MP@25fps
Effective Pixels 1920(H)×1080(V) 1920(H)×1080(V) 1920(H)×1080(V) 2048(H)×1536(V) 2688(H)×1520(V) 2688(H)×1520(V) 2560(H)×1920(V)
Minimum Illumination 0.001Lux
Lens 3MP 2.8-12mm 4X motorized
zoom lens (Auto focus)
3MP 2.8-12mm
Manual Zoom lens
3MP 2.8-12mm
Manual Zoom Lens
3MP 2.8-12mm
Manual Zoom Lens
5MP 2.8-12mm
Manual Zoom Lens
5MP 2.8-12mm
Manual Zoom Lens
5MP 2.8-12mm
Manual Zoom Lens
Optional (9-22mm Lens)
Sync,System Internal Synchronization
Network 1 RJ45 Ethernet interface, 10/100M adaptation
Video Compression H.265
Protocol Support Gmail/GOOGLE/QQ/EMAIL
Onvif Support  Onvif
S/N Ratio ≥ 58dB
AI WDR NO YES NO NO YES YES NO
AI Defog NO YES NO NO YES YES NO
AI humanoid Detection NO YES NO NO YES YES NO
POE Built-in PoE (Optional)
OSD YES
WIFI Optional
Power Source DC 12V/2A
Consumption <5W
Operating Enviroment -10ºC~60ºC / 10% ~ 95%RH
Working Humidity ≤90%
Size(mm) 280mm x 112mm x 85mm
Weight(kg) 2.5 kg
