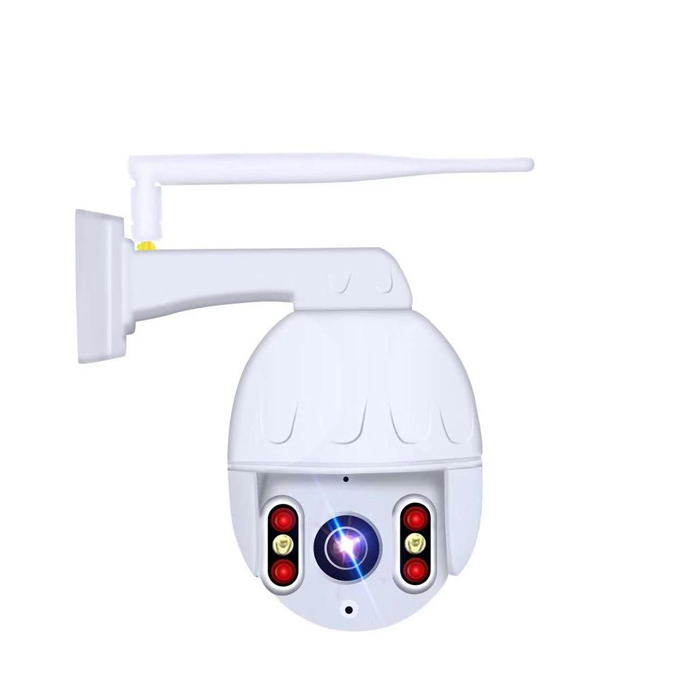

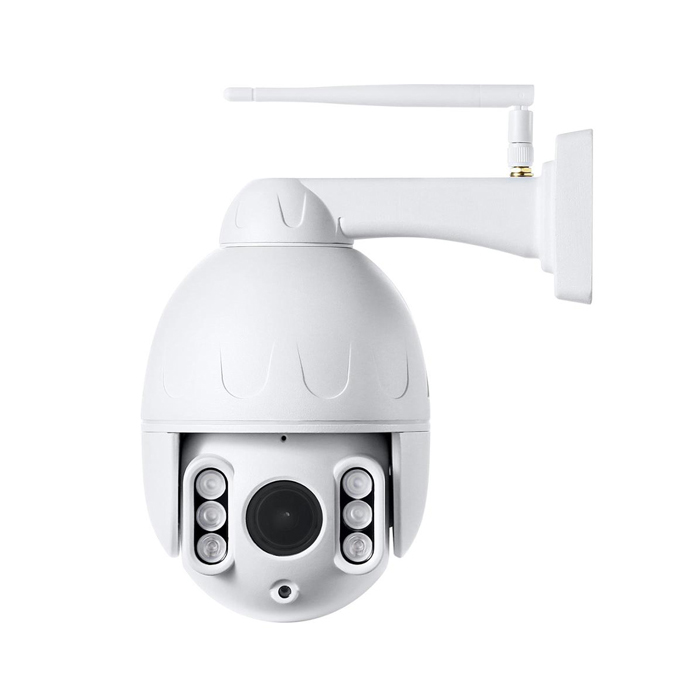

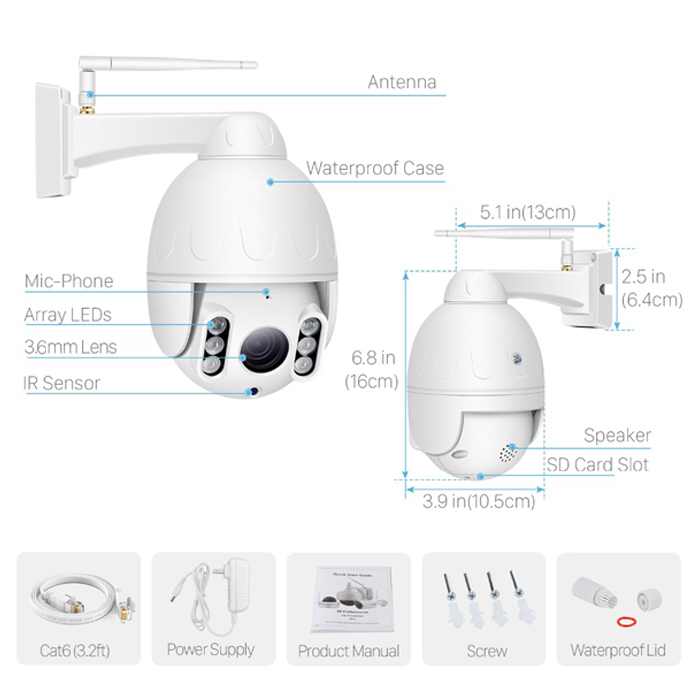

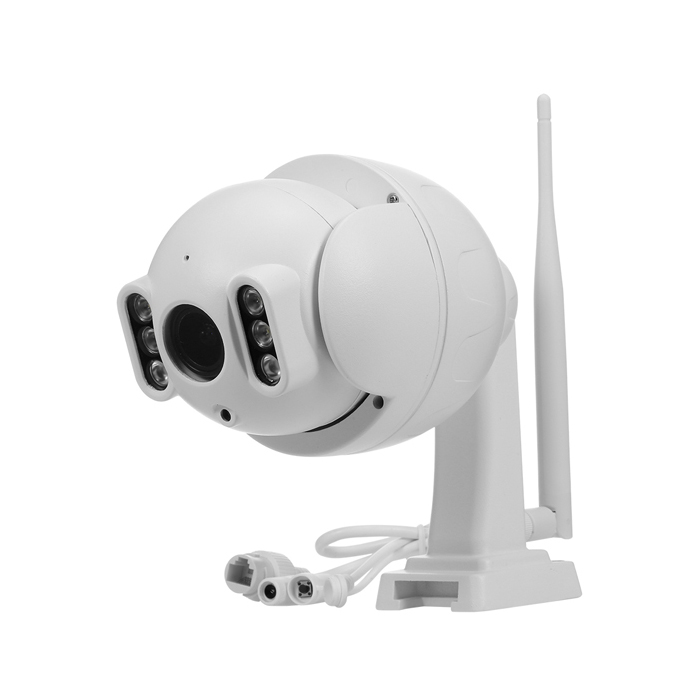

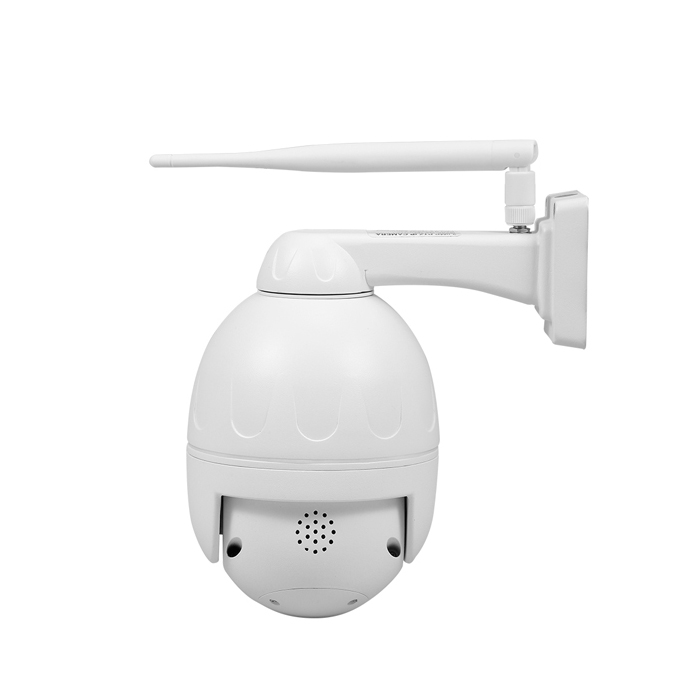

1080P IR/White Light IP Two-Way Audio PTZ Camera

Key Features
  1. Horizontal: 265°, Vertical: 90°, Support 8 preset points;
  2. 3.6mm Fixed lens,
  3. Double IR-CUT; 6 PCS IR/White light Distance: 30M
  4. Support ONVIF, Two-way voice, Humanoid detection;
  5. H.265 video coding, supporting dual bit rate, 32Kbps~6Mbps;
  6. Support multiple devices to watch one device at the same time
  7. Maximum 128G TF card storage
Technical parameters
Model
Model No. SVN-36CH21PT4
Camera
Image sensor SC2335+T31N
Resolution 1080P,720P,VGA,QVGA
Frame rate 20fps(PAL), 20fps(NTSC)
Min. Illumination Color:0.1 Lux; Black:0.01Lux;
CMOS performance Support ATW/automatic gain control/automatic BLCHumanoid detection
Lens 3.6mm
Audio
Coding standard AMR/G.711A
Audio input built-in - 38dB microphone
Audio output Built in speaker (8 Ω 1W)
Pan&Tilt
Pan Range 265°
Tilt Range 90°
Preset Support 8 preset points
TF Card
Storage Maximum support 128G
Recording Timed recording, Alarm recording
Network
Network interface 10Mbps/100Mbps adaptive/RJ45 interface
Network protocol TCP/IP, UDP/IP, HTTP, ICMP, FTP, EMAIL, TELNET
Alarm
Alarm method Motion Detection
Alarm Output APP push
General
IR/White light Distance 6 PCS IR/White light Distance: 30M
Power DC12V 2A
Power consumption Daytime: 5W, infrared activation at night: 8W
Working temperature 0ºC~55ºC
Working humidity 10 ~ 95%%RH
Waterproof IP65
Package Dimension 200*198*120 mm
Weight 0.8 kg
