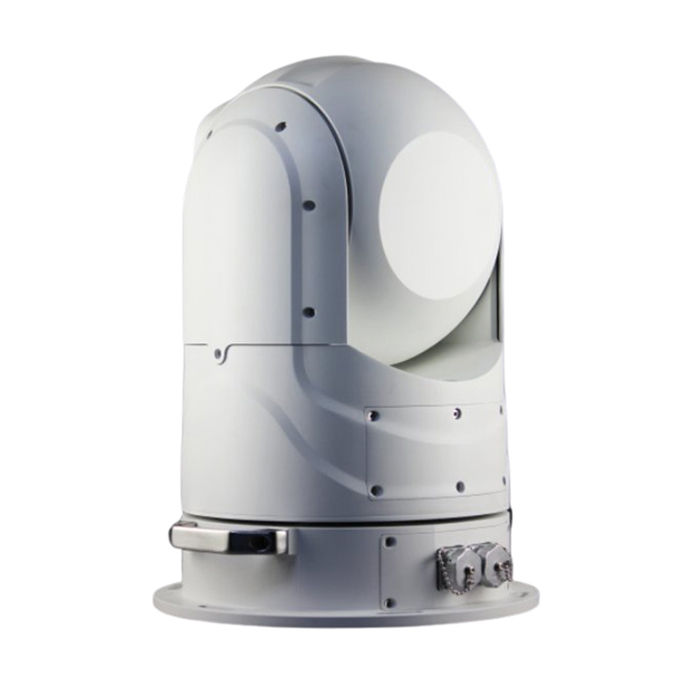

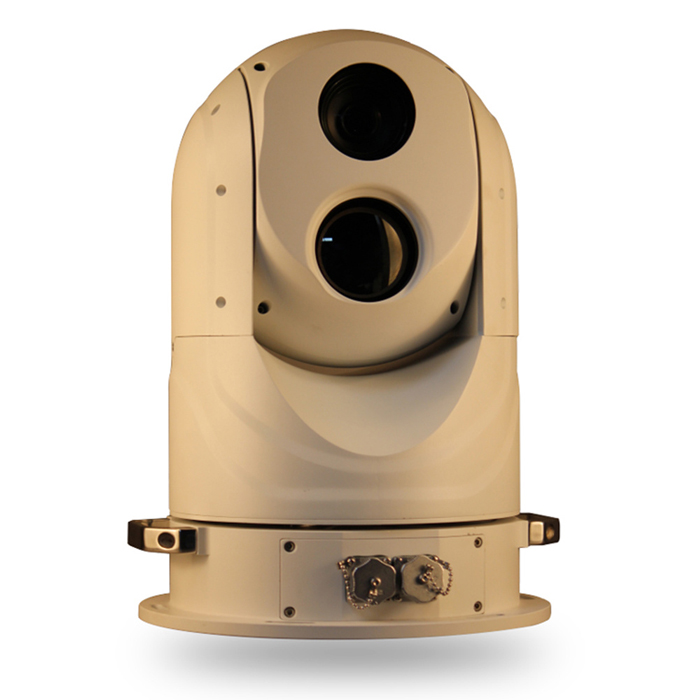

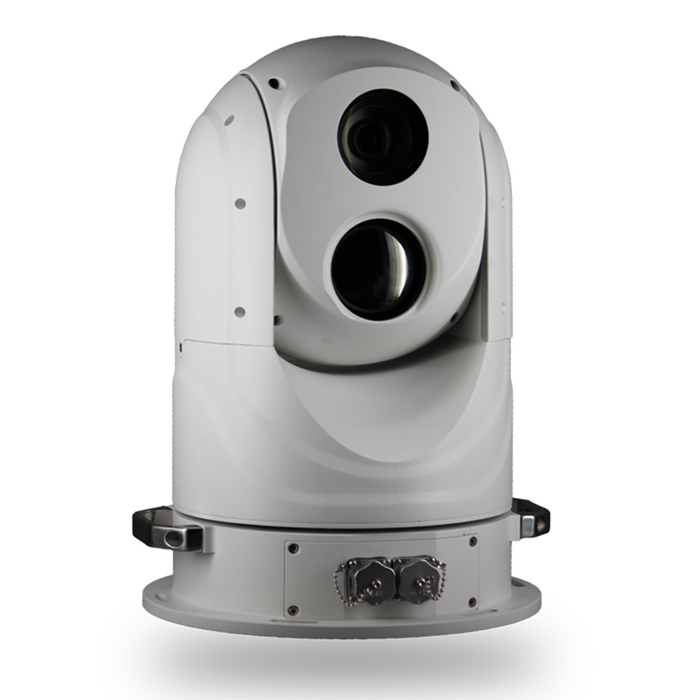

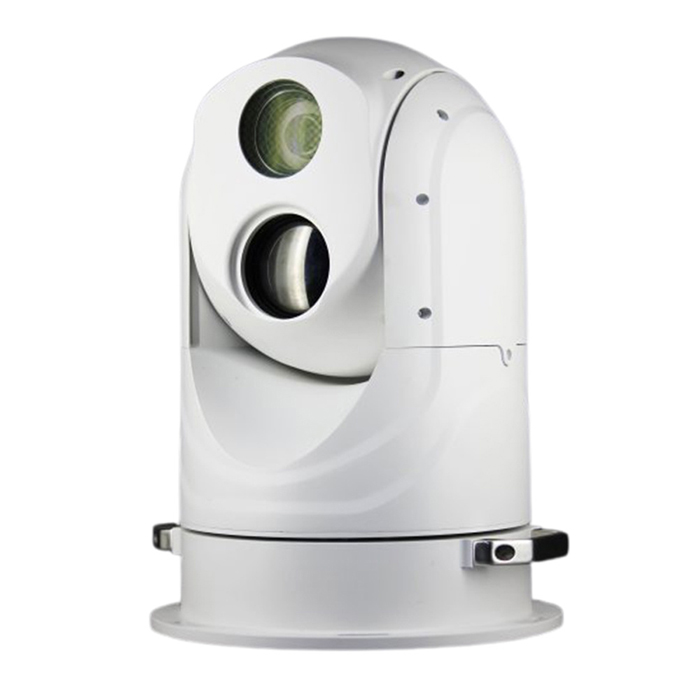

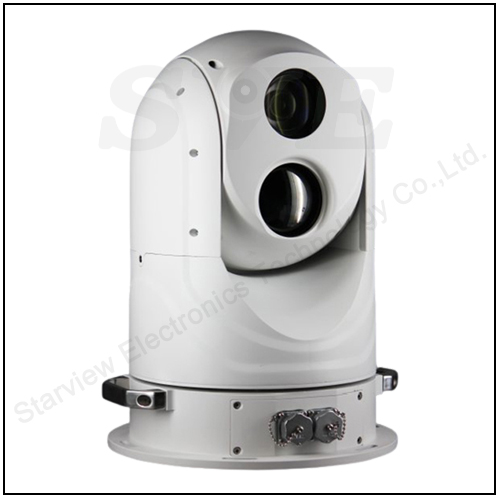

52X Opticol Zoom 4MP Thermal Imaging IP67 Marine PTZ Camera
Key Features
- Starlight optical Camera with 1/1.8 Cmos sensor, 317mm lens, 52x Zoom;
- Optional Thermal Imaging module
- 360° omnidirectional high-speed PTZ; ±90° Tilt range;
- Built-in heater/fan, allows the withstand the harshest climates;
- Marine rated design;
- Onvif Support;
Application
Coastal Surveillance and Reconnaissance, Harbor and Offshore Platform Security, Maritime Traffic monitoring, Oil Spill and Water Pollution Detection, Search and Rescue, Coast Guard and Patrol Boats, Critical Infrastructure Protection.
Product Parameters
Coastal Surveillance and Reconnaissance, Harbor and Offshore Platform Security, Maritime Traffic monitoring, Oil Spill and Water Pollution Detection, Search and Rescue, Coast Guard and Patrol Boats, Critical Infrastructure Protection.
Product Parameters
| Model | |
| Model No. |
SV-TH397-252
|
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS, 4MP |
| Effective pixel | 2560(H) x 1440(V), 4 Megapixels; |
| Min. Illumination | Color: 0.0005Lux@F1.4; B/W:0.0001Lux@F1.4 |
| Lens | |
| Focal Length | 6.1mm~317mm |
| Optical Zoom | Optical Zoom 52x |
| Aperture Range | F1.4-F4.7 |
| Field of View | 61.8-1.6°(Wide-Tele); 36.1-0.9°(Wide-Tele) |
| Working Distance | 100-2000mm(Wide-Tele) |
| Zoom Speed | Approx. 6 s (optical lens, wide-tele) |
| Pan/Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.05°/s ~ 80°/s |
| Tilt Range | -90° ~ +90° (auto reverse) |
| Tilt Speed | 0.1° ~ 20°/s |
| Preset | 255 |
| Patrol | 6 patrols, up to 18 presets per patrol |
| Pattern | 4 , with the total recording time not less than 10 mins |
| Power loss recovery | Support |
| Thermal Imaging | |
| Array format/Pixel pitch | 384x288/17μm |
| Thermal Lens | 25mm |
| HOV | 10.6°X7.9° |
| NETD | < 40mk(@30°C,F#=1.0) |
| Digital Zoom | 1x, 2x, 4x |
| Polarity | black hot/white hot |
| Pseudo color | Support (18 types) |
| Video | |
| Compression | H.265/H.264 / MJPEG |
| Streaming | 3 Streams |
| BLC | BLC / HLC / WDR(120dB) |
| White Balance | Auto,ATW,Indoor,Outdoor,Manual |
| Gain Control | Auto / Manual |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Interoperability | ONVIF, PSIA, CGI |
| Web Viewer | IE10/Google/Firefox/Safari... |
| General | |
| Power | AC 24V, 72W(Max) |
| Working temperature | -40ºC~60ºC |
| Humidity | 90% or less |
| Protection level | Ip67, TVS 4000V Lightning protection, surge protection |
| Mount option | Wall Mounting, Ceiling Mounting |
| Weight | 9.5 kg |
