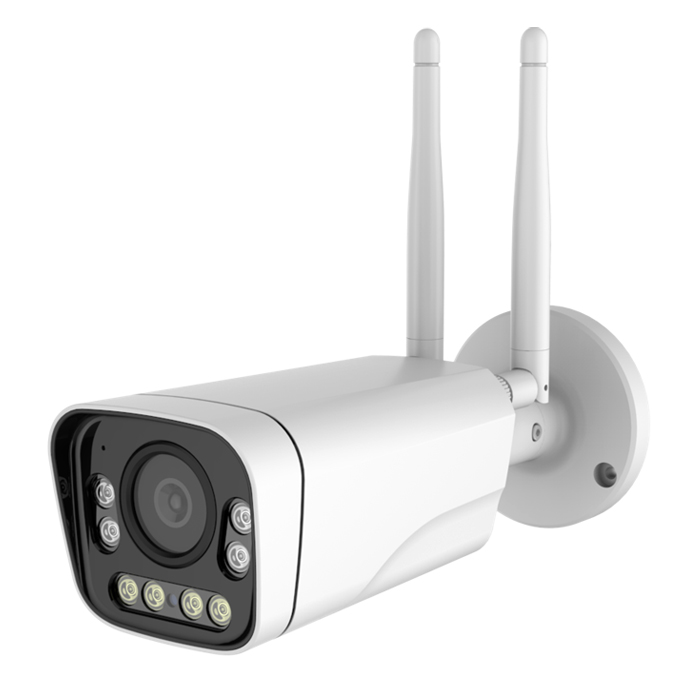

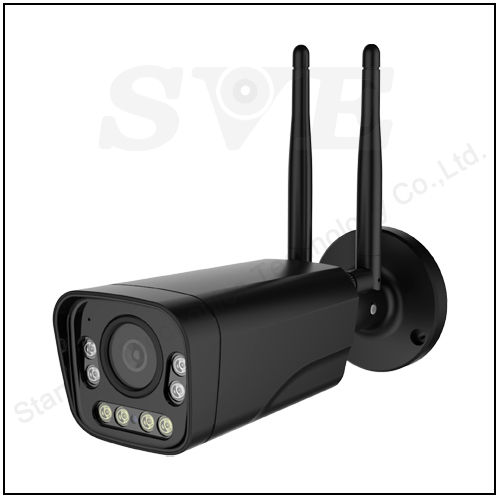

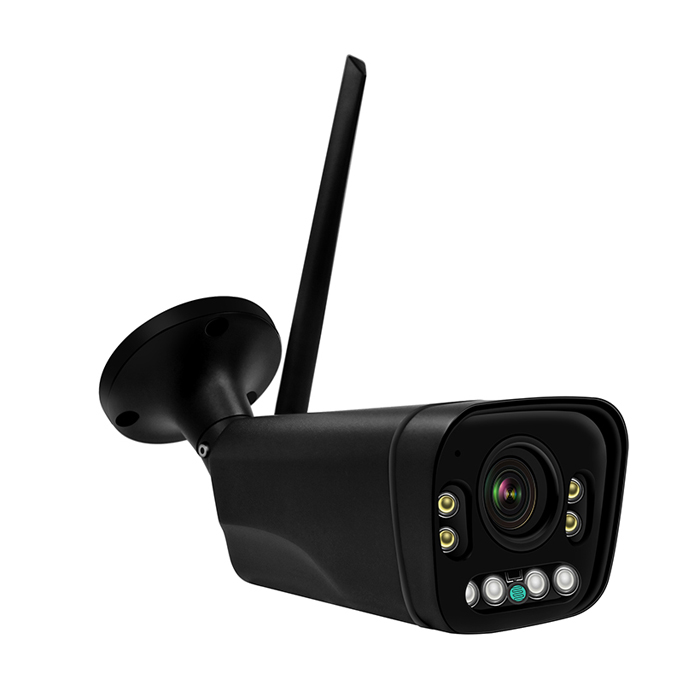

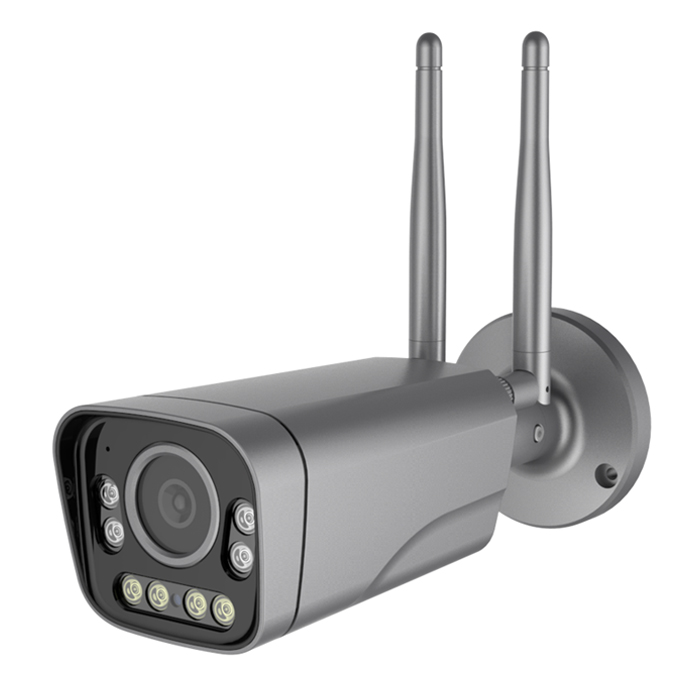

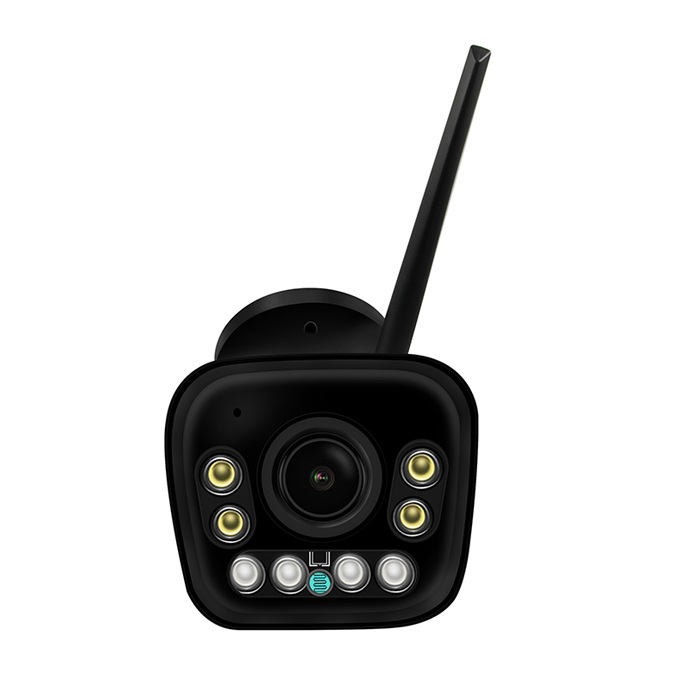

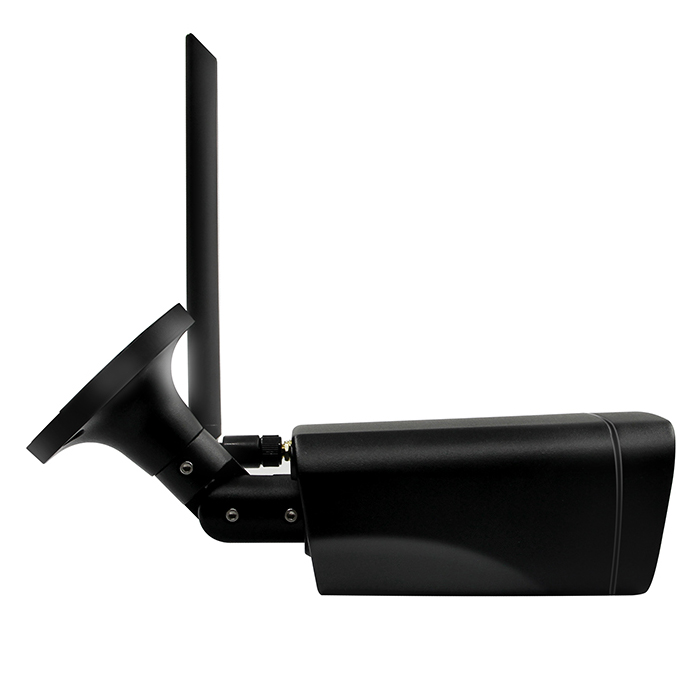

8MP Imx415 H. 265 Onvif 3.6mm Fixed Lens Motion Detection Human Shape Recognition Camhipro Bullet IP Camera
Key Features
  • 8MP(3840*2160) 1/2.8"IMX415 CMOS  SSC338Q;
  • 3.6mm fixed Lens;
  • Support ONVIF, Two-way Audio, Humanoid detection Vehicle shape Recognition;
  • H.265 video coding, supporting dual bit rate, 32Kbps~6Mbps;
  • Support multiple devices to watch one device at the same time
  • Alarm photo and alarm video storage, support local 128G TF card storage.
  • IE browsing, automatic search equipment, remote monitoring, simple operation;
  • Support humanoid detection, intelligent alert, push alarm information to the mobile client.
Technical parameters
Model No. SV-WH75BE
OS LINUX
Image Sensor 1/2.8"IMX415 CMOS  SSC338Q
Resolution 8MP /4K
Lens 3.6mm fixed Lens;
Night Vision Intelligent dual light, starlight infrared, full color day and night
Compression
Video Compression H.265 Main Profile
AudiCompression G.711
Stream 32Kbps-6144bps, can be customized, default 1536Kbps
Max.image 4K(3840x2160)
Video streaming First stream: 4K (3840x2160), Second stream: 720P (1280x720)
Frame rate 10fps(50HZ), 10fps(60HZ)
Character overlay Support OSD name, time and date information overlay
Image settings Brightness, contrast, saturation, up and down inversion, left and right mirror adjustable
Bit rate 32Kbps~6Mbps
Network
Storage Maximum support 128G Micro SD card storage, support timing recording and alarm recording storage
Motion Detection 4 independent detection areas can be set (sensitivity 1-100 can be set)
Recognition Support human shape recognition and vehicle shape recognition
Alarm linkage Send the picture to the designated mailbox after the alarm; upload the alarm picture and alarm video to the FTP server;
Network protocol TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP
Interface protocol ONVIF 2.4
Network 1 RJ45, 10/100M Ethernet, WiFi 802.11b/g/n wireless network
IE application Embedded Web Server, users can browse and control directly with a browser
Phone monitoring IOS, Android
Dynamic DNS LAN and Internet
Audio Support voice intercom (voice alarm)
User Management Provides multi-user hierarchical rights management, allowing multiple users to access the device at the same time
Power Consumption DC12V 2A 2.2W
Working Environment 0 ~ 55 ºC, 10 ~ 95%
