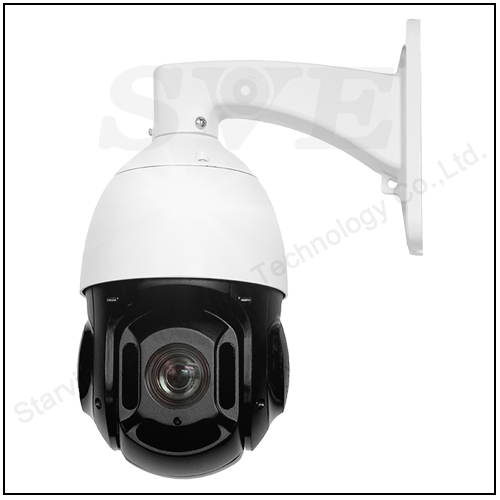

5MP 18X Optical Zoom Poe Outdoor Security IP Camera IP66 Weatherproof PTZ Speed Dome Camera Support Autotracking Human & Vehicle Detection

Pan & Tilt
Manual speed Pan(0.1°~200°/s)
  Tilt(0.1°~200°/s)

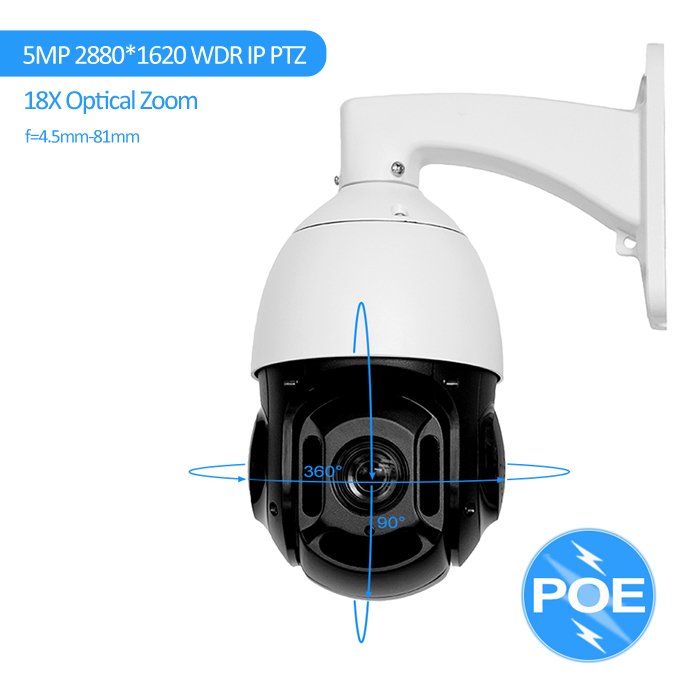

Rotation Pan continuously 360°, tilt 0~90° with auto-flip
Preset 128 preset
Auto-flip Tilt down 90°, with auto-flip 180°
Scan 355°programmable, 4 scan
Pattern 4 patterns, and each record time is not less than 180s
Tour 4 tour, and speed & park time of presets can be set.
Idle run tour/preset/pattern/scan can be set
Power up run tour/preset/pattern/scan can be set
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Chispset 1/2.7"  CMOS(5.0megapixel)
Effective Pixels (5MP)2880*1620

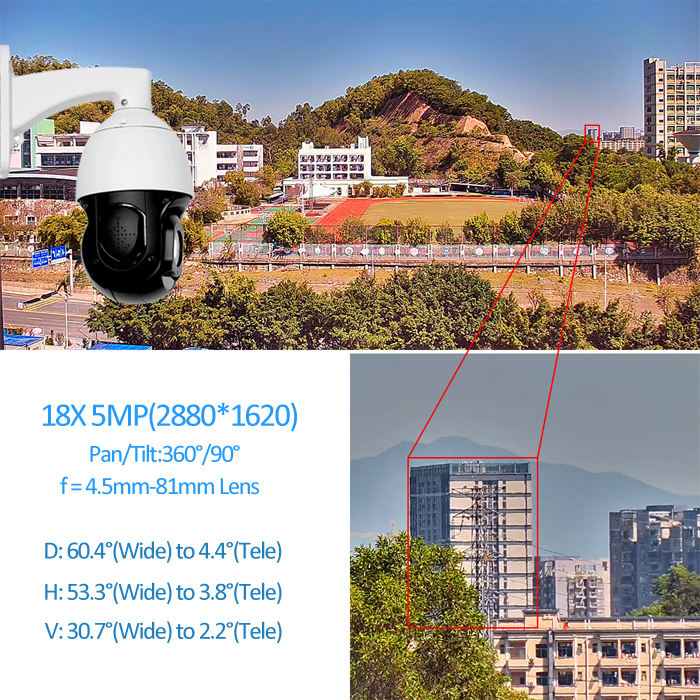

OPTICS Zoom Optical x 18, f =4.5mm ~ 81 mm
Digital Zoom Digital:16X
Angle Appr.(D) 60.4°(Wide) to 4.4°(Tele);(H) 53.3°(Wide) to 3.8°(Tele);(V) 30.7°(Wide) to 2.2°(Tele);
Iris F1.7
Auto Focus Auto / one push / Manual

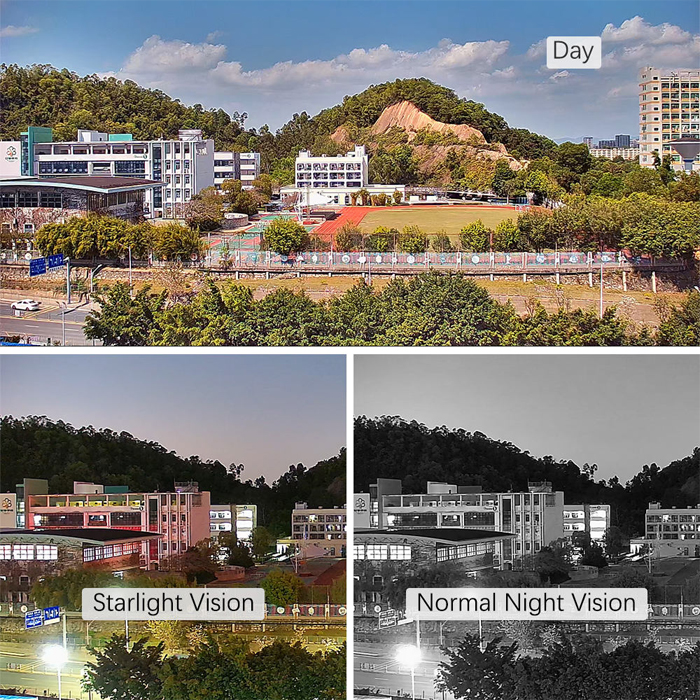

Min. Illumination Colour: 0.005 lux (F1.7, AGC ON);0 lux with IR
Shutter Time Auto/Manual; shutter time: 1 ~ 1/100000 s
IR Range UP to 80m
Defog Defog Digital Defog
Noise reduction 2D/3D DNR
Wide dynamic 120dB
VIDEO
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:(3MP)2304*1296,1280*720,720*576(D1),640*360
  Sub Stream:1280*720,720*576(D1),640*360
  Third Stream:720*576(D1),640*360,704*288(2CIF),352*288(CIF)
HLC Supported
BLC Supported
EIS Supported
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
IR
IR irradiation distance 80m
IR irradiation angle Adjustable by zoom
ICR Manual/Auto
SMART

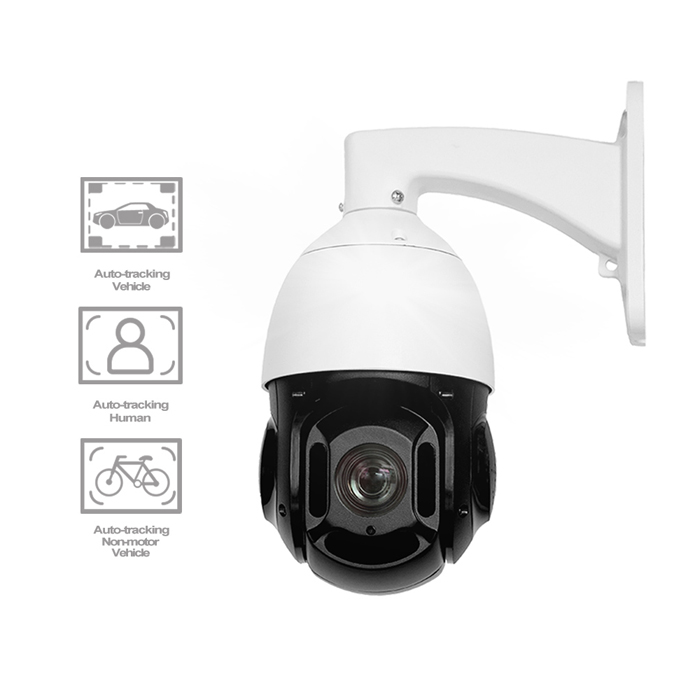

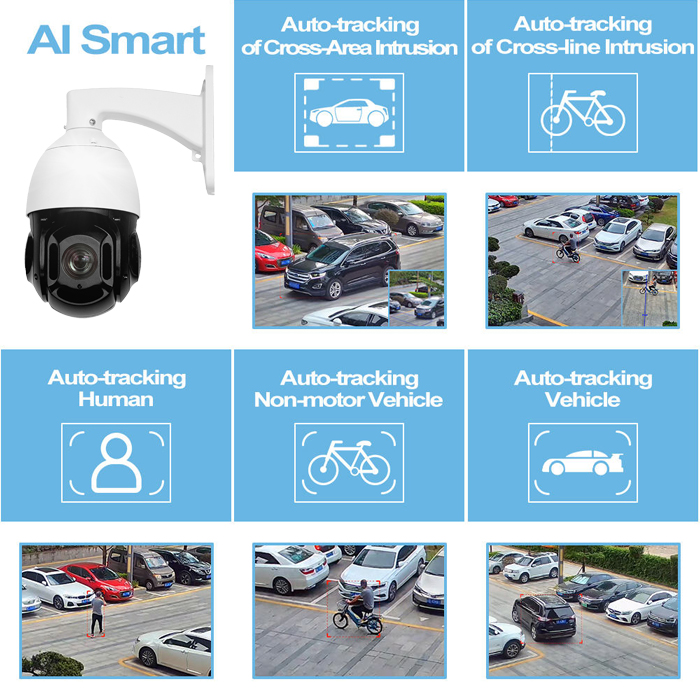

Behavior Detection Intrusion, cross line, motion detection, auto tracking
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Audio detection
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,TLS,SSL
Compatible Integration ONVIF(Profile S, Profile G, Profile T), API
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power consumption 9W/35W(IR_LED ON)
Power supply DC 12V/3A
POE IEEE802.3at 30W
Temperature -40ºC~+60ºC
Installation Wall /Corner/Pole/Pendant installation
Net weight 2.1kg

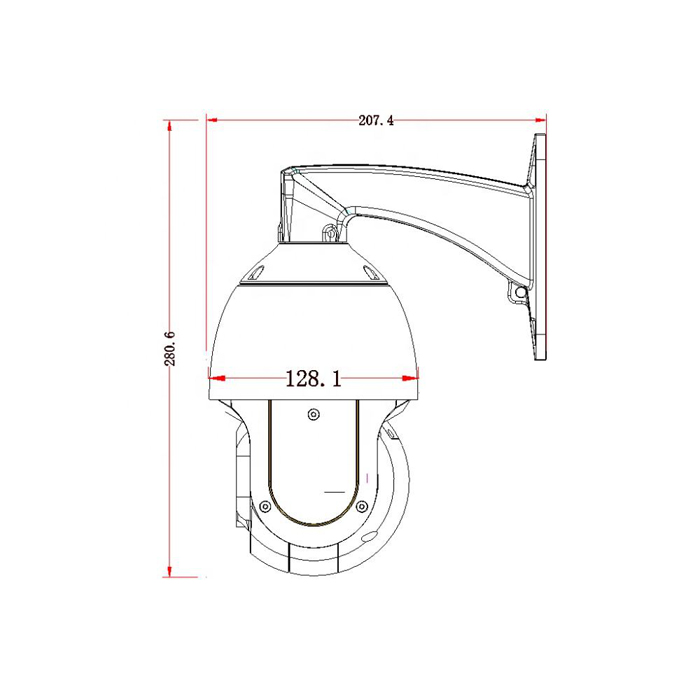

Size Product size 280*128*207mm, Packing size 255*205*273mm
Protection Level: IP65 standard (outdoor PTZ)
