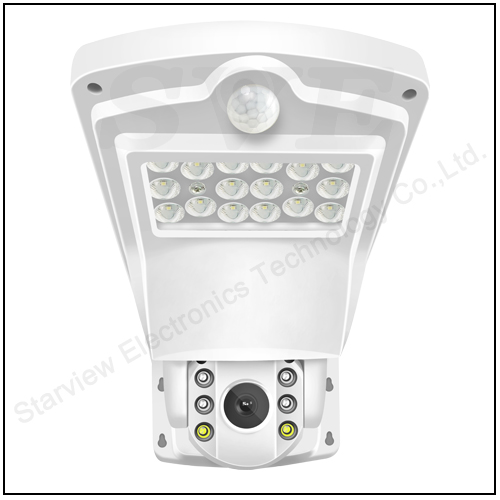

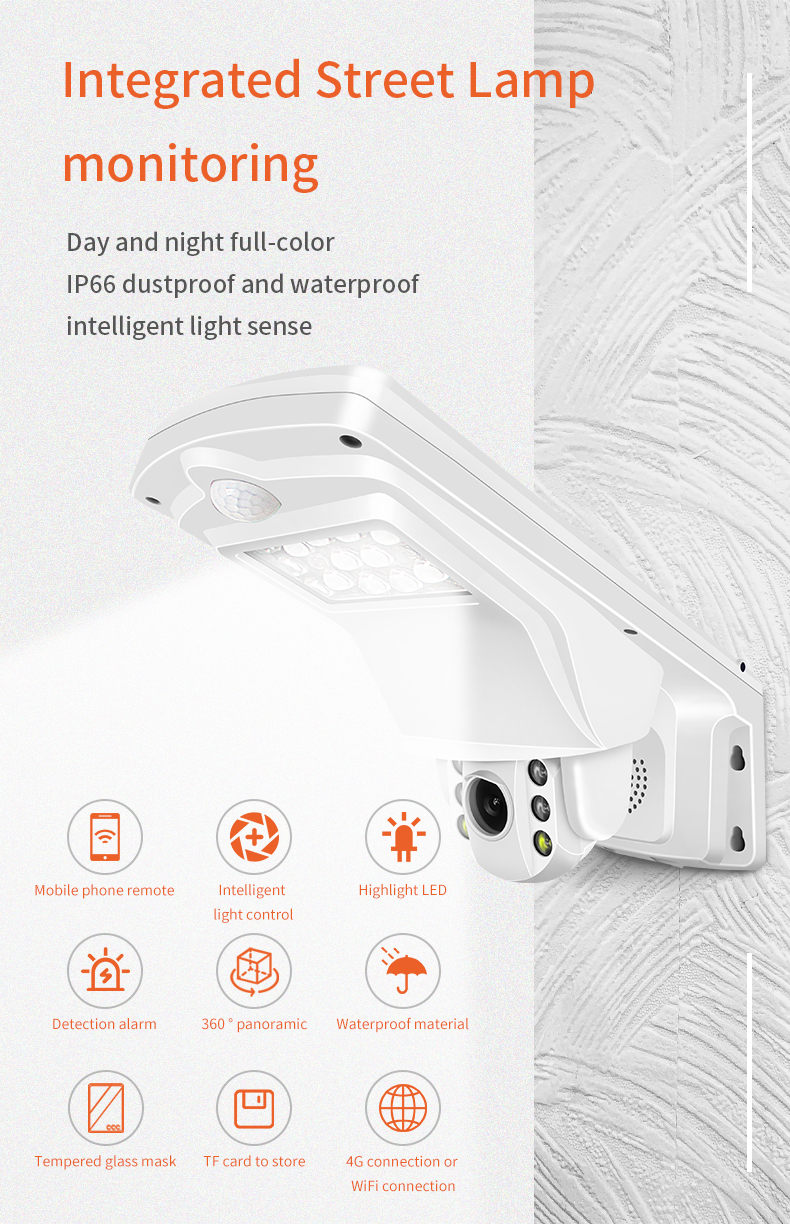

5MP 5X Zoom 4G/Wifi Intelligent Street lamp apherical camera
Key Features

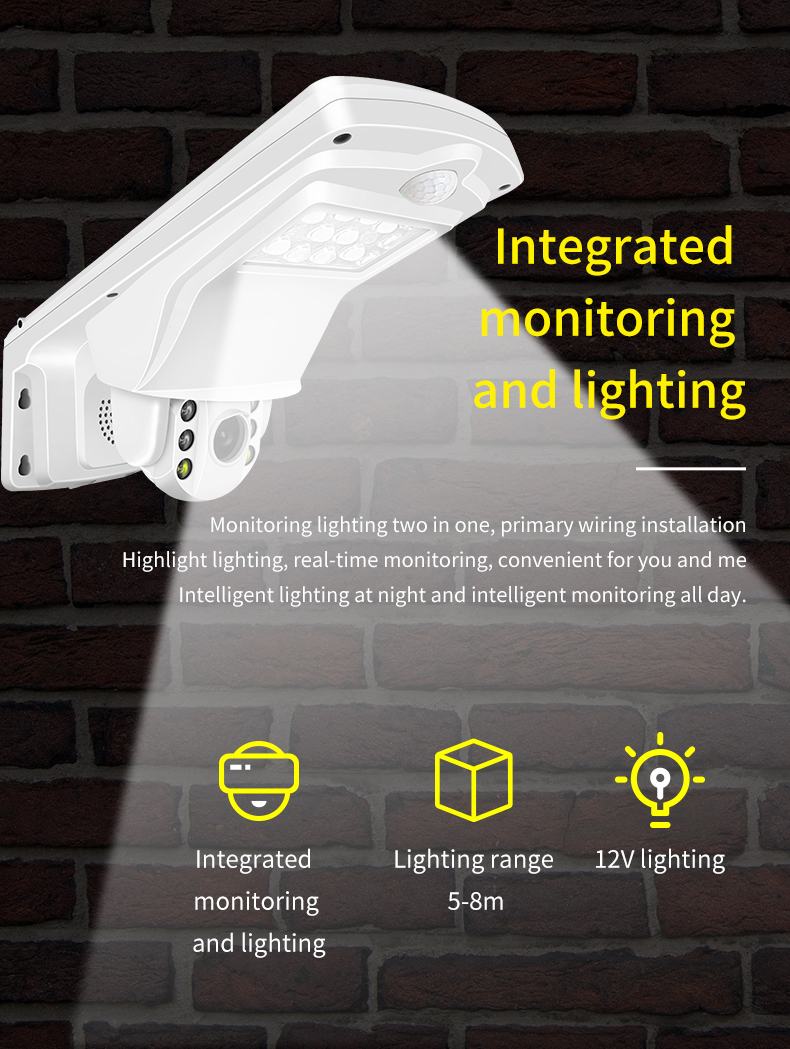

  • Intelligent light;
  • Monitor the lighting as a whole.
  • 5MP(2560*1920) 5X Optical Zoom 2.7-13.5MM len

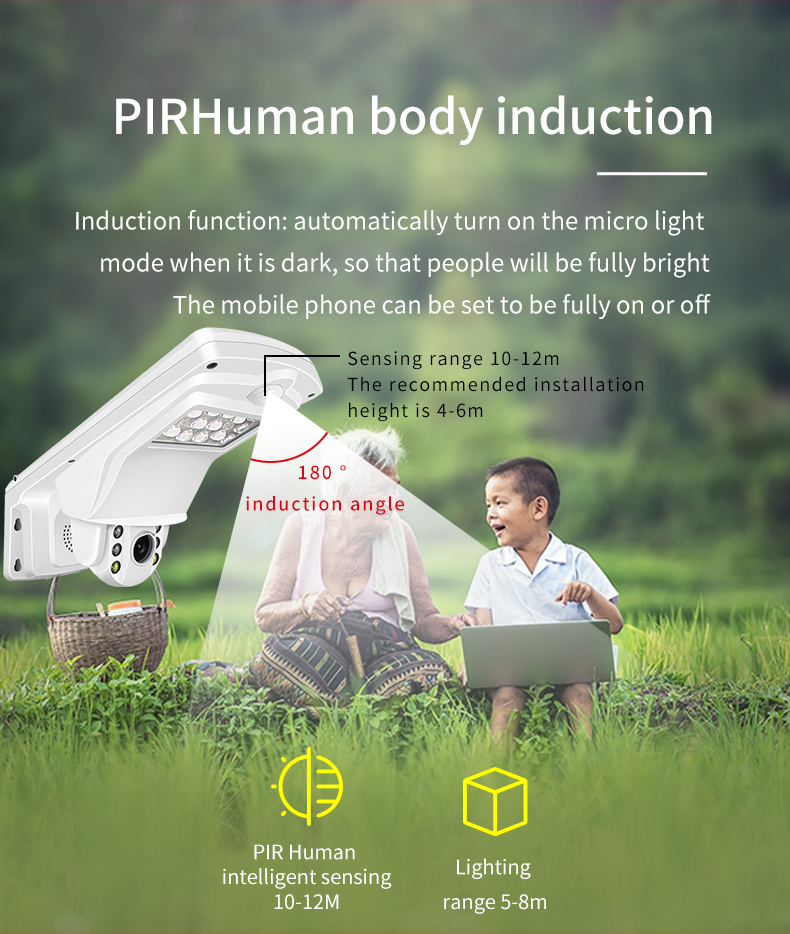

  • Mobile detection alarm; Voice talk
  • Horizontal 0-355 degrees; Vertical 0-90 degrees
  • IP66 waterproof
Technical parameters
Model No. SVN-5HXS2-WG
Name Street lamp apherical camera
Texture Aluminum alloy + ABS shell
Lighting source LED light source
Light source control Intelligent light control / mobile app control
Optical zoom optical 5 X zoom
Camera element 1/3" CMOS
Pixel 5MP
Network connections 4G / Wifi
Sound recording 15m
Intercom 40m
Local storage External TF Card(maximum 128G)
Network protocol Onvif
Signal to noise ratio ≥48db
Weight 2KG
Power Supply DC 12V2A
Lighting power Slightly bright 2W, full bright 10W
Night vision mode infrared / full color / intelligent mode
Night vision distance 20m full color, 40m infrared
Night vision lamp 4 infrared lamps, 2 white lights
Minimum light 0.5Lux@D1; 0.09Lux@1.6
Voice alarm Enter the monitoring area and activate the siren

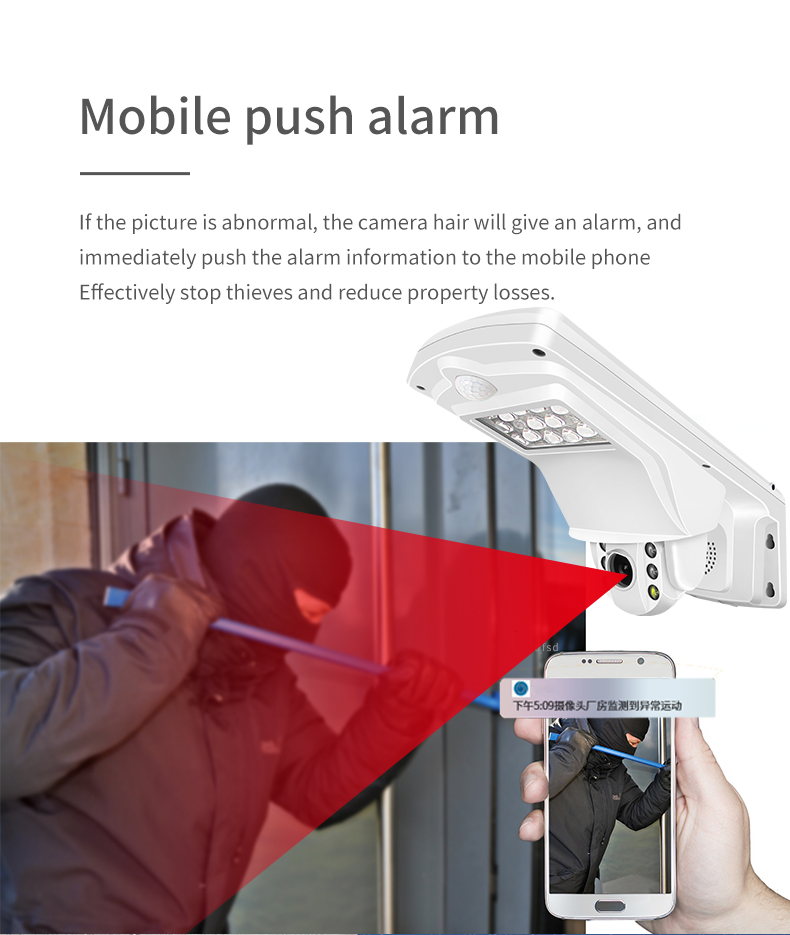

Movement detection Alarm information can be sent to mobile phone or email

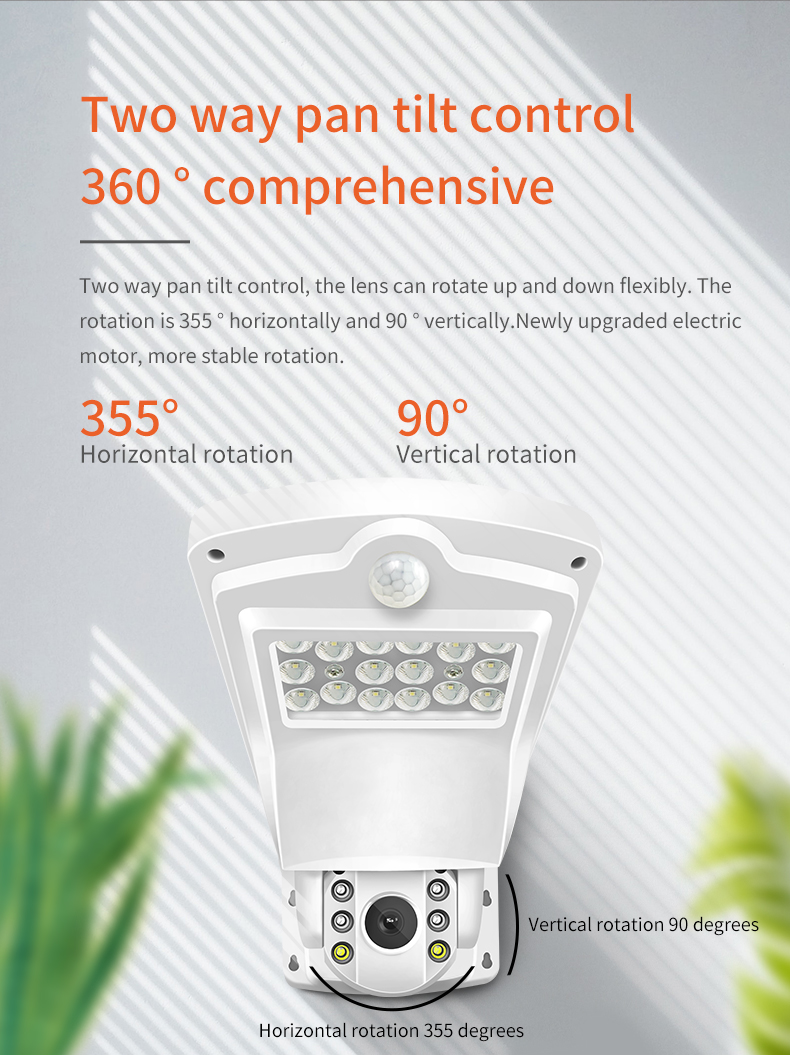

Rotation angle Horizontal 0-355 degrees; Vertical 0-90 degrees
Horizontal velocity 0-20°/S
Vertical velocity 0-20°/S
Decoder built-in

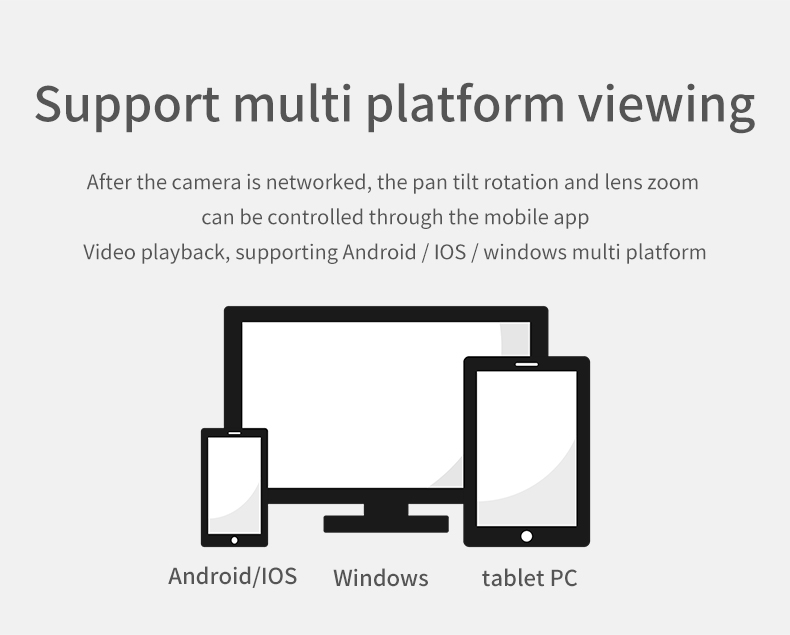

Inquiry method IE, mobile phone, tablet, computer
Remote function Support mobile remote
Waterproof grade IP66, it can be installed outdoors
Ambient temperature -30℃-70℃
Package size 360*175*155mm
Camera power 2W in daytime, 5W in night vision, 10W in maximum power
