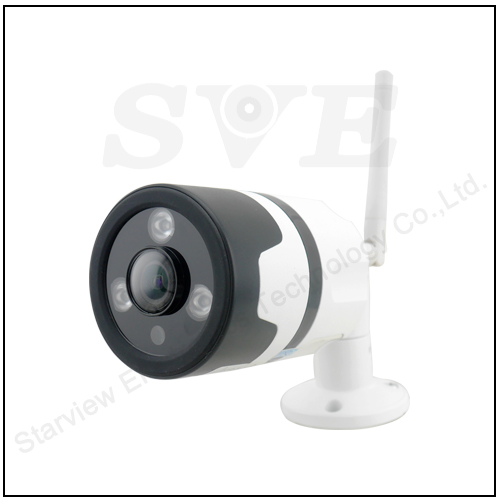

1080P Plug Play Panoramic Two Way Voice Eptz IP Camera
- Electronic PTZ, the mobile phone can be right and left cruises
- Supports ONVIF, butt NVR host
- H.264 video coding, supports double bit rate, 0.1M-8Mbps
- Wi-Fi connect, Wi-Fi setup, smart home robot
- Supports 64GB TF card, P2P, iCloud
- Supports two-way audio, speak face to face
- Day and night protection, B/W, IR distance: 50m
- Security: supports WPA and WPS 2.0 encryption
| Model NO. | SVN-WE23QJ |
| Video | |
| Chip | Hisilicon |
| Sensor | SONY323 |
| Image output | 1920*1080 |
| Frame rate | 1-30fps |
| Min.Illumination | Color:0.1 Lux, B/W:0.1 Lux |
| CMOS performance | AWB, AGC, BLC |
| Camera lens | High definition panoramic lens |
| Audio | |
| Coding standard | AMR/G.711A |
| Audio input | 1 road built-in -38dB microphone |
| Audio output | Built-in loudspeaker (8 Omega 1W) |
| TF Card | |
| Storage | Maximum support for 64G |
| Video management | |
| Video mode | Timing video, alarm video |
| Network | |
| Network interface | 10Mbps/100Mbps adaptive /RJ45 interface |
| Network protocol | TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, P2P |
| Wireless | IEEE802.11b/g/n wireless network |
| Alarm | |
| Alarm mode | Motion detection |
| Alarm output | APP push |
| Other | |
| Power | DC12V 2A |
| temperature | -10~50ºC |
| Working humidity | ≤80%RH |
| Power dissipation | Day:5W, Infrared start 10W at night |
| Gross weight | 0.5KG |
| Packaging size | 220*120*115MM |
