Shop Safety 2000 Face Execute Control CCTV Kits IP Camera

Applicable scene

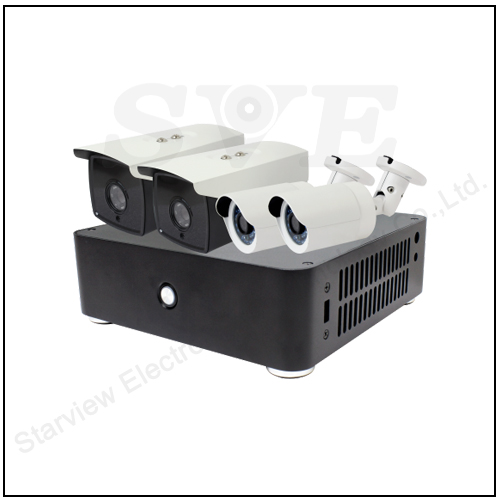

Combined with one face recognition camera and 3 pcs smart IP camera,SV-iDA2204-S3D1 is specifically for the small store;facede to create a ALL-IN-ONE face recognition application kits;it consists of embedded smart NVR and FP series cameras, Smart IPC Cameras composition;support for multiple cloud technologies; can realize P2P network transparent transmission;can be used to prevent thieves;early warning of dangerous staff. It is your shop safety steward.

Key Features
  • 2CH front-end smart face capture camera access,embedded smart face algorithm,support face capture in complex environments;support face tracking,face exposure mode,face automatically filter,installed at the door,entrance;
  • 2CH@1080P real-time streaming camera,H.265+,installed in other monitoring area;
  • Can set the blacklist/whitelist(10000 pcs),can be captured from the front-end or external USB device to detects faces in added pictures, add the detected face to the blacklist / whitelist,each face has a unique identifier UID ;
  • Face alarm pop-up,when the recognized face matches blacklist / whitelist conditions,will pop-up a window,display the corresponding picture information,linkage camera output ;
  • Intelligent detection can retrieve all the detected faces in the real-time stream,can also retrieve the corresponding face based on the blacklist / whitelist.Double-click the retrieved faceto play back the corresponding video ;
  • Support iPhone,iPad,Android,support for multiple cloud technologies,can realize P2P network transparent transmission.

64-bit Linux system
Camera SV-iDA2204-S3D1
Model FP series camera Smart IP Camera
Image Sensor 1/1.8" 2MP Sony CMOS 1/2.9" 2.0MP Sony CMOS
Effect Pixel 1920(H)x1080(V) 1920(H)x1080(V)
Scanning Method line-by-line scan line-by-line scan
Shutter Time 1/25s~1/10000s;Auto Adjust 1/25s~1/10000s;Auto Adjust
Min Illumination
Color : 0.0001Lux@F1.2; Color:0.01Lux @F1.2;
Black&White: 0.00001Lux@F1.2; Black&White:0.001Lux @F1.2;
S/N Ratio ≥50dB(AGC OFF) ≥50dB(AGC OFF)
Wide Dynamic Range ≥80dB Digital WDR ≥80dB Digital WDR
Digital Noise Reduction 3D Digital Noise Reduction 3D Digital Noise Reduction
Privacy Cover Up to 4 privacy zones are supported Up to 4 privacy zones are supported
Lens Mount 3X Optical zoom lens 3.6-11mm 3.6mm lens
Smart functions
Smart Analysis Face capture,face tracking and face automatically filter N/A
Image Format Capture images using the JPEG encoding N/A
Sensitivity 0-10 Adjustable,the lower the sensitivity the higher the picture quality N/A
Regional Settings Support face recognition area selection N/A
Upload Method FTP Upload N/A
Alarm Output  1CH Alarm output control GPIO N/A
Video parameters
Video compression H.265+,H264,Baseline/Main Profile/High Profile,H.265 Main Profile,MJPEG
Video resolution Main stream 1080P(1920*1080)/720P(1280*720)
  Sub stream D1(704*576)/VGA(640*480)/QVGA(320*240)
Video Frame 1-25(30)fps
Video Bit rate 32KB ~16Mbps,
Image Settings Support brightness, contrast, saturation, sharpness, white balance;AWB(Automatic white balance),AGC(Automatic gain),AE(Automatic exposure control);Support privacy area occlusion;OSDoverlay; Image rotation: normal 90°/270°automatic, manual orautomatic color to black and other switching methods
Face Comparison NVR
CPU Intel i3-6100U
Operate System
Storage 4GB
Network Cable Interface 1 RJ-45 Network Cable Interface(1000M)
Power Supply 12V/5A
USB 4 * USB *3.0 ;2 * USB * 2.0;
Display Output 2CH
Audio 1CH Audio Input/Output
Power Consumption Maximum 120W (With hard disk)
Hard Disk 1CH SATA Interface,each channel maximum support 10TB
Working Environment Temperature: 0˚C~60˚C;Humidity: 10%~80% (Non-condensing)
Size 225mm×200mm×80mm (L×W×H); mini Chassis
Weight 2.5Kg
