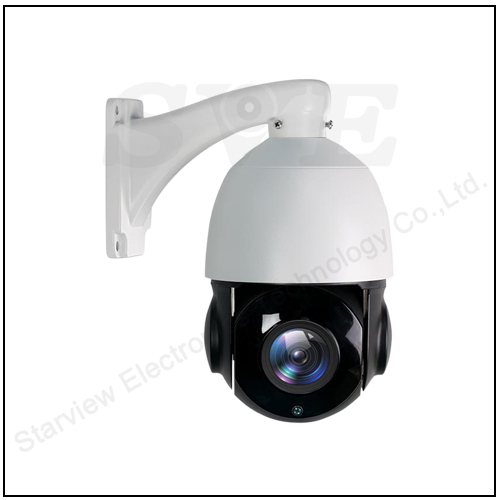

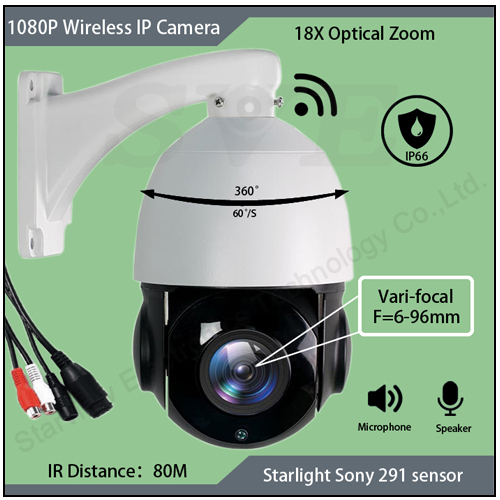

18X 2MP PTZ Wireless IP Camera

  • 1/2.8" Starlight HI3516CV200+IMX291 CMOS
  • Infrared distance 80M
  • 1080P 18X optical zoom 6-96mm LENS
  • Medium Speed Dome, Built in SD card
  • 360° rotation, the maximum speed up to 60°/S
  • 4.5 inches external POE separator, scalable WiFi, two-way audio Dialogue
  • Waterproof grade: IP66

Camera
Sensor 1/2.8" HI3516CV200+IMX291 CMOS
Resolution 1920*1080
Illumination Color: 0.05Lux/F2, B/W: 0.005Lux/F2, 0Lux(IR)
Image Flip/mirror
Exposure mode Auto
S/N > 50dB( AGC OFF)
2D DNR Support
BLC On/off
Electronic shutter 1/25~1/10, 000s
Synchronous Internal synchronization
Day-night mode Support IR-CUT color to black
Focus mode Auto/manual
Gain control Auto/manual
Lens initialization Built-in
Focus range 6mm ~96mm (Wide-Tele)
Pan angel 54.8°~3.4°(Wide - Tele)
PTZ
IR distance 80m
IR angle Three angle adjustable with zoom in/out
Pan speed 0.1°~200°/S
Tilt speed 5°~17°/S
Tilt range 0°~90°, auto flip 360°
Manual speed High/middle/low for adjustable
Proportional zoom Support
Preset 220
Patrol 8, each patrol can add 32 preset
Pattern 4, total record time more than 10mins
A. B preset scan Support
Park function Support, can select preset, patrol, pattern, A. B scan, pan auto running
LAN RJ45 interface
Others
Power supply DC 12V/2A
Power consumption Max 20W (not include the heat)
Working Temperature/Humidity -20ºC-60ºC, ≤90%RH(frostless)
Protection Grade TVS3000V lightning protection, surge protection and voltage transient protection, weather proof (for outdoor): IP66
Package dimension 223*160mm
Weight(Kg) 4.0KG
