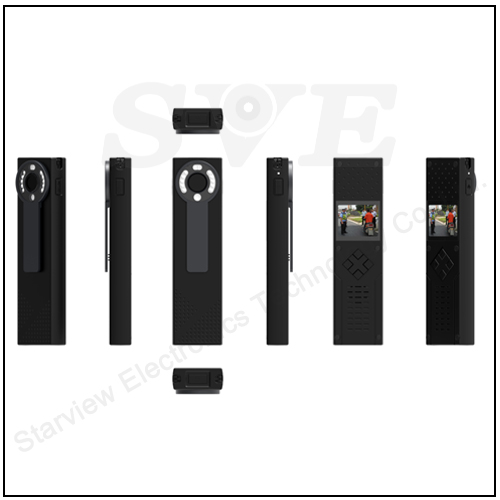

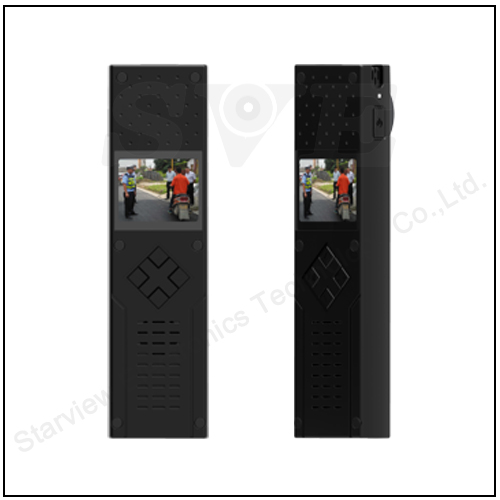

Pen Type Law Enforcement Recorder 3MP Zoom Wireless Portable Camera

  • The advanced master chip of master AI8328,AR330 is adopted,Min illumination industrial grade CMOS photosensor element
  • Video pixels up to 2304X1296 30 frames / sec camera, H.264 encoding
  • Take 20 million pixels, JEPG format
  • Built-in Wifi,Dual microphone design, high sensitivity, high signal to noise ratio recording function
  • One click playback allows you to quickly view videos and videos.
  • An extension of video recording, pre recorded, ensure that the process of law enforcement without missing any enforcement picture.
  • 10 infrared light,2 white light
  • Realize on-board mode, power on automatic video recording, cycle video
  • Single cell screen 1080P can record 3 hours and 30 minutes
  • HD 1.5 inch display,Horizontal perspective>=110°Oblique viewing angle:130°Diagonal Viewing:F/2.0
  • 16X optical zoom,Night vision, 5 meters visible human face
  • Interface types:Micro-SD Card Slot,currency HDMI mini 19PIN,USB2.0 mini 5PIN

Model SV-HD95A7
Master control AIT8328
Sensor AR0330 3.0MP COMS Sensor Built-in Wifi
Camera lens Horizontal perspective>=110°Oblique viewing angle:130°
Diagonal Viewing F/2.0
LCD HD 1.5 inch display
Sensor Resolution 2304*1296
Video Resolution 2304*1296 30P  /  1920*1080 30P / 1280*720 30P
Compression H.264
Video format MOV
Camera pixel 2.0MP Photo format:JPEG
Storage 16GB/32G/64G/128G
Battery capacity 1800 mAh
Interface types Micro-SD Card Slot,currency HDMI mini 19PIN,USB2.0 mini 5PIN
Size 140*20*35
Colour Black
Infra-red 10 infrared light,2 white light
Videotape Single cell screen 1080P can record 3 hours and 30 minutes
Enclosure USB line, power plug, CD, manual
Remote control Scalability
One click video Under the condition of shutdown, long press the video key can automatically boot and video
A key screenshot Video capture a key screenshot
Time-lapse photography After stopping the video, the machine can delay the video, the delay can be set according to the menu, the longest record of 300 seconds
WIFI Built in WIFI function
Three shooting According to the menu settings, can be continuous three
Vehicle mode Realize on-board mode, power on automatic video recording, cycle video
Recording double track Dual microphone, simultaneous video recording. Sound recording
Correction of correction Software has been adjusted for distortion
Cyclic video recording

When the machine is fully filled, the file loop is covered
Zoom function 16X optical zoom
Laser positioning Matching
Infrared night vision Night vision, 5 meters visible human face
