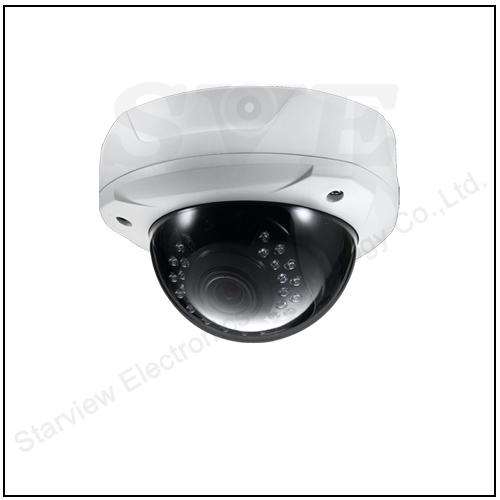

2MP IR Dome Camera Vandal-proof HD-SDI/EX-SDI/AHD/TVI/CVI/CVBS

  • 1/3 inches progressive scan 2.1MP Sony CMOS sensor
  • 1080p (1920*1080) at 25/30fps
  • Dual output-megapixel HD-SDI (BNC) and CVBS 1.0Vp-p 750hm
  • Supports WDR, 3D-DNR, digital zoom 16x
  • 2MP 2.8-12mm lens
  • OSD menu, motion detection, privacy zone, HLC, BLC
  • AWB/ATW/PUSH/manual
  • Output: HD-SDI/EX-SDI/AHD/TVI/CVI/CVBS
  • 30M IR distance with 36 pieces Ø5 LED lights
  • Vandal-proof: IK8
  • Weather-proof: IP66
Model SV-D832S20EAC
Video
Imaging device 1/3"progressive scan Sony CMOS sensor
Effective pixels  (H) 1920 * (V) 1080
Video frame rate PAL: 25fps
NTSC: 30fps
Sync system Internal synchronization
Min illumination Color 0.01Lux at F1.2, 0Lux IR on
S/N (Y signal) 50dB
Video output BNC: HD-SDI/EX-SDI/AHD/TVI/CVI/CVBS
Transmission distance Up to 500 meters loss less transmission with 75-3 coax
Day and night Auto ICR cut
Backlight compensation Auto
White balance Auto
Electronic shutter AUTO/ 1/50 (1/60)-1/100,000 sec
Lens
Focal length 2.8mm-12mm varifocal lens (optional)
IR LEDs IR distance 30M with 36 pieces Ø5 LED lights
Other
Weather-proof IP66
Vandal-proof  IK8
Operating temperature -10 to +50C RH 95% max
Storage temperature -20 to +60C RH 95% max

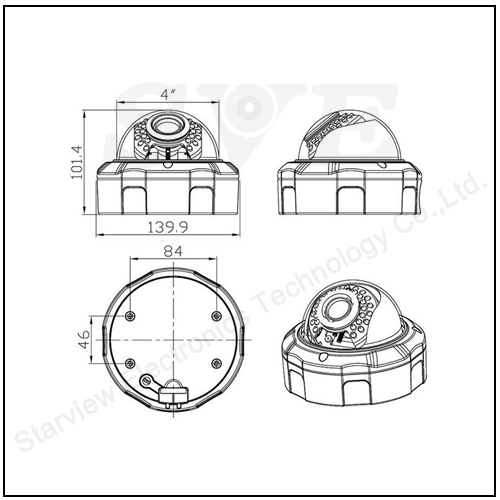

Dimensions  Ø140*110mm
Weight 0.65kg
Electrical
Input voltage 12V DC 10%
Power consumption 12V DC/100mA
