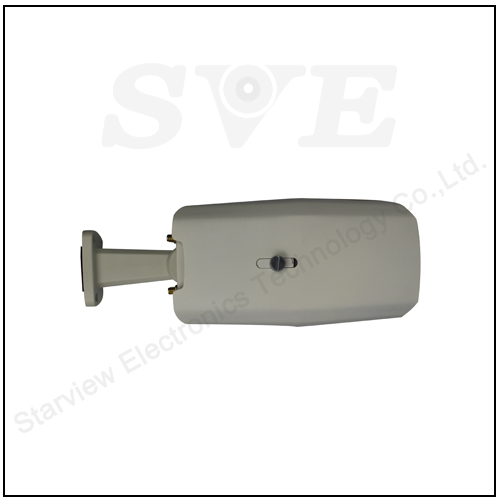

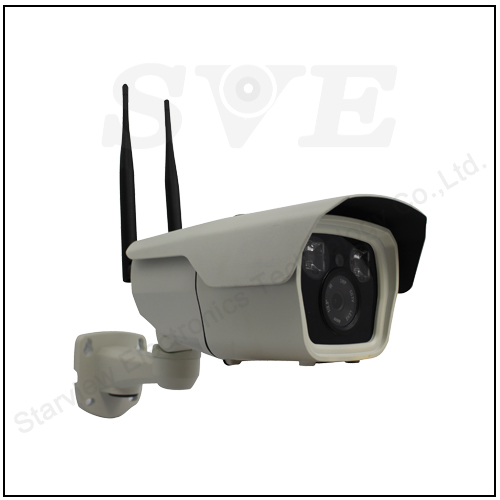

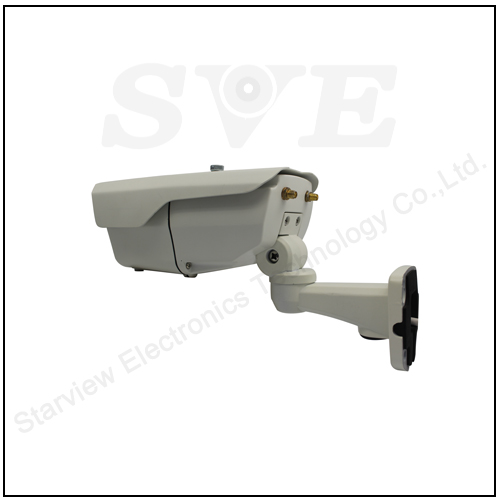

CCTV Waterproof WiFi 3G 4G SIM Card Security IP Camera
  • 2.0Megapixel. 1080P.
  • 2.8-12mm auto IRS  lens,
  • IR view distance: 50m(2pcs 42mil array LEDs)
  • Motion detection, email alert, FTP upload
  • iPhone, 3G phone, Smartphone supported
  • Multi-language, Firefox, Safari, Google browser
  • Built-in IR cut, no color cast.
  • P2P, PNP: Plug & play, SUPPORT QR code scanning to view on iPhone and Android mobiles
  • No need to connect power adaptor, not only security, but also energy saving.
  • When temperature of the sunshine keeps higher than 33°C, the battery can work continuously.

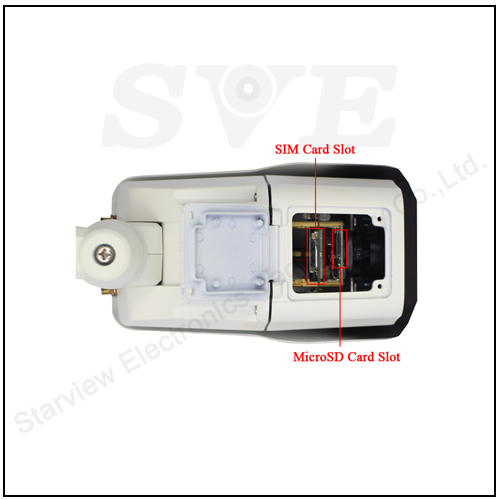

  • Support SIM card, 3G/4G.
  • Support TF Card slot max 64GB



Model SVN-WH3820WG
Camera
Image Sensor 1/2.8" SONY323 low lux CMOS
Resolution 1080P/1920*1080
Lens 2.8-12mm
IR Distance 50 Meters at most
Min. illumination Color :0.01Lux/F1.2; B/W :0.001 Lux/F1.2
Infrared LED 2pcs array IR LEDs
IR Cut filter Auto
TF Card Support Max 64Gb
Network
P2P Yes
Onvif Yes
Video Processing H.264, dual stream, AVI format, 0.1M ~8Mpbs bit rate adjustable
Frame Rates support 1~30fps adjustable
Network 1* RJ45,10/100M,
Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
4G
4G standard FDD-LTE
Frequency range B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)
Transmission Rate Upload max:50Mbps, download max: 150Mbps
Security WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
3G
3G standard WCDMA
Frequency range B1(2100MHz), B8(900MHz)
Transmission rate Upload max:5.76Mbps, download max: 21Mbps
Security WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
General
Power Requirement DC12V 2A
Waterproof Level Waterproof IP66
Material Aluminum
Installation Rack mounting
Operating Temperature -10°C -- +60°C
Operating Humidity 10%~90%
Dimensions 185x93x62(mm)
Pack  Dimensions 215x155x105(mm)
Pack weight 1.0KG
