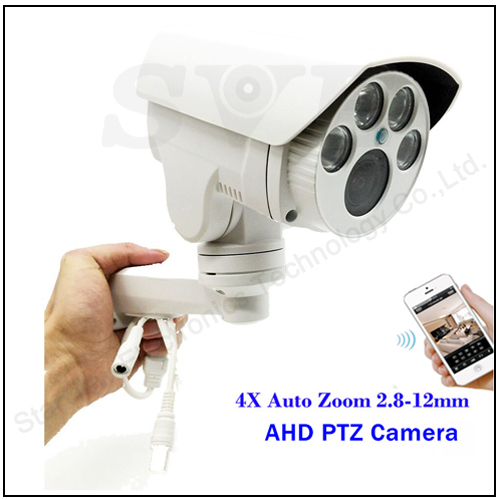

Analog Full HD 1080P/960P 4X Auto Focus Zoom 2.8-12mm Varifocal Lens High Definition Camera
  • 1080P 2.0MP AHD camera
  • NVP2441+IMX322
  • Low illumination
  • 4pcs array LEDs, 60m IR distance;
  • Standard: 4X, F=2.8-12mm;
  • 10X; F=5-50mm is extra charge 31USD;
  • Color: White;
  • Unit weight:1.2kg;
  • Unit box dimension: 20x18x13cm;
  • Communication: RS485
  • Rotation range: Horizontal 260°unlimited
  • rotation, vertical 60°;
  • Low illumination: Good for dark place
  • 1080P 2.0MP camera works with 1080P AHR;



Model No. SV-AHD26DZ
Image sensor 1/2.8" CMOS
Horizontal resolution 1080P
Optical focus 4X
Focus length 2.8-12mm
Minimum illumination 0.01Lux @(F1.6,AGC ON), 0 Lux with IR
IR distance 60M
Video compression H.264
Signal model 50HZ:25fps(1920 X 1080) 60Hz:30fps(1920 X 1080)
Day and Night ICR
Electronic shutter 1/25s ~ 1/100000s
DNR 2D/3D-DNR
Horizontal range 0°~260°
Vertical range -5°~60°
Horizontal speed 0.5°~12°/ s
Vertical speed 0.5°~12°/ s
Presets 255
Cruise track 8 groups, each group for 16 presets
Patrol track 4 groups, each group record 3 mins
Protocol PELCO-D/PELCO-P
protection level IP66
Bracket Wall mounted
dimension 153mm×93mm×130mm(L×W×H)
Weight 920g
Power DC12V/2A
Work temperature -30ºC~60ºC
