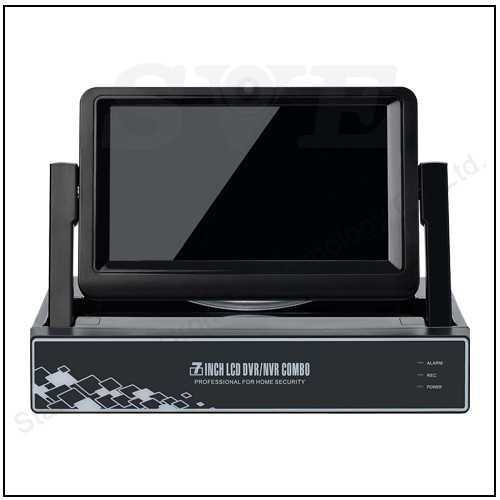

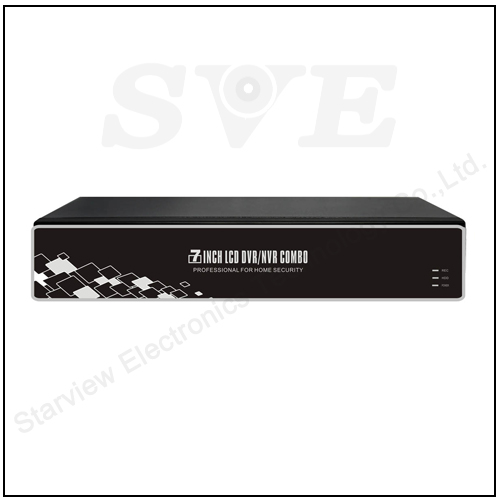

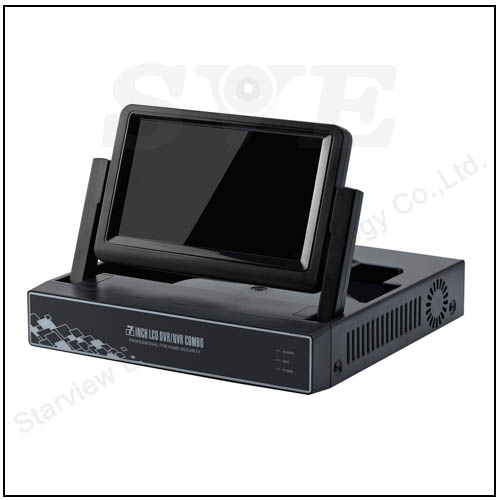

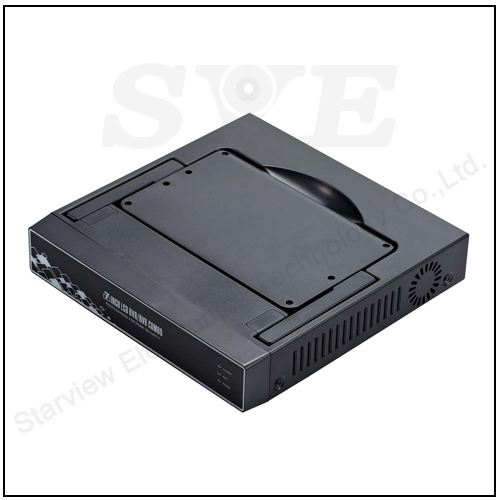

Surveillance 4CH 1080P P2p Video Onvif NVR with 7 Inch LCD

  • DC TIMES NVR system is special designed with 7" LCD monitor to realize review your footage easily on the built-in monitor which saves you huge cost for a separate monitor. Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage.
  • CMS Software for multiple NVR system (up to 255 DVR simultaneously)
  • Playback quality: real-time coding synchronously, real-time multi-channel playback synchronously.
  • This NVR system support mobile monitor such as (iPhone, Android,iPhone, iPad, Mini Pad, android phones)
  • Support multi-browser(IE,Chrome,Firefox,Safari.)
  • Support 28 languages: English, Arabic, Russian, Franch, Spanish, German etc.
  • Support HDMI, VGA output.
  • Easy backup: USB devices, network download
  • Cloud Technology make easy remote view by internet and mobile.
  • It is 4CH NVR system, connect camera by internet cable. Provide final user a convenient and economy NVR system.
  • Support zoom any area selected by the mouse.
  • Support 1 SATA  4TB hard disk.
  • Support smart search in the self-defined areas in the playback of the recording.
  • Applied in large surveillance area such as home, office, bank, supermarket, gas station, factory etc.
  • It is a special designed and developed professional portable DVR, with excellent and high performance hardware and software.
  • All software are included in the CD, very easy remote network surveillance
Main processor Hi3515C
Operating system Embedded LINUX operating system
System resources Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Operator interface 16-bit true color graphic menu operation interface,
support mouse operation
Preview 1/4 screen
Video input (IP) 4ch 1080P/ 8ch D1
Video compression H.264
Display quality Max1920*1080
Playback quality 1080P/D1
Decode 1ch1080P
Motion detection Support(depend on camera)
Audio compression G.711A
Record & playback
Intercom Unsupport
Recording mode Manual>Alarm>Dynamic Detection>Timing
Local payback 1*1080P;4*720P
Storage & Backup
Search mode Search by Time/Calendar/Event/Channel
Space occupation Video:CIF 4~5G/day*channel, D1 8~10G/day*channel;960H
720p 20~30G/day*channel; 1080P~40G/day*channel
Audio: 691.2M/day*channel
Record storage HDD,Network
External interface
Backup mode Network backup, USB hard disk, USB burner, SATA burner
Video output 1ch HDMI output
Audio I/O 0/0
Alarm I/O 0/0
Network interface 1*RJ45 10M/100M, self-adaption
USB interface 3*USB2.0
PTZ control Control PTZ device by network
ONVIF Support
Power supply 12V/3A
Power Consumption <15W(Without HDD)
Operating temperature -20ºC ~ +55ºC
Weight 2.5KG
