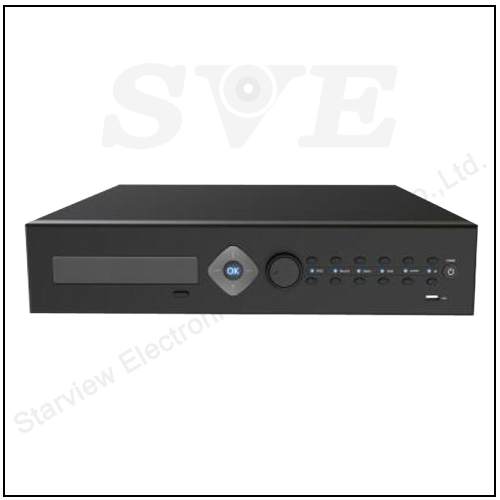

32CH 5MP 8HDD Security H. 265 HD CCTV NVR

  1. Support VGA, HDMI 4K output ;
  2. Support web, CMS, center platform management software MYEYE,provide SDK development;
  3. Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
  4. Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP,UPNP, EMAIL, 3G, WIFI, IP searches, Alarm Center, etc.);
  5. Visit remotely,built-in ARSP,achieve star up by one step

Model SV-NVR8032K-Q
System
Main processor Hi3536
Operating System Embedded Linux
System resources Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface
Operator interface 16-bit true color graphic menu operation interface, support mouse operation
Preview 1/4/8/16/24/32
Video
Video input (IP) 8*4K/32*5M/16*3M
Access bandwidth 384Mbps
Forwarding bandwidth 307Mbps
Video compression H.265/H.264
Display quality Max:4K
Playback quality 4K/5M/3M
Decode 2*4K/4*5M/8*3M
VR unsupport
Motion detection Support(depend on camera)
Audio
Audio compression G711A
Intercom support
Record and playback
Record mode manual>alarm>motion detection>timing
Local payback 2*4K/4*5M/8*3M
Search mode Search by Time/Calendar/Event/Channel
Storage and Backup
Record storage HDD,Network
Backup mode Network backup, USB hard disk, USB burner, SATA burner

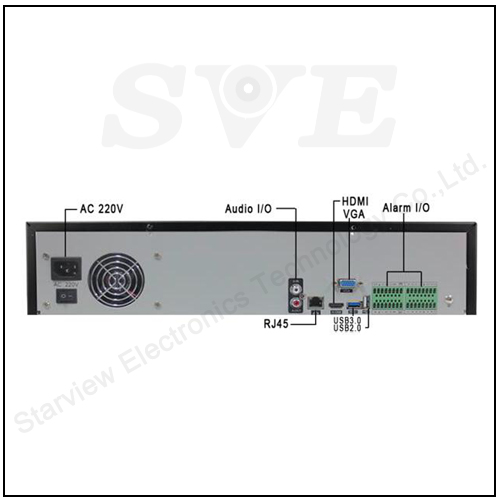

External interface
Video output 1ch VGA,1ch HDMI HD output
Audio I/O 1/1
Alarm I/O 16/4
Network interface RJ45 10M/100M self-adaptive Ethernet port
USB interface 1*USB2.0 port,1*USB3.0 port(Reserved 2 pre interface)
HDD 8*SATA(Up to 8TB for each disk)
General
PTZ control Control PTZ device by network
ONVIF Support
Power supply ATX
Power Consumption <10W(Without HDD)
Work environment Temperature:0ºC-+55ºC , Humidity:10%-90%RH , Atm:86kpa-106kp

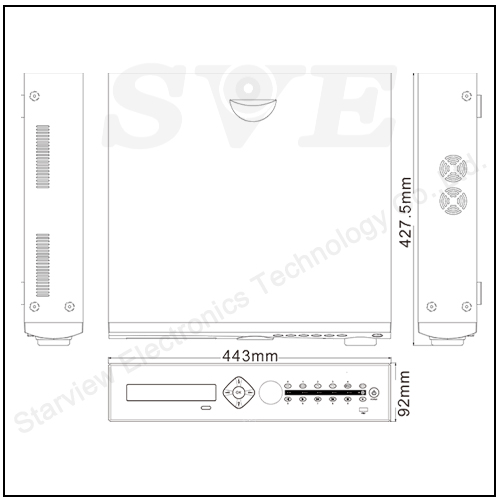

Dimension L443*W427.5*H92MM
Weight 6.0KG
