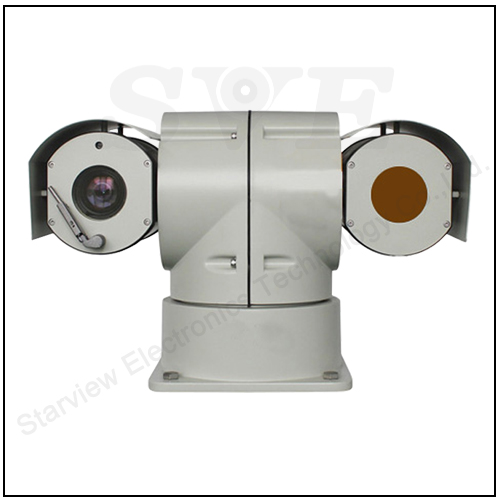

Mobile Rugged Dual sensor PTZ camera
Rugged Dual sensor PTZ camera
Key Features
  • Dual sensor optical and thermal integrated ONVIF IP PTZ system
  • 1920x1080 progessive scan CMOS day/night network Camera
  • 39x Optical 8-315mm HD IR-corrected continuous zoom lens
  • Optical field of view from 39° to 1°
  • User defined WDR,HLC,BLC,AWB,Dehaze/Defog via web client
  • 640x480 or 320x240 Gen II 17μm VOx uncooled thermal imager
  • 26mm-75mm f1.0 continuous zoom motorized germanium lens
  • Up to 2.4Km human detection and 7.3Km vehicle detection with thermal
  • Extreme heater/blower for operation in -45℃ to 60℃
  • Optically pure flat viewing window
  • Intergrated mechanical infrared cut filter for absolute clarity
  • Micro-step technology for quick,accurate pan/tilt better than 0.1°
  • Rugged IP66 military grade design with secure military cable connectors
  • Military Connector supplies video,power and telemetry over 1 cable
  • Designed for fixed,marine and mobile applications

Optical Camera Assembly 39X 1080P IP 30X 1080P IP
Image Sensor 1/2.8"Exmor Progressive Scan CMOS 1/3"Progressive Scan CMOS
Resolution 1920x1080 Full HD
Frame Rate 30fps
Minimum Illumination Color:0.05 Lux/ B&W:0.0008 Lux Color:0.05 Lux / B&W:0.005Lux
Shutter Speed Auto:1/50-1/10000 Sec
Lens 8-315mm HD Continuous Zoom Lens 4.3-129.5mm IR-Corrected Continuous Zoom Lens
Field of View 37°-1° Horizontal FOV 58°-2.2° Horizontal FOV
Zoom 39x Optical,16x Digital,624X Total 30X Optical,16X Digital,480X Total
Auto-Focus Yes
Thermal Camera Assembly 320x240 Imager 640x480 Imager
Image sensor Uncooled Vanadium Oxide Microbolometer,9Hz or 30Hz
Picture Elements 320x240 pixels 640x480 pixels
Scene Temperature -40℃ to +160℃(High and Low Gain)
Pixel Pitch 17μm(32% sharper image over 25μm sensors)
Lens 26mm-75mm motorized germanium zoom lens(35mm,50mm,&100mm fixed lens options available)
Field of View 23.6°-8.4°Horizontal FOV 11.8°-4.2°Horizontal FOV
Image Optimizations DICE,BPR,NUC,&AGC'd user configurability via SDK,GUI
Digital Zoom 2x&4x dynamic zoom/pan with range switching 8x dynamic zoom/pan with range switching
Spectral Range 7000-14000nm
Thermal Sensitivity 50mK
Image Display Modes White Hot,other color palettes available upon request
Communication&presets
Presets Up to 128 presets,4 preset tours
Home Position Yes(preset1 or tour)
Serial Control RS485/RS422(optical),Pelca-P/D Standard
Ethernet ONVIF profile -s(other available)
Mechanical
Drive Unit Integrated micro-step resolver
Pan/Tilt 360°Continuous Pan up to 40°/sec 40°Tilt up to 30°/sec
Preset Accuracy 0.01°(Micro-Step)with closed loop control
Proportional P/T to Zoom Position Yes(Automatic adjust speed with zoom for accurate pan-tilt)
Physical
Construction High Strength Aluminum Alloy(salt spray PH 6.5-7.2)
Standard Colors White(black optional)
Weight -7.5kg(DOC)
Viewing Window Flat Glass(visible camera)&Germanium(thermal Camera),optional bullet proof
Environmental
Operational Temperature -40℃ to +60℃
Envieronmental IP 66,NEMA 4X Outdoor Weather Ring,Viewing Window Wiper on 30X version
Electrical
Input Voltage 24VAC or 24VDC(optional)(CE,ROHS,FCC)
Power Consumption Max 80W(heater on),40W(without heater)
