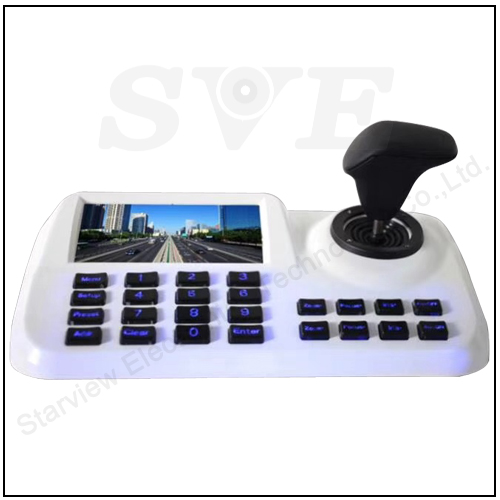

Network Keyboard
- ONVIF2.4 compatible
- 5"colorful LED display
- Plug and Play,automatically add and distribute IP address
- 3D jostick
- Support USB and HDMI output
| SVN-MG120 Specifications | |
| Product | Network Keyboard |
| ONVIF | 2.4 |
| Control way | Network |
| Power Supply | DC12V/2000MA |
| Operating Humidity | ≤90% Non Condensing |
| Interface | 1xRJ45 , 2xRS485 (reserved) , 1xDC12V power , 1xHDMI , 1xUSB |
| Baud Rate | 9600bps |
| Joystick | Vector variable speed joystick |
| Display screen | 5'' LED |
| Communication Distance | depend on network cable |
| Control Camera Quantity | No limited (single screen display ) |
| OSD Menu | English |
| Operating Temperature | -20℃～+55℃ |
| Product size | 260mm*160mm*48mm |
