Smart PIR 4G outdoor IP Solar Camera

  • No electricity connection:powered by solar and built in battery;
  • No wiring:no drilling,no decoration damage;
  • Support full band 4G,needs to choose the version;
  • Remote control: anywhere,any time;
  • HMD:motion detected,filming activated;
  • Privacy Protection:Local storage, no leakage;
  • Induction lamp:human detected,lamps auto activation;
  • Simple installation:DIY installation;
  • application scenarios:Gate,House,Fish Pond,Orchard,Farm,Mines,Construction Site,Etc.
Product 4G Solar Camera
Model SVN88-184G
Color White
Induction principle HMD(Human Motion Detection-microwave)
Main Chipset Hi3518EV200  ARM926@540MHz,32KB I-Cache,32KB D-Cache
Sensor type PS5230  2.0MP 1/2.7" CMOS
4G module Qualcomm MDM9x07
4G frequency Support full band 4G,needs to choose the version
SIM card Nano SIM
Effective Pixels 2.0MP
Image size 1920*1080
Video compressed H.264
Focal length 3.6mm(Optional 2.8mm/6mm/8mm/12mm)
Photographic distances 0-15meters
Shooting angle 70º
Response time 0.6S
Battery capacity 10400mAh
Solar panel power 5.5W(5.5V/1000mA)
Max Charge Current 1000mA
Night mode White light+infrared
White light power 1.5W  LED     0.75W*2
Infrared power 1W   LED    0.5W*2
Storage Support TF Card 4GB-64GB
Storage capacity 32G/60days
Induction range 0-10m
Detection angle 110º
Working temperature -20℃ to 60℃
Working humidity 0%-90%RH

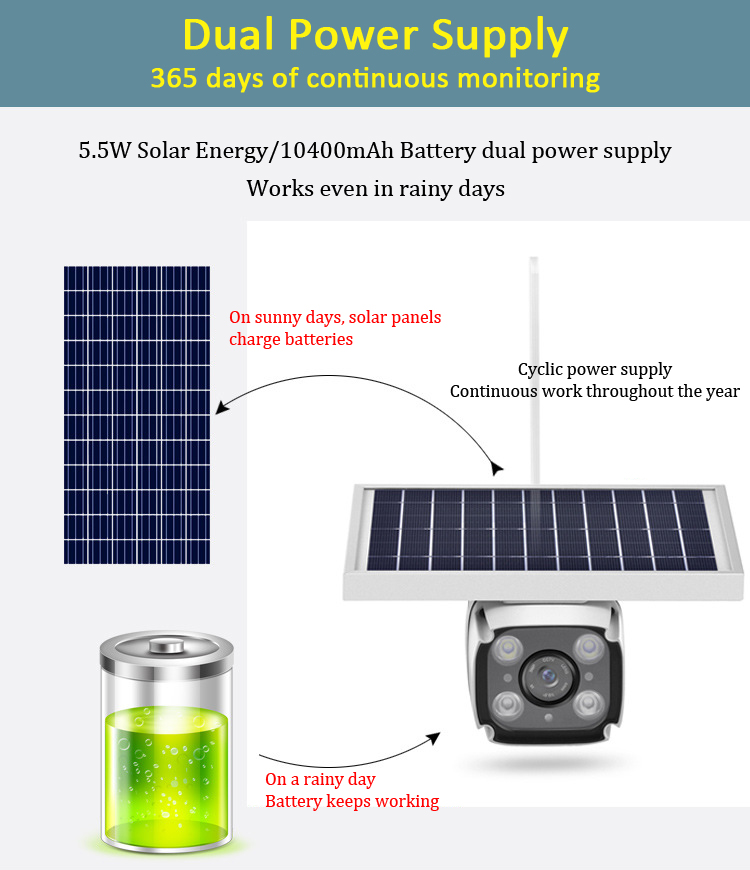

Power supply solar+battery
Stand-by power consumption around 0.05W
Work power consumption Daytime≤2W,Night version≤2.75W
IP rating IP67
Accessories Camera* 1, Mounting bracket* 1,Screw package * 1,  Manual * 1,USB cable*1
Product size 235mm*240mm*115mm
Product weight 1.4kg
Packing size 274mm*259mm*134mm
Packing weight 1.85kg
carton size 695mm*535mm*295mm
Gross weight 20kg
Case Qty 10/box
