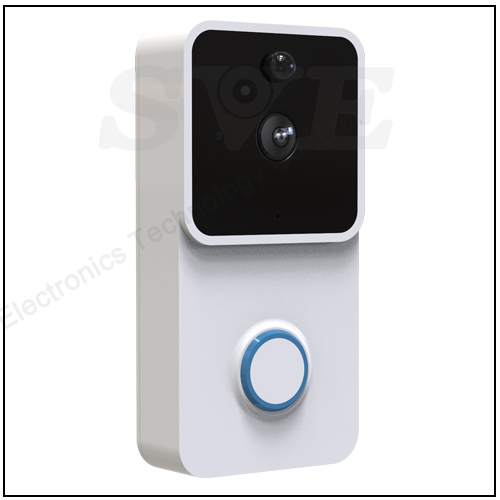

SmartHome Wireless Video Doorbell
Specification:

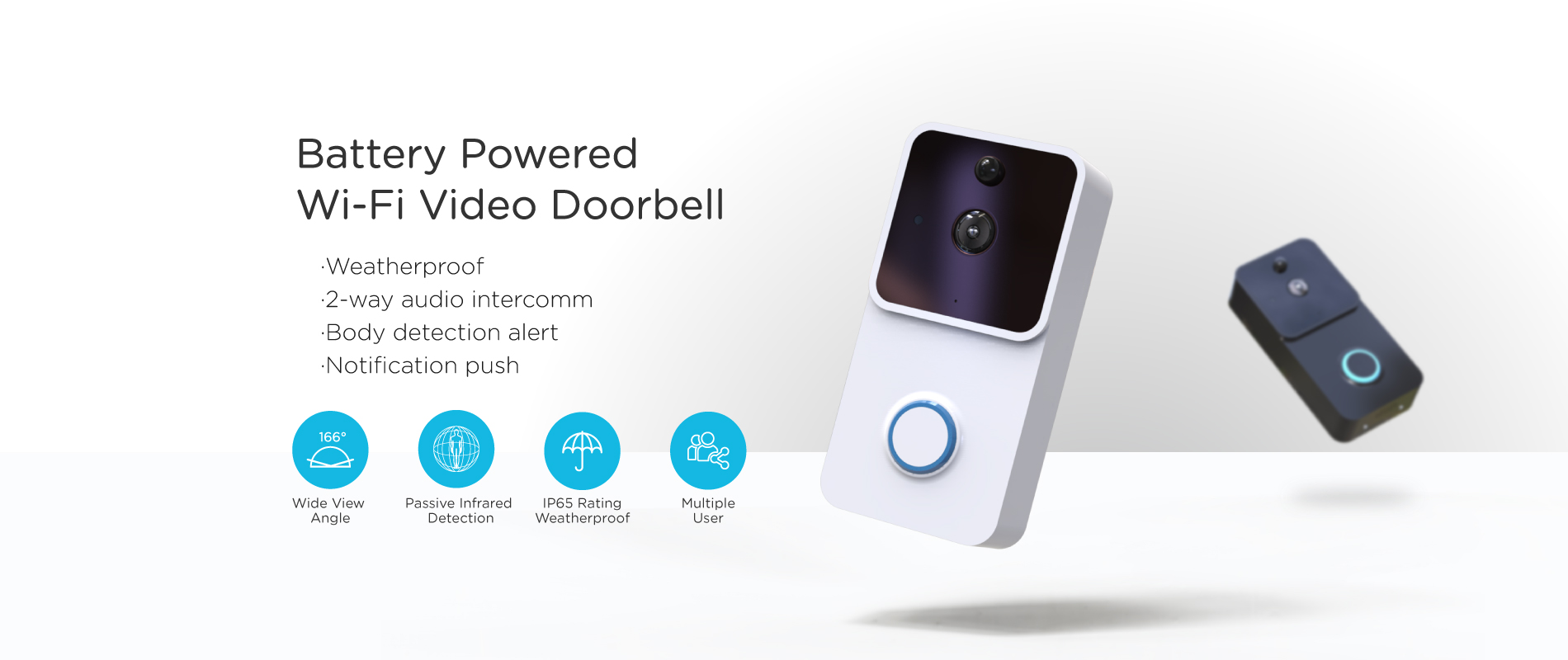

- Wireless Battery Powered Smart Video Doorbell
- Low power consumption, 8-10 Month's battery life (2 × 18650 Batteries)

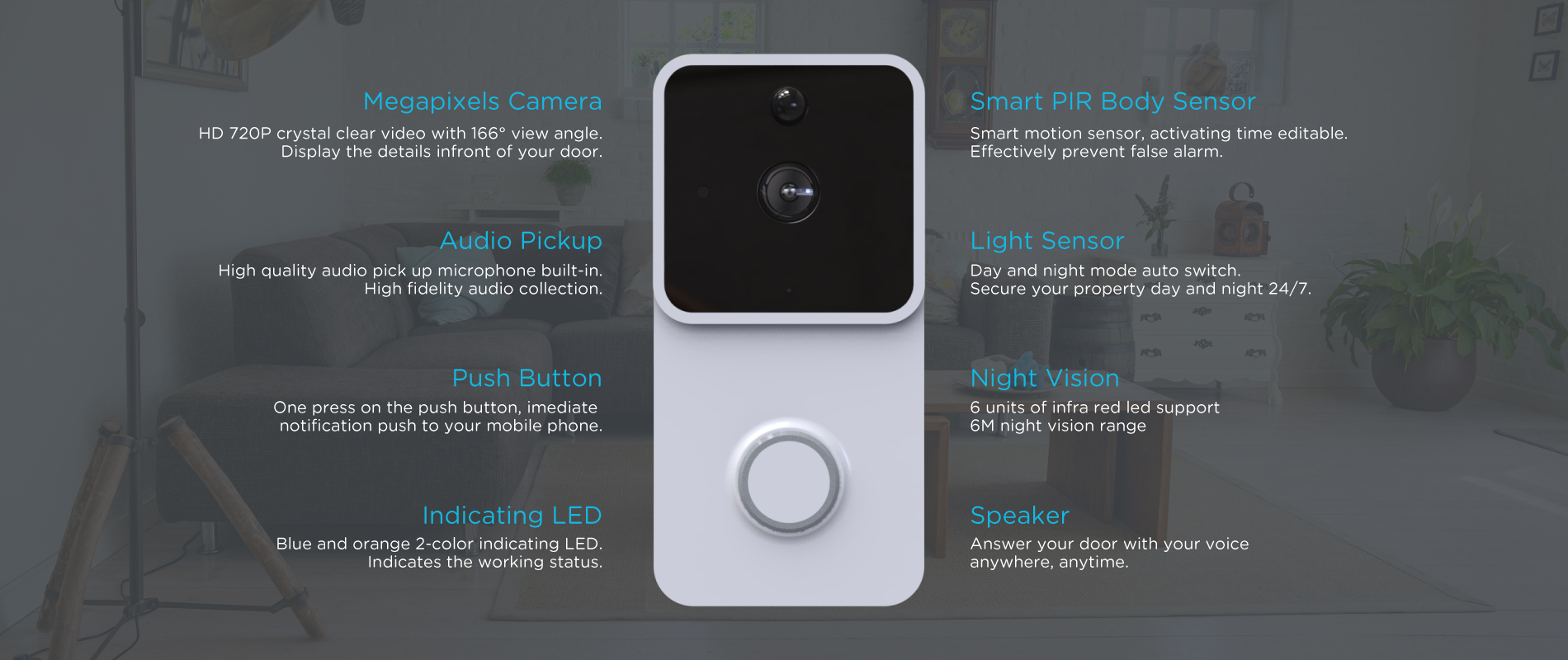

- HD 720P Video Quality, support night vision, camera view angle covers 166°
- WDR, HLC, BLC, Motion Compensation, Quick Access by Smartphone
- PIR motion sensor with 120° detection angle , accurate motion detection

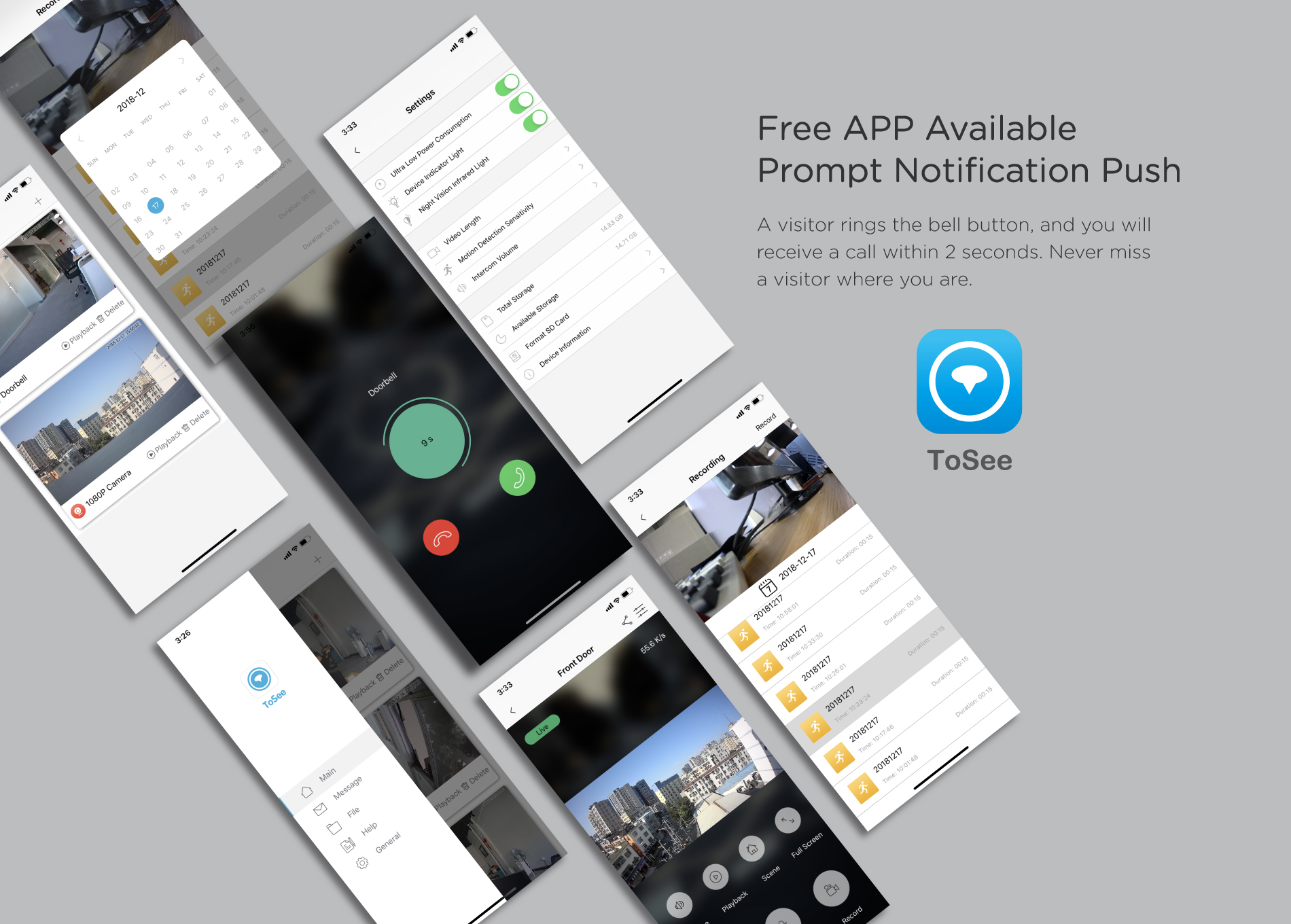

- Support WiFi, Free P2P cloud service, push alarm to mobile via APP.
- Support 2-way audio communication, answer your door whereever you are.
| Model NO. | SV-DB709 |
| Camera | |
| Solution | OV9732 CMOS Sensor + Hi3518E SoC |
| Resolution | 720P (1280×720px) |
| Field of View | 166° Wide Angle |
| Night Vision | 6 IR LEDs, 5m (16ft) Night Vision |
| Video | |
| Video Quality | HD 720P @ 25FPS |
| Scene Option | BLC, IR, HLC, Motion Compensation, WDR |
| Motion Sensor | Smart PIR Sensor (Sensitivity Editable) |
| D/N Mode | Auto switch by Light Sensor |
| Audio | |
| Pickup Device | Internal Microphone |
| Pickup Range | 5 meter |
| Audio Output | Speaker |
| Type | 2-way Audio with Noice Cancellation |
| Connection | |
| Network | 2.4GHz WiFi (IEEE 802.11 b/g/n) |
| OS Require | iOS (v7.0 or newer) or Android (v4.0 or newer) |
| Storage | |
| Memory Device | 8GB Class10 High-speed TF-card Preinstalled |
| Storage Capacity | Max Support 32GB TF-card |
| LED Indicator | |
| Red LED Blink | Power OK, Waiting for WiFi Connection |
| Blue & Red Blink | WiFi Setting Succeed, Waitting for APP Connection |
| Blue LED Blink | Power & Network OK, Device in Working Status |
| LED OFF | No Power / StandBy Mode |
| Power | |
| Power Type | Rechageable 18650 Battery or Hardwire AC8V-24V |
| Consumption | Working mode: 170mA Standby Mode: 200μA |
| Packing | |
| Dimensions | L67mm x W38mm x H136mm |
| Packing Size | L185mm x W106mm x H78mm |
| Weight | 450g |
| Working temperature | -20℃ to 55℃ |
| Relative humidity | 85% non-condensing |
