Mini COFDM HDMI Transmitter

Key Features
  • The machine is small in size and light in weight
  • Easy to carry (hide, disguise)
  • It has strong anti-interference ability and non line of sight diffraction ability
  • Wide voltage input DC7-16V
  • The system adopts H.264 digital video coding standardClear picture to HD 1080p effect
  • Use COFDM ( Coded Orthogonal Frequency Division Multiplexing:Coded orthogonal frequency division multiplexing
  • Diversity dual antenna reception, so that the real-time image clearer and smoother

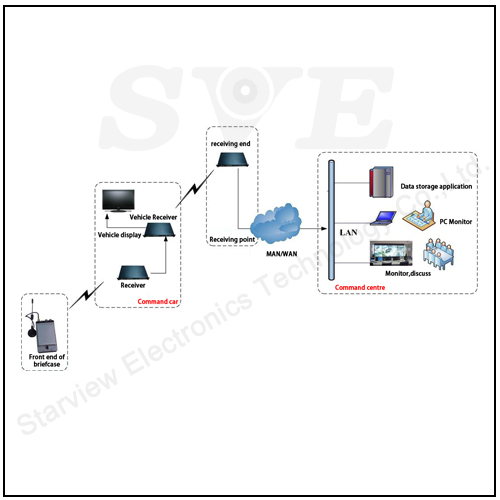

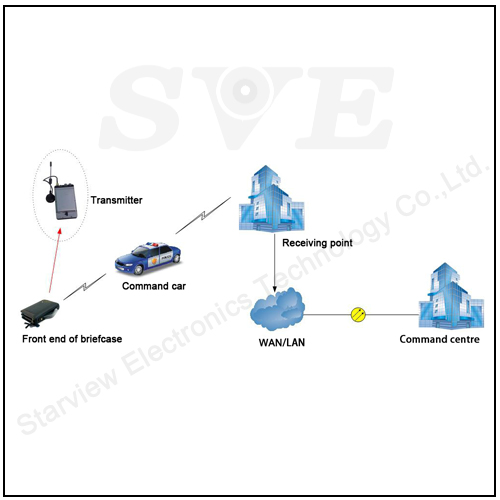

  • Applicable to the scene of the scene to monitor the car and other places. The volumesmall may do to camouflage equipment forensics, air operations, UAV image transmission wireless image transmission.

Technical parameters

Model SV-CF710A-P

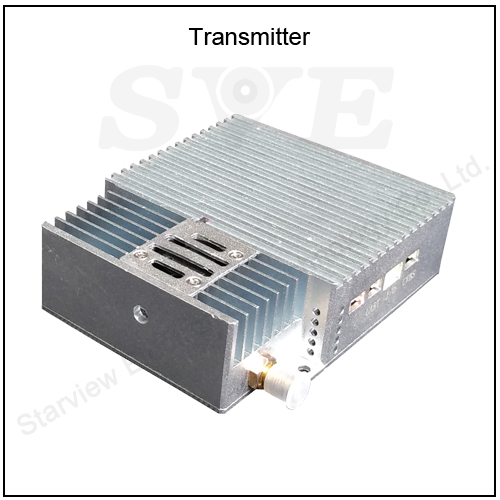

Transmitters
Working frequency 300MHz~2400MHz,Frequency customization
RF power ≤33dBm,1dB Stepping
Channel bandwidth 2-8MHz Stepping
FEC 1/2,2/3,3/4,5/6,7/8
Protection interval 1/32,1/16,1/8,1/4
Stream 2Mbps~12Mbps
Time delay ≤200ms
Compressed format H.264
Transmission distance Ground sight distance≥2KM,Air-to-ground≥30KM,NLOS≥100M
Audio/Video interface Mini HDMI,CVBS
Image HD1080P,Downward compatibility1080I,720P,480P,SD
Image frame 24、50、60/S,Compatible with other frame rates
Power DC12,External power supply
Power consumption 14W
Size specification 92*74.5*25.5mm
Weight 160g

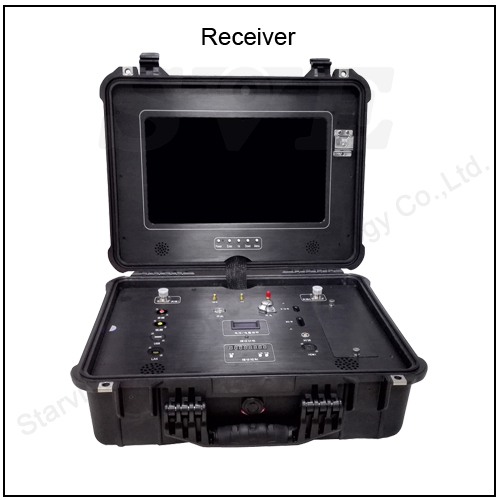

Portable receiver
Working frequency 300MHz~860MHz,Frequency customization
Channel bandwidth 2/3/4/5/6/7/8MHz Stepping
Modulation technique COFDM
Sensitivity 2MHz:-103dBm;2.5MHz:-102dBm;4MHz:-100dBm;8MHz:-97dBm
Receiving technology Spatial diversity technique
Time delay 200ms
Receiving polarization Vertical polarization, dual antenna reception
Compressed format H.264
Image HD1080P,Downward compatibility1080I,720P,480P,SD
Image frame 24、50、60/S,Compatible with other frame rates
Storage hard disk 1T
Frame 1 picture
Display Size Maximum 15.6 inches (customized according to customer requirements)
3G/4G/GPSLocation Optional
Video Output 1 way HDM,1 way AV, 1way RJ45,2 way USB
Power DC12V,Special charger
Battery endurance More than 4 hours
Size specification 450*370*184mm(L*W*H)
weight 10Kg


System list
Micro transmitter*1 HDMI Line*1
Portable receiver*1 Receiver power supply*1
Transmitter power line*1 Transmitting antenna*1
Antenna sucker*2 Receiving antenna*2
