16CH 8CH
NVR3200-P8 Series
Model SV-NVR3208-JS SV-NVR3208-P8/JS SV-NVR3216-JS SV-NVR3216-P8/JS SV-NVR3224-JS SV-NVR3224-P8/JS
OS Embedded Linux
Video&Audio input
Incoming bandwidth 80Mbps 96Mbps 160Mbps
Outgoing bandwidth 80Mbps 80Mbps 80Mbps
IPC Input 8CH 24CH
Audio In 1CH,RCA(Line out,2Vp-p,300ohms)
Video&Audio output
CVBS 1CH,BNC(1.0Vp-p,75ohms)
VGA 1CH,1920×1080,1280×1024,1280×720,1024×768
HDMI Standard 1.4a,3840×2160,1920×1080,1280×1024,1280×720,1024×768
Audio Output 1CH,RCA(Line out,2Vpp,300ohms)
Video&Audio encoding
Audio Compression G.711A
Audio Bit Rate 8Kbps(16bit)
Video&Audio decoding
IP channel Resolution
Main stream:Up to 3840×2160,Auxiliary stream:D1
Video decoding H.265(Main Profile@Level5.0)/ H.264(High Profile@Level5.1)
Audio decoding G.711A,G711U,G726
Synchronous Playback Up to 8CH Up to 16CH
Decoding Ability 8CH 720P@30FPS or 4CH 1080P@30FPS or 1CH 4K@30FPS
Intelligent Analysis 1CH Face detection or 1CH Perimeter detection,Up to 1080P N/A
Other Function
Bidirectional Talk Two-way voice intercom function
Motion Detection Zones: 396(22*18),Sensitivity: 1~6 (level 6 is highest)
Picture Capture Support JPEG Capture
HDD Interface
SATA 2 SATA Interfaces
Max Capacity Unlimited
POE Interface
POE Interface N/A 8CH N/A 8CH N/A 8CH
IEEE 802.3AT IEEE 802.3AT IEEE 802.3AT
RJ45 10M/100M self-adaptive RJ45 10M/100M self-adaptive RJ45 10M/100M self-adaptive
Power N/A ≤90W N/A ≤90W N/A ≤90W
External Interface
Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB Interface 2 USB2.0 Interfaces
Alarm In
Alarm Out 4CH,NO/NC
RS-485 1 RS-485 interface
Dimensions 405x335x120mm
Front Panel JS

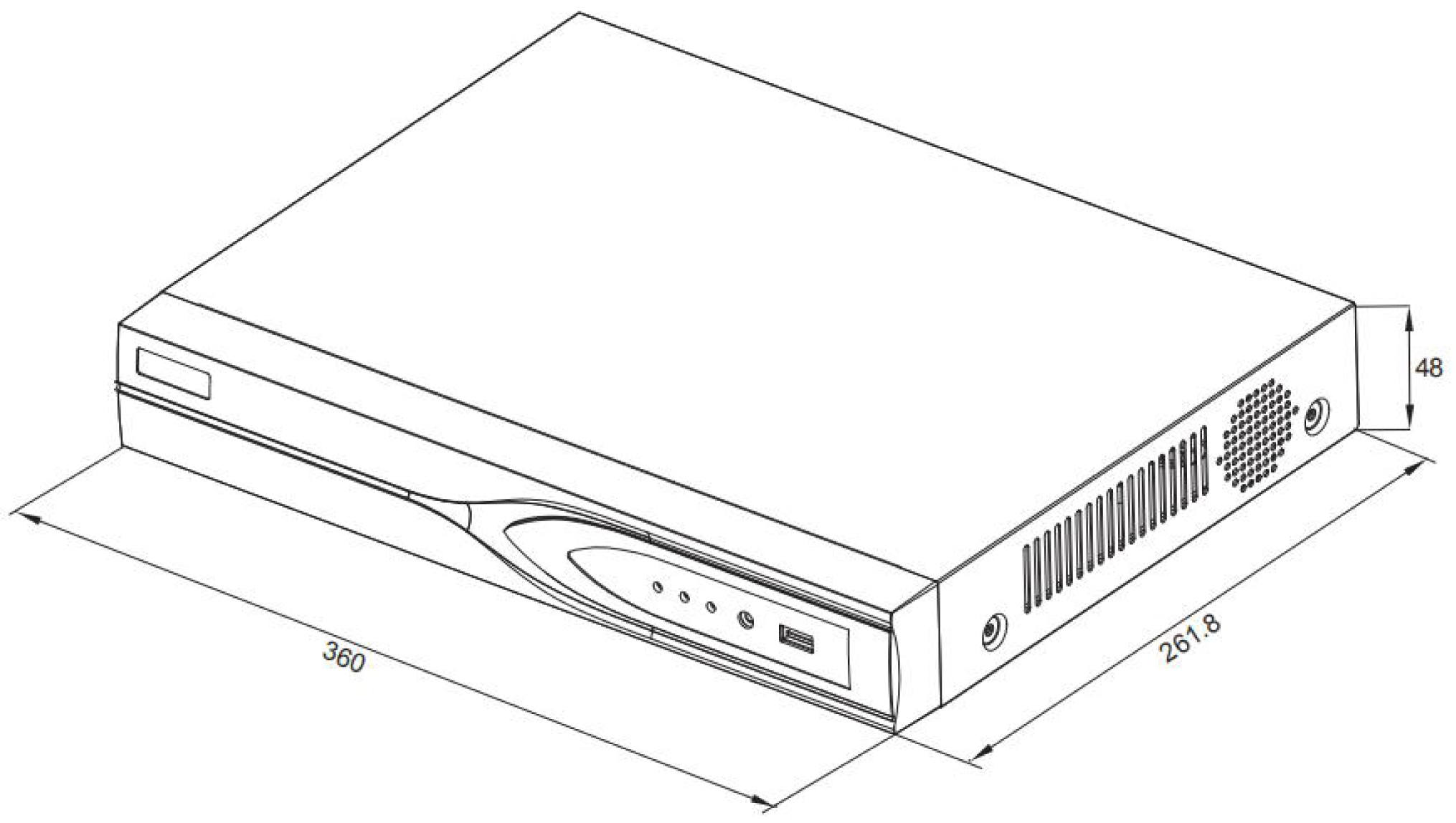

Size 1U,360x262x48mm
Weight 2.3Kg (Without HDD) 3Kg (Without HDD) 2.3Kg (Without HDD) 3Kg (Without HDD) 2.3Kg (Without HDD) 3Kg (Without HDD)
Installation Desktop Installation
Power Supply DC +12V 3A DC +48V 1.875A(POE) DC +12V 3A DC +48V 1.875A(POE) DC +12V 3A DC +48V 1.875A(POE)
Working Temperature -10℃--+55℃
Working Humidity 10%--90%
Consumption 6W(without HDD,without POE)
