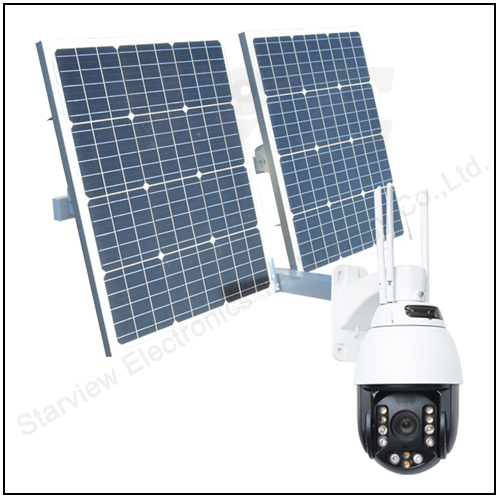

Solar Power Outdoor Wifi/4G 20X 1080P 200M IP PTZ Camera

PTZ camera feature
  • Humanoid Recognition intrusion detection based on AI intelligent analysis.  Support preset position guards tracking and cruise tracking.
  • Support auto tracking function, after finding the target that meets the intrusion rule, the dome will immediately rotate the target-centered position to zoom in and track the target motion. In this way, the monitoring personnel can see clear target characteristics and provide objective and realistic video data for the identity of the suspicious individual and the after-the-fact comparison.
  • Support active defense intrusion function: After the target is found, the dome automatically turns to the target position, flashing the visible light, and the audio output line drives the live speaker to send out the voice.
  • 6PCS ceramic package array LEDS + 4PCS Laser light,IR distance 200m.
  • Resolution:1920*1080(2MP).
  • All-weather environment design, high and low temperature resistant, waterproof to IP66.
  • Using high precision synchronous reduction motor, with high performance motor drive, control precision, stable movement, small vibration.
  • Continuous 360°pan turning, 90° tilt turning.
  • Networking:2G:GPRS/EDGE; 3G:WCDMA/TD-CDMA; 4G:FDD-LTE/TDD-LTE; Wi-Fi:802.11/b/g/n.
  • Network mode selection:Auto mode/3G-4G mode/WiFi mode.
  • SSID can be set to hide or open, SSID name password can be modified.
  • INTERNET WIFI funciton:When external WIFI accesses the Internet, you do not need 4G and use the external WIFI to access the Internet.
  • Optimized H.264 compression algorithm, support dual stream, support mobile phone Remote monitoring, compatible with Android / iOS.
  • P2P:Plug & play, Support QR code scanning to view on iPhone and android Mobiles.
  • Abnormal automatic recovery, network outages automatically connect function.
  • Breakage self-test repair: When the device fails to go offline on the public network, it is detected every 2 minutes and the connection is automatically reconnected.
  • Support ONVIF.
  • Supports static IP and also supports dynamic IP (DHCP).
  • Motion detection, email alert, FTP upload.
  • Built-in SD card slot, supports 128G TF card max.
  • Support: Power off memory/Presets/4 groups cruise/A-B scan/360° auto-scan.
Technical parameters
Model 4G wifi PTZ Camera/SVN-20HT6024G
CPU His3516EV300
Sensor 1/2.8" Sony CMOS(Sony335)
Resolution 1920*1080
Pixel 2.0M Pixel
Lens 4.7mm~94mm
ZOOM 20X Optical Zoom
Minimum illumination 0.01Lux
Day/night mode Support IR-cut
IR distance 200M
Storage function Support 128G TF card max
Motion detection 4 separate test areas can be set (Sensitivity can be set)
Alarm linkage Send pictures by Email; pictures and videos uploaded to the FTP server
Manual speed 0.5-100°/S
Preset speed 100°/S
OSD OSD name, time, date, information overlay
Video processing Support H.265,H.264
Network interface 1 RJ45 Ethernet interfaces ,10/100M self-adaption;
Band information WiFi AP: 802.11/b/g/n
TDD-LTE: Band 38/39/40/41
FDD-LTE: Band 1/3
TD-SCDMA: Band 34/39
GSM/GPRS/EDGE: 900/1800
A-B Scan 1
cruise 4 groups
Preset number of cruise groups 10 preset/ groups
waterproof IP66
Lightning protection 4000V
Working temperature (-20℃~+60℃)
GW 3.9KG
Name solar panel iptional for all 4G wifi Camera or IP PTZ Camera
Description SVN120W-40A/H SVN120W-60A/H SVN120W-80A/H
Solar panels
Maximum Power(Pmax) 120W(60W*2)
Maximum Power Voltage(Vmp) 18V
Maximum Power Current(lmp) 1.66A
Open-circuit Voltage(Voc) 21.4V
Short-circuit Current(ISC) 1.83A
Cell Type A grade monocrystalline
No.of cells 72(4*9*2)
Dimensions 670*535*25mm(single solar panel)
Weight 3.8kg (single solar panel)
Front Glass 3.2mm,Anti-Reflection Coationg,High Transmission,Tempered Glass
Frame Aluminum Alloy
Nominal capacity 40AH 60AH 80AH
Out voltage DC12V(2 DC interfaces)
Output Current ≤5A
intermal Resistance ≤300mΩ
Battery charge Standtd Charge:2A quick Charge:4A
Fully charged time 4H 8H 12-14H
Cycle life >500times
Overcharge protection DC12.6V
over discharge protection DC9V
Charging Temperature 0℃~45℃
Discharging Temperature -20℃~60℃
Storage Temperature -20℃~40℃
weight 3Kg 4.5Kg 6Kg
Power supplu time Power supply time=(Battery capacity x out voltage)/Camera Power
Max Power/Average power(Calculated with 4G Camera Power )  22h/31h 33h/46h 44h/61h
Installation method Wall mounted
Dimensions 1100*700*400mm
Weight 5Kg
Other Packing list solar panels *2 Lithium Battery *1 Bracket *1 Expansion Screw*4
Total weight 15.6Kg 17.1Kg 18.6Kg
