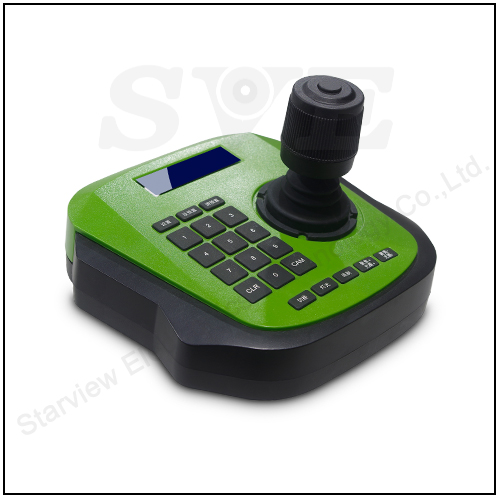

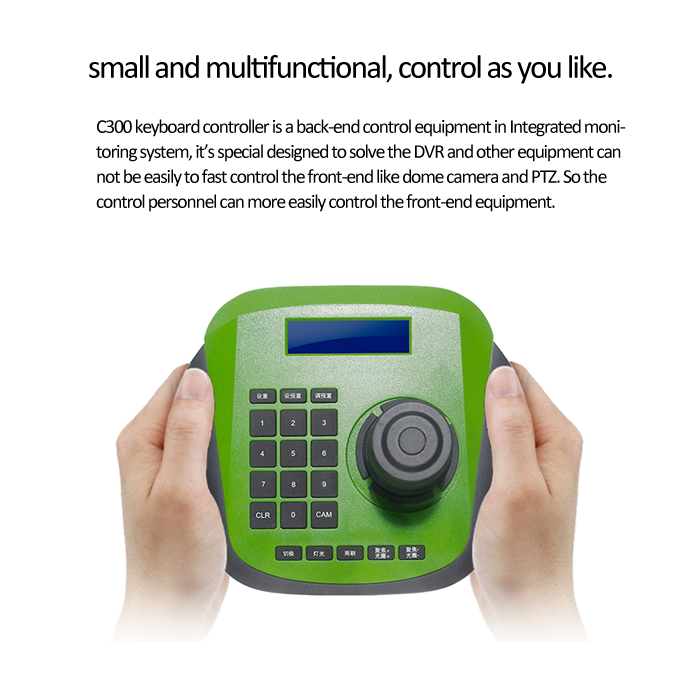

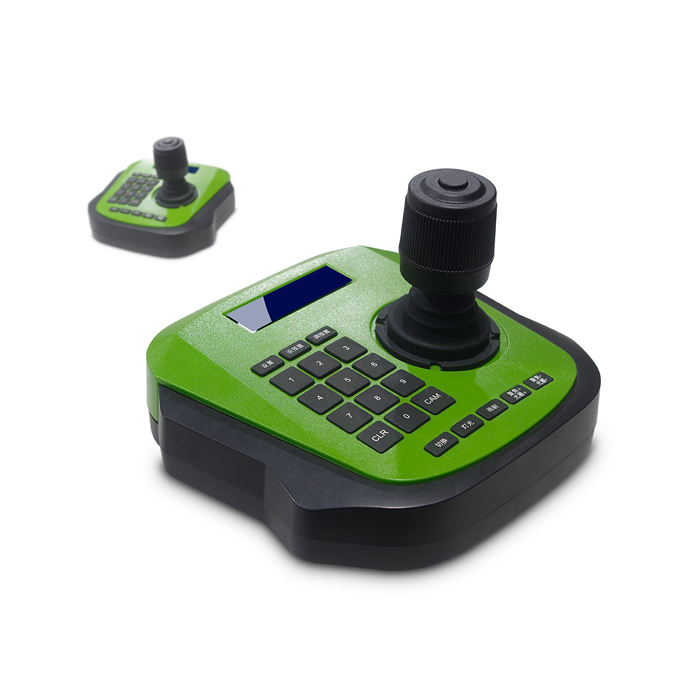

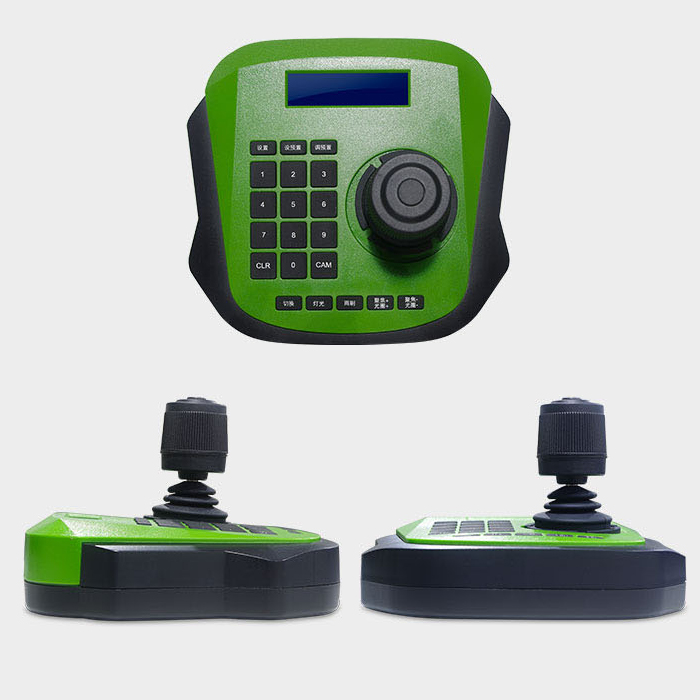

C3 Series Network PTZ Keyboard Controller
Overview
> Display the current control address's agreement and baudrate real time.
> Refurbish the firmware program on line
> Can choose Chinese or English
> All input and output communication port use anti-radar design, powerful
anti-jamming performance, the standard transmitting distance is 1200 meters
> Good communication compatibility, built-in many kinds of agreements
> Key-press warning on/off function
> Speed dome camera infinitely variable speed control
> LCD display
Technical specification
> Display the current control address's agreement and baudrate real time.
> Refurbish the firmware program on line
> Can choose Chinese or English
> All input and output communication port use anti-radar design, powerful
anti-jamming performance, the standard transmitting distance is 1200 meters
> Good communication compatibility, built-in many kinds of agreements
> Key-press warning on/off function
> Speed dome camera infinitely variable speed control
> LCD display
Technical specification
| Parameters / Model | MY-C301-I |
| Protocol | Pelco-d, Pelco-p, DAHUA, Hikvision |
| Baud rate(bps) | 1200,2400,4800,9600 |
| Control Address | Control 255 dome camera, decoder at the most, address code:0-255 |
| Communication Mode | RS485 half-duplex |

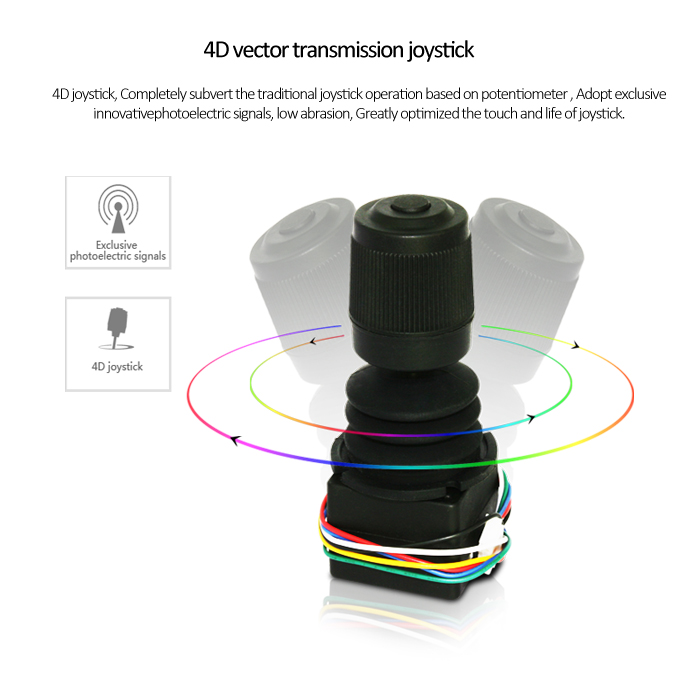

| Joystick | 4D(control: up,down,left,right,zoom ,confirm) |
| Interface Mode | 2PIN pressing line port |
| Warning Tone | Key-touch beep on/off |
| Power Supply | DC 12V/1A±10% |
| Power Consumption | 0.6W MAX |
| Working Temperature | 0°C-50°C |
| Store Temperature | |
| Packing size | 228*184*133mm |
| Outer box size and specifications | 430*385*240mm / 6 sets |
| weight | 500 G /set |
