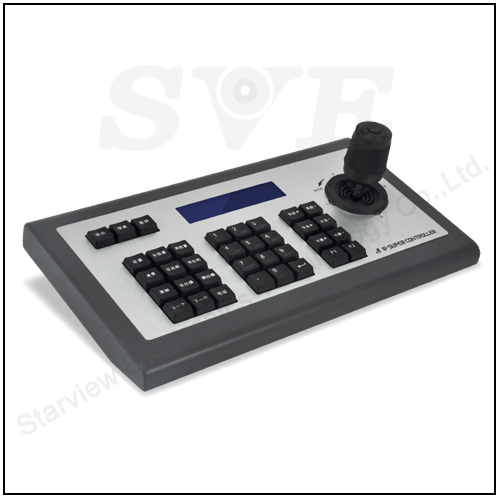

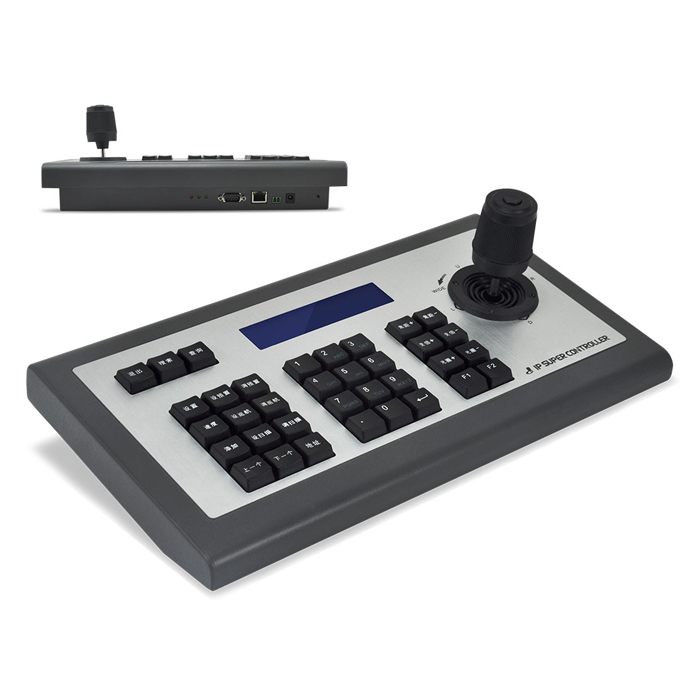

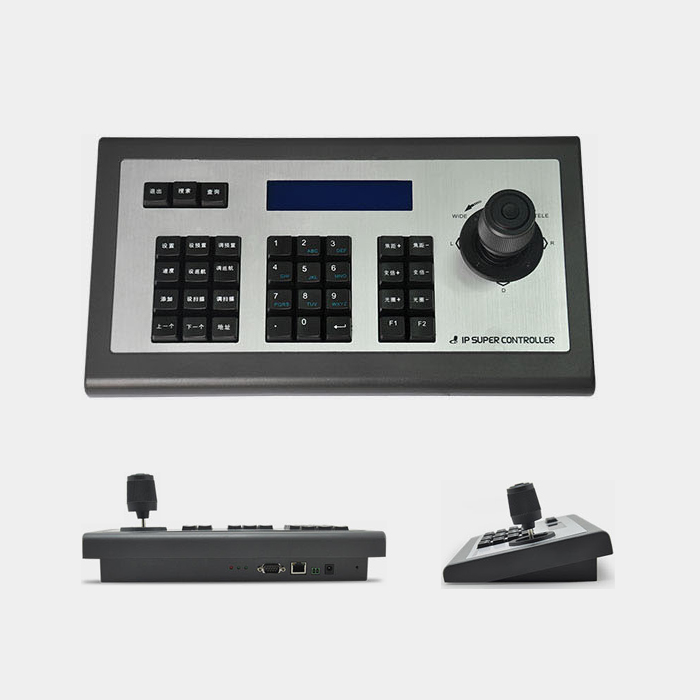

C1 Series Network PTZ Keyboard Controller


> Support network protocol, enjoy separate IP address
> Support Onvif protocol,achieve to control the front-end ptz cameras
> Support adding ip devices when keyboard offline, also support auto searching ip devices
> Max can control 253pc ip devices in the same network segment
> Integrated with many ip zoom module brands, such as HIKVISION, Dahua, TVT and so on
> Support operating ip ptz many functions, such as focus, zoom, iris, preset, patrol and so on
> Support IE browser on adding configuration of front-end device parameters Import photoelectric joystick
> 160x32 blue dot LCD display

Technical specification
Parameters / Model SV-C100

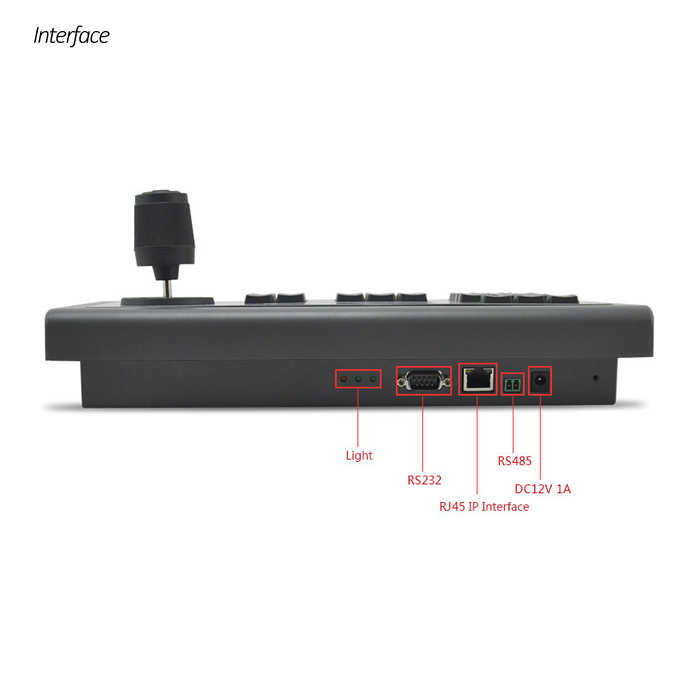

RS485 3.81 terminal,TA,TB
RS232 DB9 mail head
Ethernet 1x Ethernet interface,IEEE 802.11b/g/n
Support protocol  Onvif 2.4
Browser IE,Firefox,Chrome,Safari and so on
Joystick Four-dimensional joystick
Power supply DC12V-2A/inside +outside -
Working temperature 0ºC~55ºC  /  14°F~131°F
Working humidity 20%~80%  frostless
Storage Temperature -10ºC~60ºC  /  14°F~140°F
Storage humidity 0~90%  frostless
Certification CE, RoHS, FCC
Warranty One year

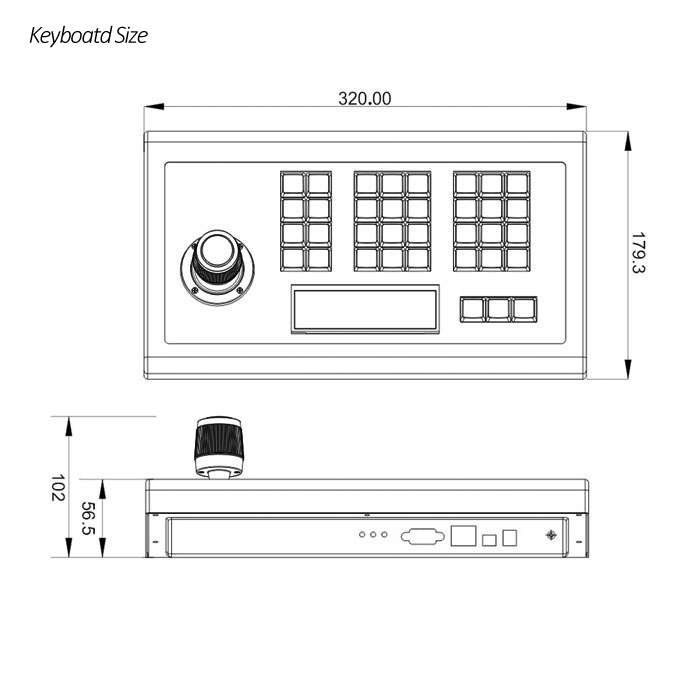

Packing size 354*221*135mm
Outer box size and specifications 450*355*414mm / 6 sets
weight 1580 G /set
