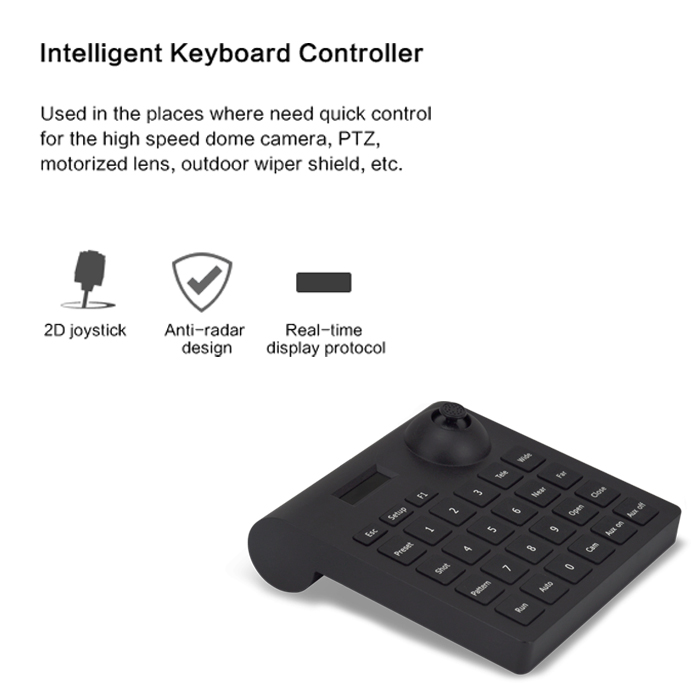

Multifunctional Keyboard Controller

Description

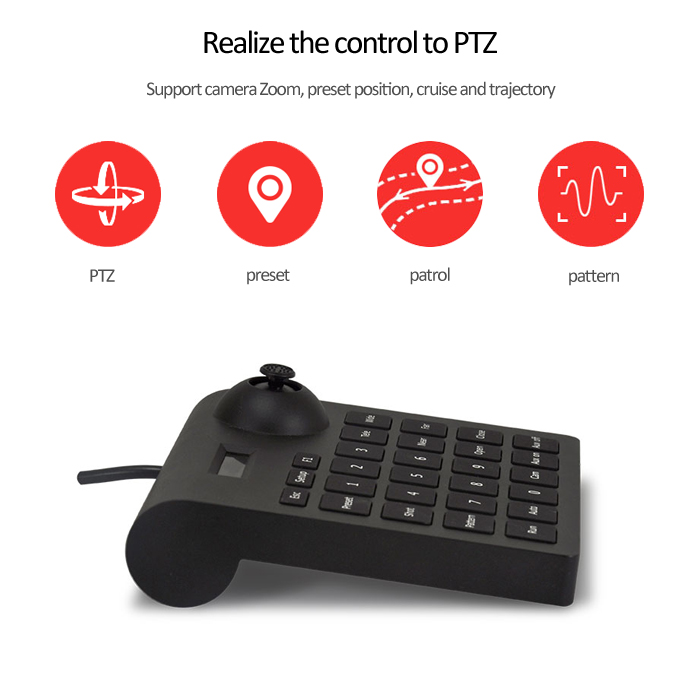

Control keyboard is the indispensable rear-end control device in integrated
security system, it is specially designed for the quick control of speed dome
camera and PTZ which are unable to control conveniently through DVR,
make the controlling of speed dome camera easier.

Specific Function
> Real-time display the current control address's agreement and baud-rate.
> 4 level control speed can be set
> Speed dome ID can be switched directly by pressing 'AUX ON'/ 'AUX OFF'.
> Key-press sound volume can be adjusted
> Small size suitable for use in car

Basic Function
> RS485 control bus, can control up to 255 pcs speed dome cameras
> All input and output communication port use anti-radar design, powerful anti-jamming performance, the standard transmitting distance is 1200 meters
> Good communication compatibility, built-in Pelco-p, Pelco-d, Hikvision and Dahua protocol
> Keyboard operation password on/off/lock function
> LCD screen to real-time display its operation status

Technical specification
Parameters / Model SV-RMD2-I-BG
Protocol Pelco-d, Pelco-d, Hikvision, Dahua
Baud rate(bps) 1200, 2400, 4800, 9600, 19200, 38400
Control Address Control 255 dome camera, decoder at the most, address code:0-255
Communication Mode RS485 half-duplex
Joystick control: up, down, left, right
Menu and Key-press English
Warning Tone Key-touch beep on/off
Power Supply DC 12V±10%
Power Consumption 5W MAX
Working Temperature 0°C-50°C
Store Temperature -20-70°C

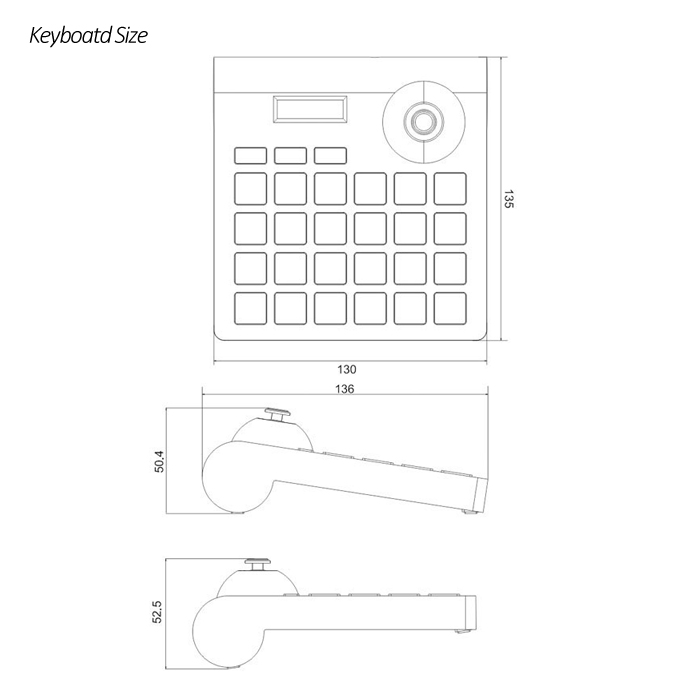

Packing size 180*165*90mm
Outer box size and specifications 465*375*340mm / 20 sets
Weight 260 G /set
