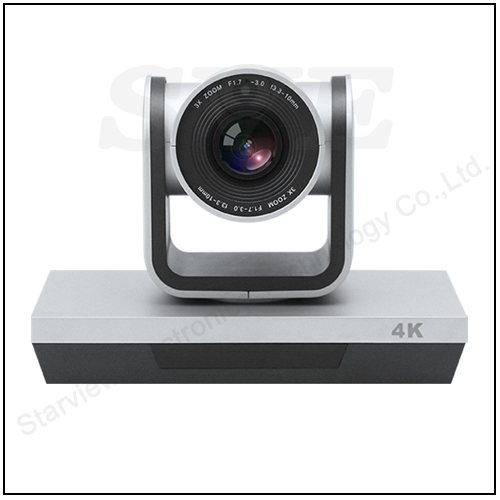

4K 30fps Sony CMOS Hov 105degree USB2.0 3X UHD PTZ Cameras

4K UHD H1 Series Video PTZ Cameras delivering 3840X2160@30fps which is equipped with 0x,3x, or 10x Optical zoom block optional, Wide view angle provide the Ultimate Experience to Optimize Video Collaboration.

H1-3x Zoom series 4K UHD Compact New Design, Plug & Play
3840p UHD resolution
Wide view angle provide the Ultimate Experience to Optimize Video Collaboration

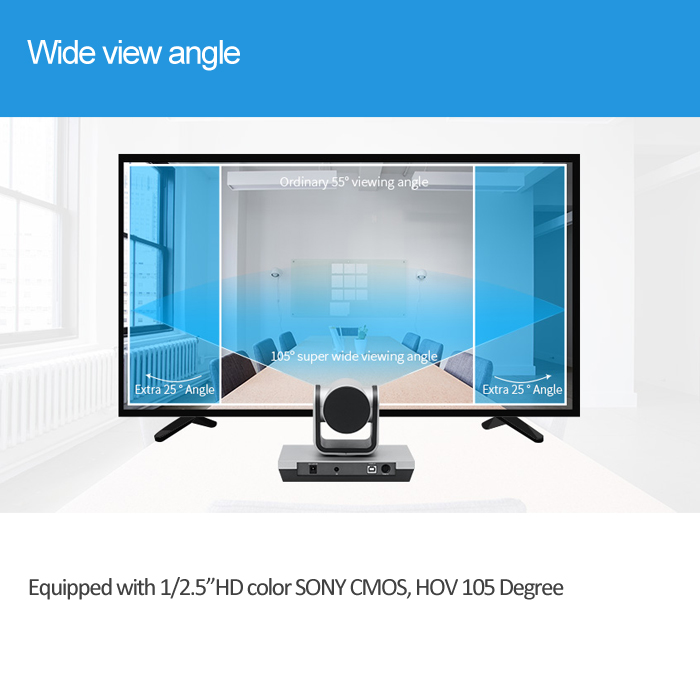

  • Equipped with 1/2.5"HD color SONY CMOS, HOV 105 Degree
  • Single USB2.0 Cable delivering quality video, PTZ movement & power supply
  • 9 Presets Call/Set/Clear operation in remote control unit
  • Ideally suited to Small business group meeting rooms

Specification sheet
Model # H1-L3M-4K
Sensor 1/2.5″HD Color CMOS Sensor, 3864 (H) × 2202 (V) approx. 8.51 M pixels
Min Scene illumi. 0.5Lux at F2.0
White Balance AUTO
IRIS F1.35-F2.4
Lens 3.5mm (W) ~ 9mm (T) Stepping Motor Zoom
Zoom 3x Lens Zoom Stepping focus
Horizontal field of view FOV: 100~39° Vertical : 71~22°
Operation System Windows XP, Windows Vista, Windows 7/8/10, Mac OS X, Linux

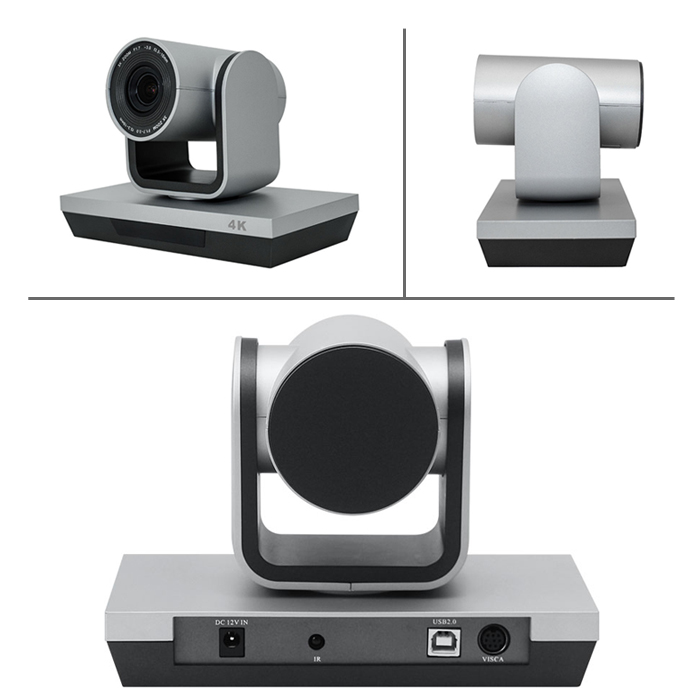

USB Interface USB 2.0 type B female jack
Video Compression MJPEG
Video format 3864 (H) × 2202 (V) approx. 8.51 M pixels, 1080p@30fps/25fps, 720P@30fps/25fps, 640*480,640*360
USB to RS232 Control Support USB to RS232 via VISCA Commands for PTZ Control
Control Protocol VISCA, Pelco-D
Baud Rate 9600/38400bps
Preset 64
Speed Matching Function Support
H & V Image Flip Support
Pan Speed Range 1-40 degrees/s
Pan Rotation Angle ± 165°
Tilt Rotation Angle + 30° , - 30°
Auto Pan Scan Support
Remoter Control IR Wireless remote control P/T/Z
Power Supply USB2.0 USB cable for power supply (USB accessory power supply)
Operation Temperature 0ºC~50ºC
Environmental humidity 0-95%RH (non-condensation)
Length X width X high Camera unit: L 180mm x W 112mm x H129mm
  Package: 302mm x 218mm x 120mm
Weight 580g
