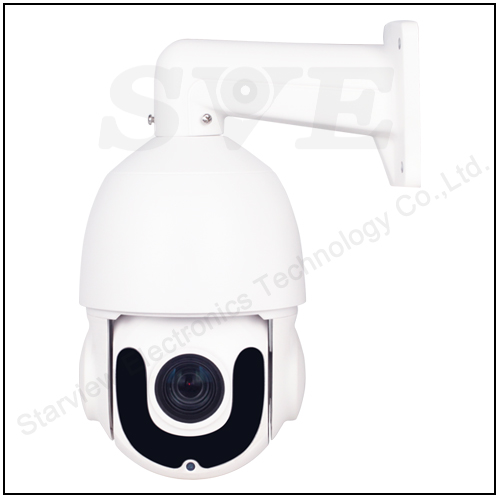

30X 4K Intelligent IP Speed Dome PTZ Camera

Key Features
* Support P2P function
* 4.5"  body construction,30X optional
* Compatible with  CMS, UC2,Milestone and AXXON platform
* ONVIF2.4 ;  Compatible with HIKVISION ,DAHUA, XM,Video park NVR
* Intelligent IR illumination & power consumption is variable, dependant the zoom factor
Technical parameters
Camera
Sensor 3516AV300  8MP  SONY415
Output Pixel 3840x2160@22fps
Lens 30X f=4.7mm~141mm
BLC Support
AGC Auto/manual
WB Auto/manual/indoor/outdoor
DNR 2DNR,3DNR
WDR DWDR WDR≥79dB
S/N Ratio ≥50dB
Dome
Communications Protocol TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
Software Control IE, CMS, Management Platform
Mobile View(optional) Support Windows, iPhone platform smartphone
Video compression H.265/M-JPEG
Audio compression G711,PCM
Rotation Range Pan: 0°~360° , Tilt: 0°~93°
Rotation Speed Pan: 0~80°/s , Tilt:0~40°/s
Auto Flip Horizontal 180°, Vertical 93°
Preset Points 220pcs presets(dwell time 01-60s interval available)
A-B scan User programmabel(scan speed 1-64 levels setting available)
Guard Tours 3 groups( Max.16 points, dwell time user selectable)
Operating temperature -40ºC~+70ºC
Operation menu English
Power DC 12V 3A
Consumption ≤20W
Lightning Protection Transient voltage 6000V
Related validation IP66,CE,FCC,RoHs
IR parameters
Auto Control IR LED PWM
IR distance Up to 120 meters

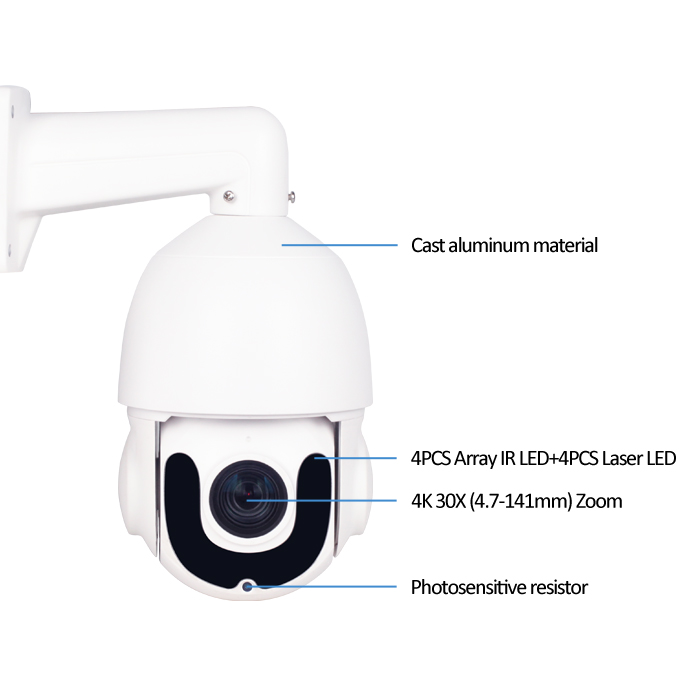

LEDs 4PCS Array 42Mil IR LED+4PCS Laser LED
