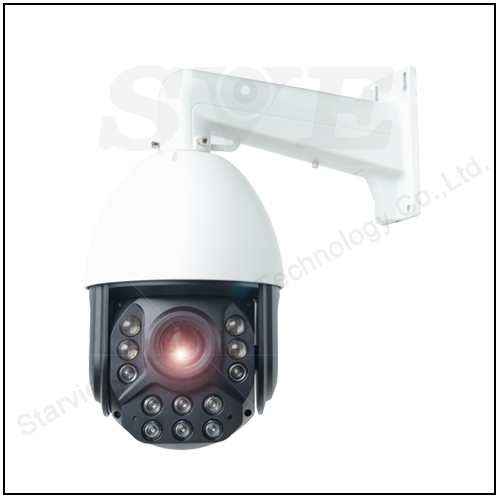

30X 2MP 350m IR Distance IP Dintelligent Alert Tracking Security PTZ Dome Camera

Key Features
  1. Adopt the latest Sony starlight CMOS sensor, high sensitivity chip, present perfect image effect;

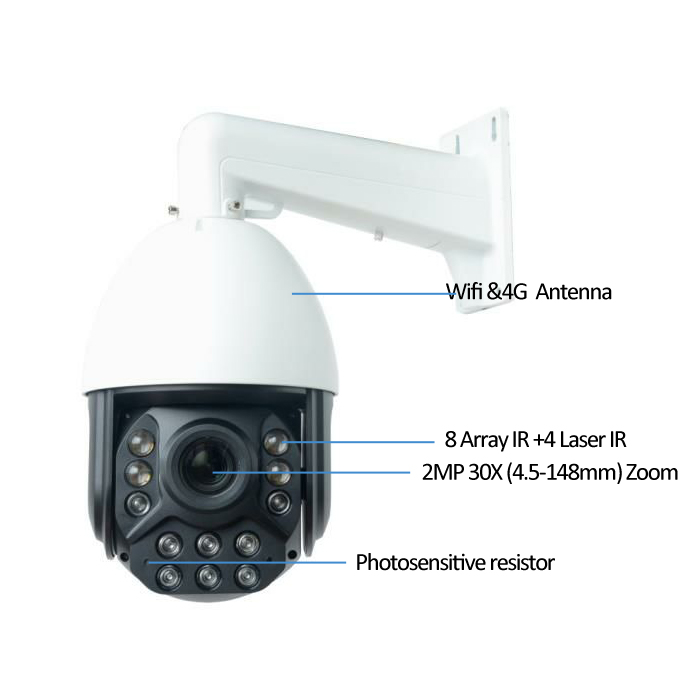

  2. 8 high-quality dot-matrix IR + 4 long-range laser IR, which can automatically switch between near, middle and far lights according to the focal length of the lens.IR distance is 350M, and the target can be clearly found at 200M;
  3. IR doubling technology, using the latest efficient surface emitting laser IR source, compared with the traditional IR ball machine, the IR brightness is doubled.
  4. Support auto focus, AWBMWB, support saturation setting, contrast setting, sharpness setting, brightness setting, backlight compensation setting, strong light printing setting, 2D/3D noise reduction intensity setting, fog function setting, WDR mode intensity setting;

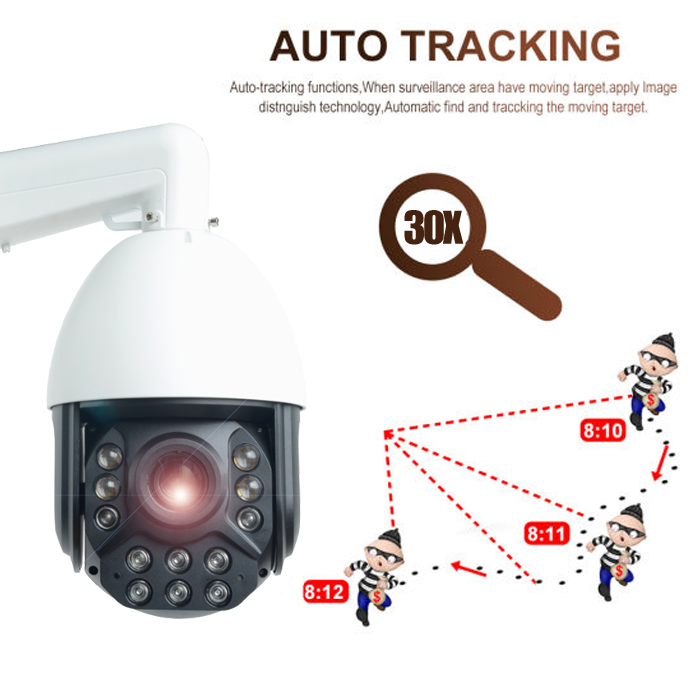

  5. Support AI human shape recognition algorithm, fast recognition speed, high accuracy, and can select the warning area at will. Once someone breaks into the warning area, the sound and light alarm will be triggered immediately in parallel with dynamic tracking (need to connect an external passive speaker)

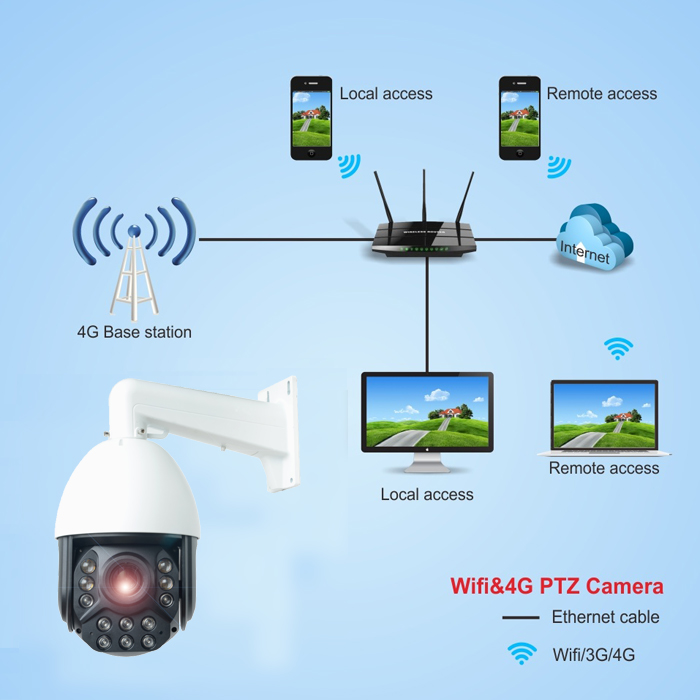

  6. Network standard:2G: GPRS/EDGE;   3G:WCDMA/TD-SCDMA; 4G: FDD-LTE/TDD-LTE;
Technical parameters
Model No. SVN-30HT9034G-A
Type 30X 2MP Intelligent Alert Tracking PTZ Camera
Image Sensor 2MP 1/2.8" starligth CMOS Sony 307
Minimum Illumination Color: 0.001Lux@F1.2, B/W: 0.0001Lux@F1.6
Electronic Shutter Auto/Manual (1/10~1/10000 seconds)
Day/Night Switch Support IR-CUT
Focal Length 4.5- 148mm
Optical zoom 30X Optical zoom
Zoom Speed Approx.4s(Optical Wide~Tele)
Angle of View 61°-2.5°(Wide-Tele)
PTZ Control
IR Control Auto/near light/far light/off
IR Distance 350m
Rotation range Horizontal: 0°~360° continuously, Vertical:-15°~90°
Rotation speed Horizontal:0.1°~100°/s,Vertical: 0.1°~100°/s
Preset 255
Automatic mode Support 4 automatic cruises, 1 line scan, 1 trajectory scan, 1 horizontal scan
PTZ function Support idle action, support power-on action, rotation speed can be automatically adjusted according to lens zoom
Video compression H.265/H.264
Resolution Main stream (1920*1080, 1280*720) , Auxiliary stream (D1)
User Management Support multi-level user authority management
Network interface 10/100M adaptive Ethernet interface, lightning protection design, differential mode> 2000V, common mode> 6000V level
Power DC12V4A
Consumption <30W
work environment Temperature: -40~60ºC; humidity<90%

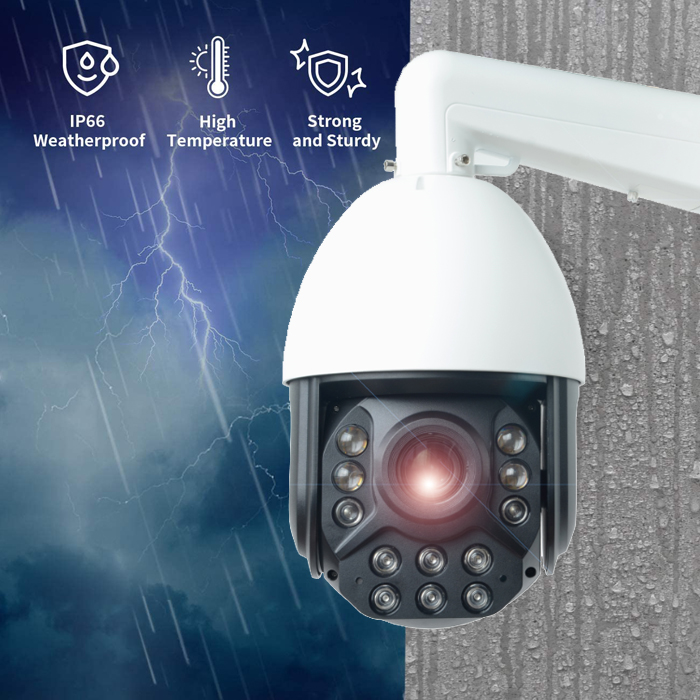

Protection level IP66 waterproof,4000V lightning protection
Material Cast aluminum material

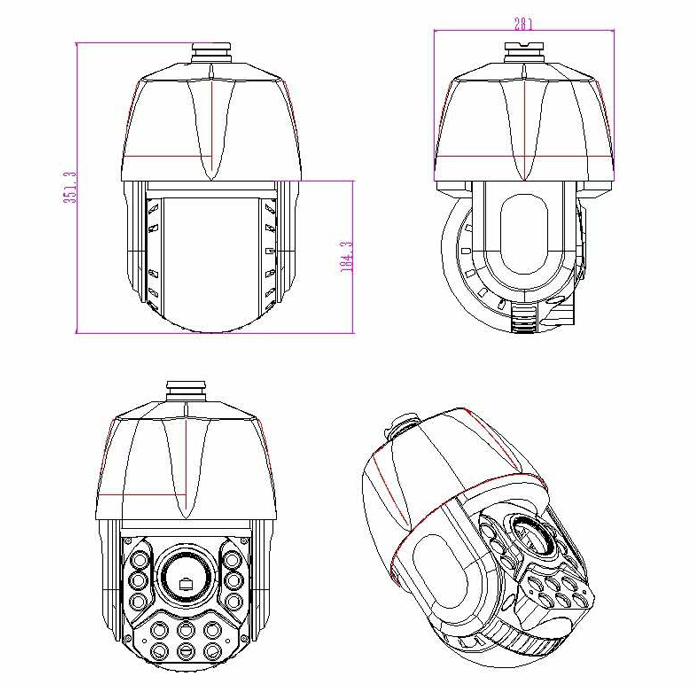

Size Φ218 (mm)×362(mm)
weight 6.5kg (including package)
Bracket Wall mounting ,hoisting(optional)
