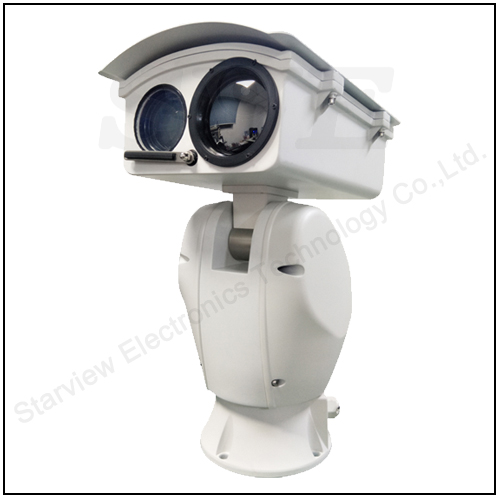

3KM Smart Thermal Image 37X Optical Network PTZ Camera
Key Features
Powerful zoom: 37x optical zoom, 16X digital zoom (camera optional)
Image high definition: 2560×1440P, 4MP
Starlight level ultra low noise: 0.0005Lux@F1.5 (color) 0.0001Lux@F1.5 (B/W), 0Lux (IR)
Control method: Ethernet / can pass IE browser and client software
Thermal imaging: uncooled amorphous silicon type, focal length 75mm
Pixels: 384 × 288 , 17μm
Protection level: IP66
Input power: DC12V, 5.0A

Product features
The thermal imaging/visible light dual vision mode greatly improves the user's ability to recognize targets in complex environments. It can be widely used in security monitoring and fire warning monitoring;
Using the latest generation of international uncooled infrared focal plane detectors, with low power consumption and high thermal sensitivity, it can clearly present the infrared thermal image of the observed object;
Temperature measurement in the whole ambient temperature range (-40℃~+60℃)
With temperature threshold alarm function, over-temperature alarm, alarm linkage
75 mm dedicated thermal imaging lens
Support image detail enhancement function
Support noise reduction/electronic zoom function
Support H.264 / H.265 encoding optional, strong compatibility, network transmission stream is smaller, image quality is better
Real-time dual-stream output, which can meet the needs of local video storage and network transmission
Support humanoid detection
Support cross-line alarm
All-weather environmental design, high-strength aluminum alloy precision-cast shell, impact resistance, corrosion resistance, protection level up to IP66

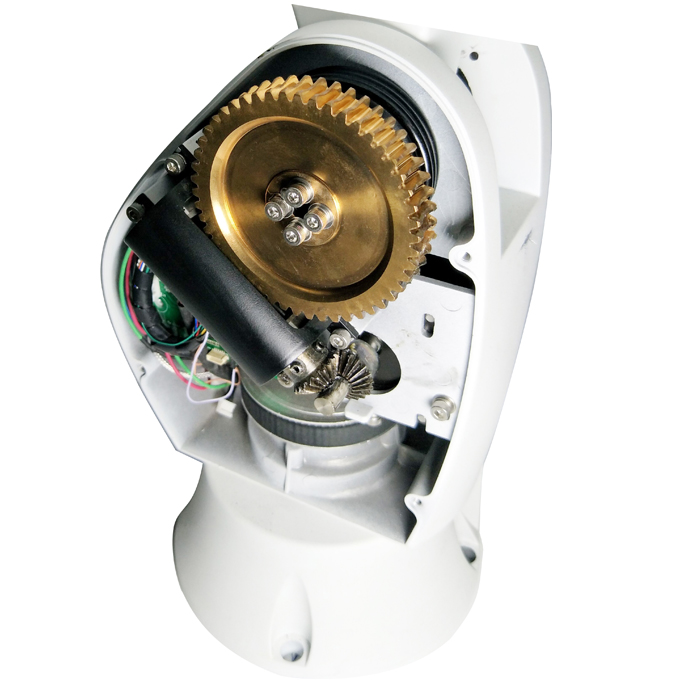

Worm gear and worm drive, self-locking protection function when power off, anti-strong wind, stable and reliable operation
Automatic matching function of focal length and running speed
Horizontal 360° continuous rotation, vertical -90° (looking down) to +90° (looking down), positioning accuracy can reach ±0.1°
Support preset position, cruise scan and other functions

Technical parameters

Model SVN-37PTX905
Camera
Sensor 1/1.8” Progressive Scan CMOS
Total pixels 4MP
Minimum illumination Color:0.0005Lux@(1.5,AGC ON), b/w:0.0001Lux(1.5,AGC ON)
S/N >52dB
Video resolution 50Hz: 25fps (2560*1440,1920*1080, 1280* 960, 1280*720);
60Hz: 30fps (2560*1440, 1920* 1080, 1280*960, 1280* 720)
Lens focal length F=6.5~240mm, 37x optical zoom
Lens aperture F1.5~4.8
view angle 70.0-2.511 °(telephoto-wide angle)
Zoom speed 4S
Near camera distance 100mm~1500mm
Day/Night Switch ICR
Thermal imaging camera
Detector type Vanadium oxide uncooled focal plane detector
Resolution 384×288
Wavelength band 8~14μm
Lens focal length 75mm
Pixel spacing 17μm
Image mode HDR : Haitian mode, world mode
PTZ
Pan Range 360° Continuous
Speed (H) 0.1~100°/S
Tilt Range -90~45°
Speed (V) 0.1~20°/S
Positioning accuracy 0.1°
Presets 255
Automatic cruise 8 , the focal length matches the speed of the gimbal
Watch function On/Off, automatically call the preset point after the specified time in the idle state
Video compression H.264//MPEG4/ H.265
Audio compression G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
Baud rate 2400/4800/9600/19200bps
Drive structure Vertical drive: worm gear / horizontal drive: timing belt
Output port 1 CH alarm output / 1 CH relay output
Accessibility
Fan/heating Real-time temperature detection; low temperature start, pure physical detection
Waterproof respirator Built-in 2 waterproof respirators to reduce fog and condensation
General
Power Supply DC12V/5A
Power Consumption 60W
Working Environment -40℃~60℃,0~95%(no condensation)
Protection level IP66, built-in 4000V lightning protection, anti-surge and anti-surge protection
Installation method Column, wall, corner
Entry cable Side outlet / lower end outlet optional

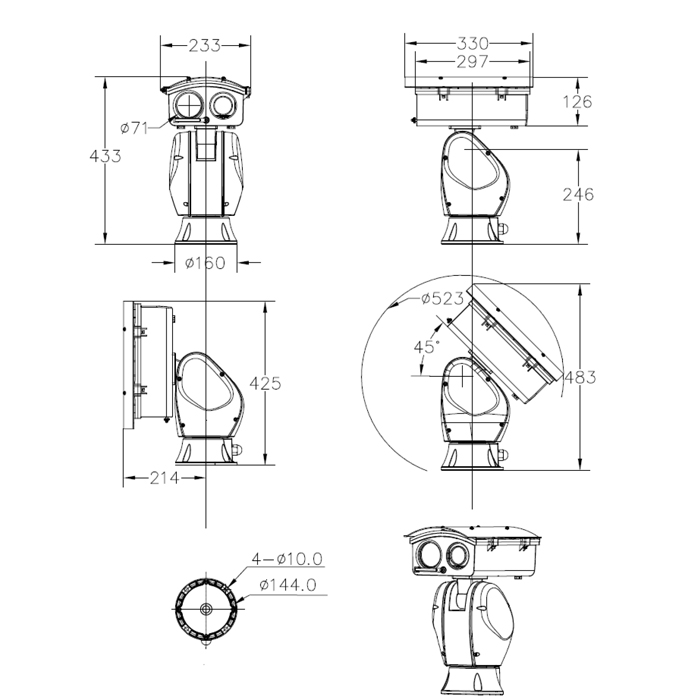

Dimension L330.0mm×W233mm×H433mm
Product weight 10kg
Bearing weight ≤8kg (including movement cover)
Bearer mode Top load
