vehicle dual sensor PTZ with Thermal Imaging On board
Key Features
5.0MP 1/2.8” SONY IMX335 Sensor;
30X(F4.7-141mm) optical zoom;
Optional Thermal Lens, up to 40mm;
640*480 resolution, high sensitivity sensor, support contrast adjustment;
Weatherproof IP66/67;
ONVIF comply;
ideal for mobile surveillance, for vehicle, marine application

Application
Enclosed with aluminum housing and excellent sealing solution, the camera is designed with an ingress protection rating of IP66/67, protecting the internal components from dust, dirt and liquids.
The rugged, mobile mounting options make this camera ideal choice for many mobile surveillance
application:like law enforcement, military vehicle surveillance, specialized robot, marine surveillance.

Technical parameters
Model
Model No. SVN-30X70TH
Thermal Imaging
Detector Uncooled amorphous silicon FPA
Array format/Pixel pitch 384x288/17μm ; 640x480/17μm
Lens 40mm
Sensitivity(NETD) ≤50mk@300K
Digital Zoom 1x, 2x, 4x
Pseudo color 9 Psedudo Color palettes changeable; White Hot/black hot
Visible Camera
Image Sensor 1/2.8" SONY IMX335 Progressive Scan CMOS
Min. Illumination Color:0.01 Lux @(F1.5,AGC ON); Black:0.001Lux @(F1.5,AGC ON);
Shutter AUTO/ 1/50(1/60)-1/100,000sec
Day/Night Switch IR cut filter
Focal Length 4.7-141mm;30x optical zoom
Aperture Range F1.5-F4.0
HOV 60.5-2.3°(wide-tele)
Minimum Working distance 2m-3m
Zoom speed Approximately 5s(optical lens, wide to tele)
Video Compression H.265+/H.265 / H.264
Audio Compression G.711A/G.711U/AAC
Main Stream 2592*1944@25fps; 2688*1520/2560*1440@25fps; 2048*1520/2304*1290@25fps; 1080P/720P@30fps
Third Stream D1/VGA/640*360/480*360/CIF@25fps
BLC Support
Exposure mode AE / Aperture Priority / Shutter Priority / Manual Exposure
Focus mode Auto Focus / One Focus / Manual Focus / Semi-Auto Focus
Area exposure / focus Support
Optical fog Support
Image stabilization Support
3D noise reduction Support
Protocol TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
Interface Protocol ONVIF(PROFILE S,PROFILE G)
Pan/Tilt
Pan Range 360° (endless)
Pan Speed 0.5°/s ~ 80°/s
Tilt Range –20° ~ +90° (auto reverse)
Tilt Speed 0.5° ~ 60°/s
General
Power DC 12V-24V, wide voltage input; Power consumption: ≤24w
COM/Protocol RS 485/ PELCO-D/P
Video Output 1 channel Thermal Imaging video; Network video, via Rj45
1 channel HD video; Network video, via Rj45
Working temperature -40℃~60℃
Mounting vehicle mounted; Mast mounting
Ingress Protection IP67

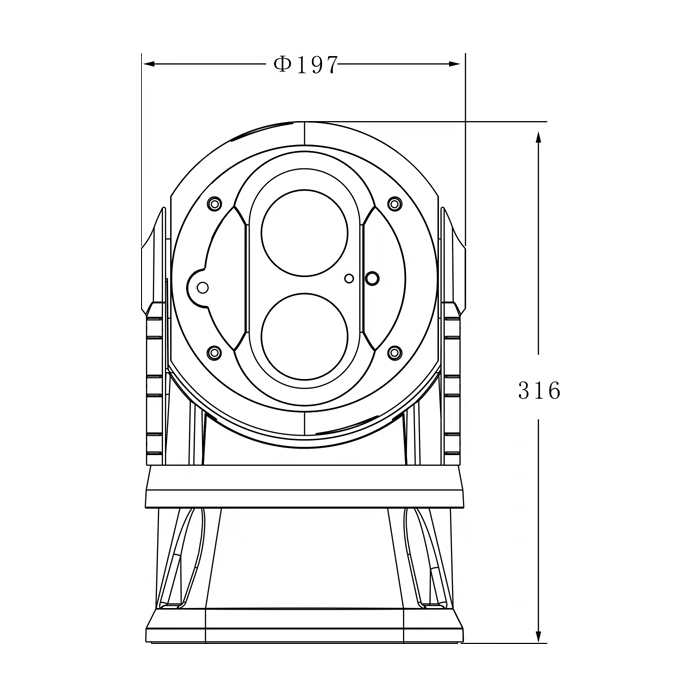

Dimension φ197*316 mm
Weight 6.5 kg
