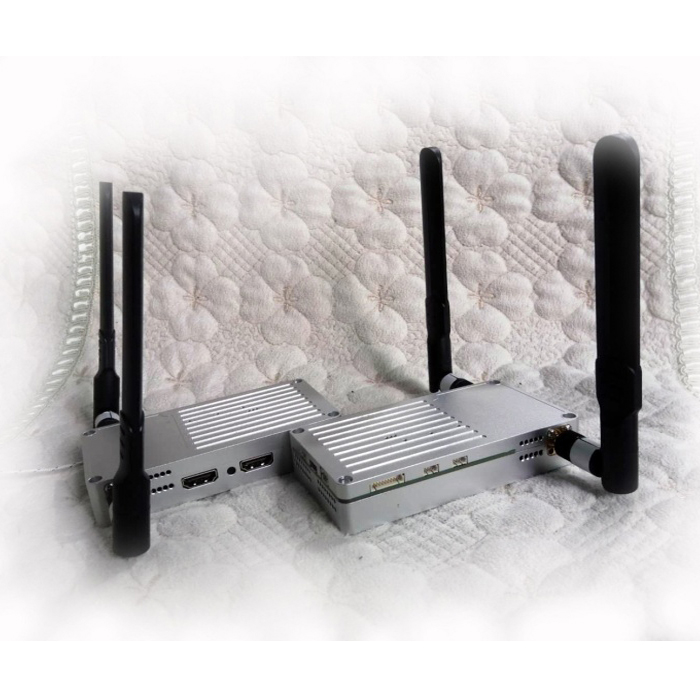

4K/1080 Image/Data /Control /Audio Data Link Wireless Transmitter

Overview
Image, data, control, audio integrated (ad hoc network) wireless transmission module is the latest product developed based on 3GPP ran mobile communication standard and 5g complete docking. It does not rely on mobile operator base station, and is used for outdoor wireless network long-distance transmission and P2P wireless bridge. H. 265 codec and COFDM technology.
Product features
  1. Support multiple video formats:4K@30P, 1080@60P Up to 25 different video formats;
  2. Low latency:delay of video channel is less than 100ms and minimum is 70ms. According to different video format code rate, there are different delay, and data channel delay is less than 20ms.
  3. Ultra long distance:maximum air to ground distance of UAV flight test can reach 15 km, which can be customized according to users. maximum air to ground transmission distance can reach 150 km (theoretical value).
  4. Strong diffraction and transmission capability:Ground to ground light shelter, up to 3.5 km (measured); Serious shelter can reach 300-500m (measured according to the shelter environment); Floor penetration test can penetrate up to 5 reinforced concrete floors (measured).
  5. Anti-interference ability:FHSS frequency hopping technology is adopted, which has strong anti-interference ability. It can be set to avoid interference sources in the bandwidth range, so as to achieve the purpose of stable signal transmission.
  6. Link function:Using LTE (long term evolution) data link technology, it can swallow a large amount of data and realize the four in one function of image, data, control and audio.
  7. Network structure:MESH (self-organizing network) function, can be arbitrarily networked, and video live broadcast relay.
  8. Network Protocol:Reserved RJ45 interface can be connected to the Internet to realize 5g docking and big data transmission
Technical parameters
Model
Model No. SV-4K801
Type 4K/1080 Image & Data & Control & Audio Data link wireless transmitter
Radio frequency
Frequency (optional) 806-826 MHz; 1428-1448MHz; 2400-2480MHz.
TX Power 800M/1.4G 29-32dBm±2dBm, 2.4G 20-25dBm±1dBm
Sensitivity 800M: 10MHz/5Mbps -96dBm; 10MHz/10Mbps -91dBm
1.4G: 10MHz/5Mbps -96dBm; 10MHz/10Mbps -91dBm
2.4G: 20MHz/5Mbps -97dBm; 10MHz/10Mbps -91dB

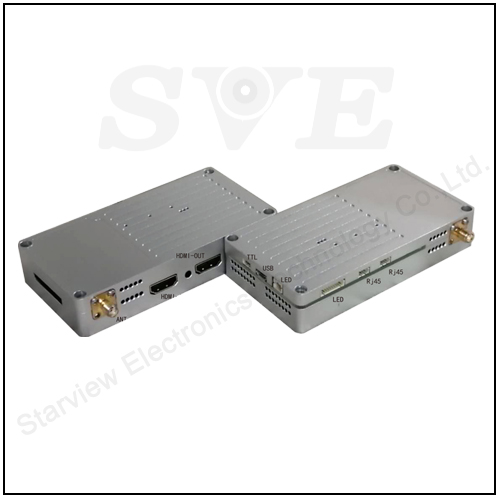

Interface
4K@30P/1080@60P Transmitter HDMI × 2 (including 1 loop output), Receiving HDMI × 1
Ethernet port RJ45×2
Audio 3.5 Audio × 1, 3.5 MIC × 1
Serial port TTL×1 Control, TTL×1 Data
USB Micro-USB
Power Supply DC12V 1.2A
Power Maximum peak power: 15W
Antenna Single send and double receive (1.5dbi\5dbi\7dbi; omnidirectional and directional optional)
Channel bandwidth 800MHz: 1.4MHz/3MHz/5MHz/10MHz/20MHz
1.4GHz: 1.4MHz/3MHz/5MHz/10MHz /20MHz
2.4GHz: 1.4MHz/3MHz/5MHz/10MHz /20MHz
Date rate Rate is configurable and supports up to 30mbps
Transmission distance 800m to 15km, UAV can transmit 150km / 1080p images
Transmission delay Data transmission delay ≤ 20ms, 4K transmission delay ≤ 100ms
Power on delay <15s  power-on-link establishment completed
WEB Configuration Support web page configuration management
Encryption AES 128-bit encryption
Storage temperature -40ºC~+85ºC
Operating temperature -20ºC~+75ºC
Humidity 5%~95%
Size/Weight 61mm*116mm*23mm; 175g
