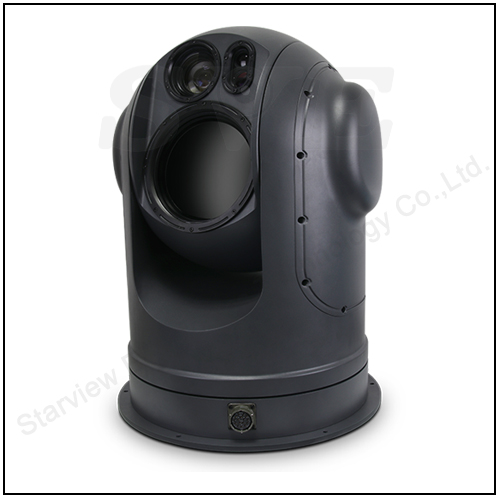

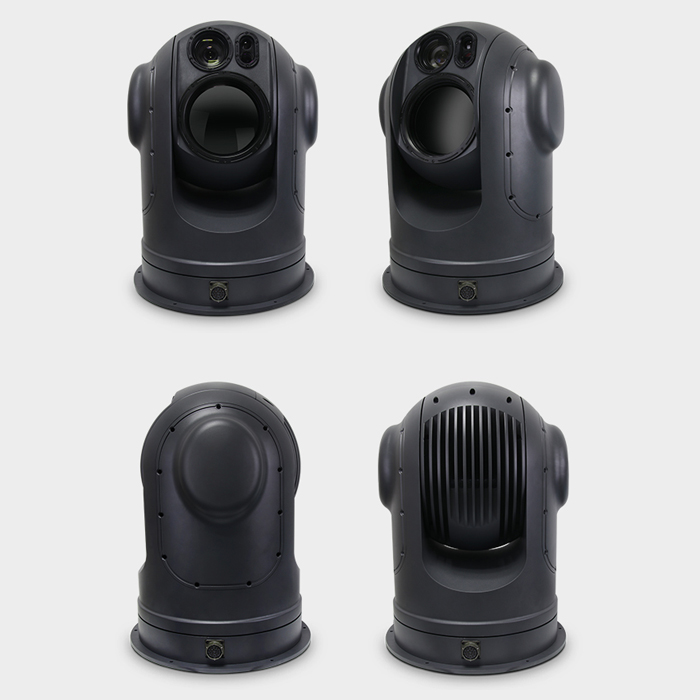

52X 1080P Ship-Mounted IP66 Outdoor Optical Thermal Imaging IP66 Outdoor Security Network IP PTZ Camera

Physical characteristics
Use environment Out door
Installation method Flat base mounting, base with shock absorber
Power supply AC24V±10% 10A
Total Power ≤150W, including heater ≤350W
Temperature and humidity # -40ºC~65ºC(Except frozen, power-on state below 0 degrees); 35%~90%(relative humidity)
Dust-proof and water-proof IP66, Anti-corrosion coating, anti-salt spray at PH6.5-7.2,continuous spraying for 24hous
Heavy 35Kg(around)

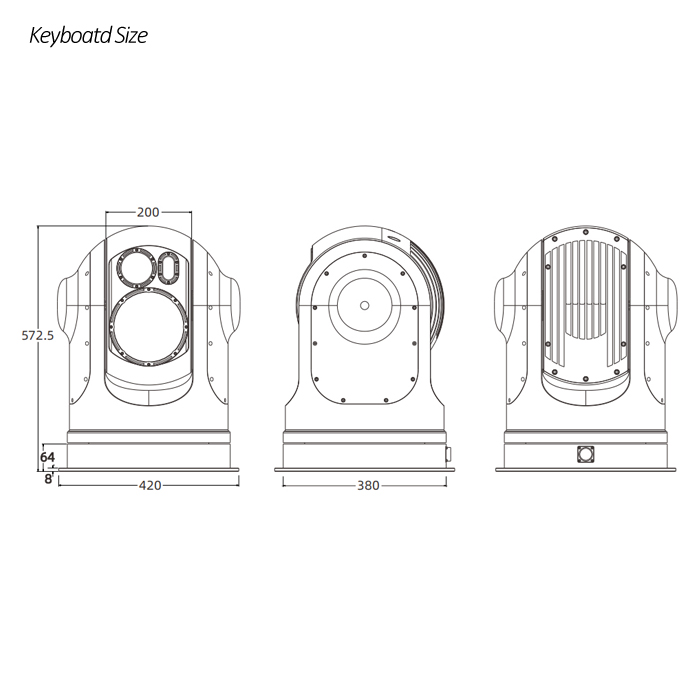

Size 560(L)*335(W)*335(H)mm
Day Camera
Sensor 1/1.8"CMOS, HIS 3519 + SONY IMX344
Pixel HD 4K Video Compression
Video Compression format H.265/H.264/MJPEG
Minimum illumination 0.001Lux F1.2(night); 0.01Lux F1.2(Day)
Color B/W Conversion Day/night automatic conversion, ICR mechanical dual filter switching, ecternal control
BLC Auto
Gain control Auto
White balance Manual/Auto
Strong light suppression support
IRIS adjustment Support auto Lrls, manually adjust Lris
Len focal length 5.7-300
Lens contro Electric zoom
Focus mode Auto Focus/One Focus/Manual Focus
Optical zoom 52X
Digital zoom 16X
Penetrating fog support
Others Penetrating fog imaging, day and night infrared correction 400-1100nm, with lens preset
Interface Protocol ONVif GB28181
Thermal imaging Camera
Sensor Vanadium Oxide uncooled Infrared focal plane detector
Detector type Alarm type uncooled
Pixel 640*512, 384*288
Pixel spacing 17um
Wave response 8-14um
Detector frequency 50HZ
Len F value F1.0-F1.2
Optical zoom 5X; focal length:30-150mm
Digital zoom 8X, 1.0-8.0 continuous zoom
Field of view 4.2°-3.3°~20.6°-16.5°
focusing Electric continuous focusing
Len auto focus Far and near targets can be outomatically focused
Alarm Realize image mark alarm, serial communication alaarm,IO alarm
Alarm Reaction ≤0.25
Polarity Black hot/white hot
Pseudo-colot support
Image Processing Image detall Enhancement(DDE), Automatic Gain Control(AGC),Digital Fillter Noise Reduction
Brightness contrast adjustment Manual / Auto
Analog Video output 1CH PAL system
Digital video output D10-bit or 14-bit LVDS-H/F, 10-bit or 14-bit LVCMOS, BT.656, BT.1120
Control interface RS-232/RS485/UART/RS-422
