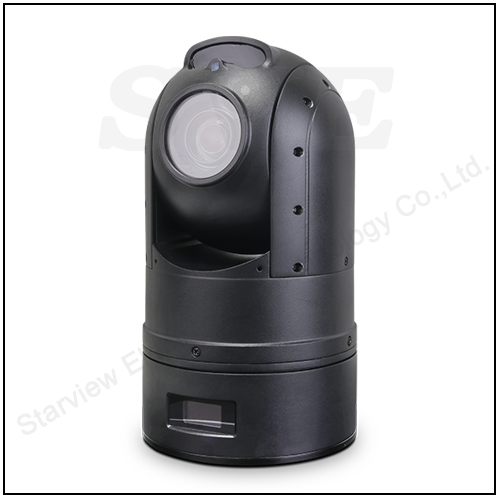

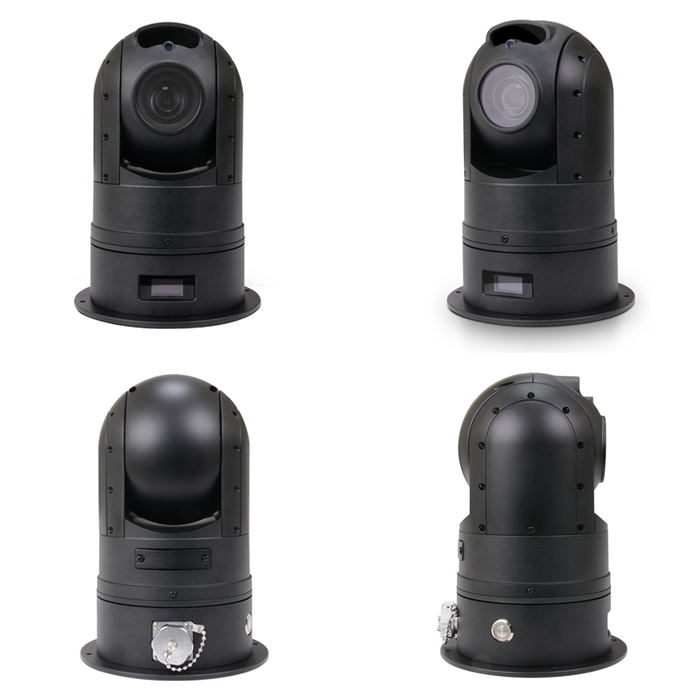

1080P 20X 4G Wireless IP67 GPS Emergency IP67 Outdoor Security Network Vehicle IP PTZ Camera

Features Description
Integrated structure design, protection level up to IP67
Small size and lightweight design, the weight of a single ptz camera no exceed 2KG
HD video, 2mp high resolution 1920x1080p
360 degree continuous rotation, support patrol, line scan, preset position, park
position, etc.
20x optical zoom, Max up to 80m infrared night vision distance
Support 3D positioning function, which can accurately locate and monitor the selected
Support 4G full Netcom remote wireless video transmission, real-time smooth image
Support mobile phones and tablets to access the camera via the client
Support TF card storage, max up to 256G
Support two-way voice intercom, support microphone intercom
Magnetic composite suction cup design, built-in large-capacity lithium battery
Optional AI function, face capture recognition, human type detection, structuring of
vehicle license plate video, helmet recognition, etc.

System Hisilicon Embedded System
Protocol Onvif protocol, support to provide the bottom layer and assist in development
Configuration and Video browsing method configuration network port
WEB Support (video can be browsed)
PC client Support (video can be browsed)
Mobiel App Support (video can be browsed)
Input Built in 1CH video, 1CH audio
PTZ Pan range 360° continuous rotation
Tilt range -30°-90°
Rotation speed pan control speed:100°/s, tilt control speed:60°/s
Preset 255x
Patrol 4x
Line scan support
Park function Support
IR distance 4x high-power infrared lamps, 2 groups (low beam/high beam) brown glass filter, infrared distance up to 80 meters
Camera Sensor 1/2.8"High performance low illumination CMOS sensor ( IMX327 )
Resolution 1080P (1920*1080 25/30 frames/sec)
Optical zoom 20x
Focus lens F = 4.7~94mm
Iris F1.6~F3.5
View angle Wide:58.9°×45.3°Tele:2.11°×1.61°
Illumination (condition:F1.6(W),50 IRE),0.05 lx(1/30s)
IR-CUT on, 0.005 lx(1/4s)IR-CUT off
Day-night mode ICR cut switch
Compression H.264/H.265
Bit rate 32Kbps-16Mbps
Frame rate 1-25fps(50Hz)   1-30fps(60Hz)
Stream Support dual stream, main stream (1080P; 960P: 720P), sub stream (D1; VGA; CIF)
Video Format AVI(with audio)
Support resolution D1/720P/1080P(default)
Video file length 10 minutes (default)
Frame rate 25/30 fps
Storage Single card, maximum support 256G
Snap Support resolution D1/720P/1080P(default)
Audio Audio input Built-in high-sensitivity pickup, optional hand microphone
Compression standard G711
Sampling Rate 16K,32K,64K,128K
3G/4G Wireless system 4G Full Netcom
Number of wireless cards 1 SIM card
Private Network Customized
Antenna placement built in
WIFI Standard IEEE 802.11a/b/g/n/ac  2.4G&5G
Distance 15m
Antenna placement built in
AP hotspot support
Support WIFI basic function settings
Satellite positioning Positionning method GPS/Beidou (built-in module)
Auxiliary positioning Support base station positioning
Antenna placement Built in 4G antenna, built-in WIFI antenna
LCD Display LED light 1 ring light backlight
OLED screen Support OLED screen to display 4G, WIFI, GPS connection status, storage status, signal strength, and display platform connection status
OSD Image OSD can be accessed and displayed, device name, time, GPS, 4G network, battery character superimposed
Alarm Input 1CH
Output 1 group
Expand RS232 series port RS232 serial port, can be connected with various sensors, such as temperature and humidity, radar and other peripherals
Buttons and controls Physical button 1 switch machine button, long press for 3 seconds to switch machine
Protection Grade IP67
Handle design Support
Working temperature -30~60°
Working humidity 0~95% No condensation

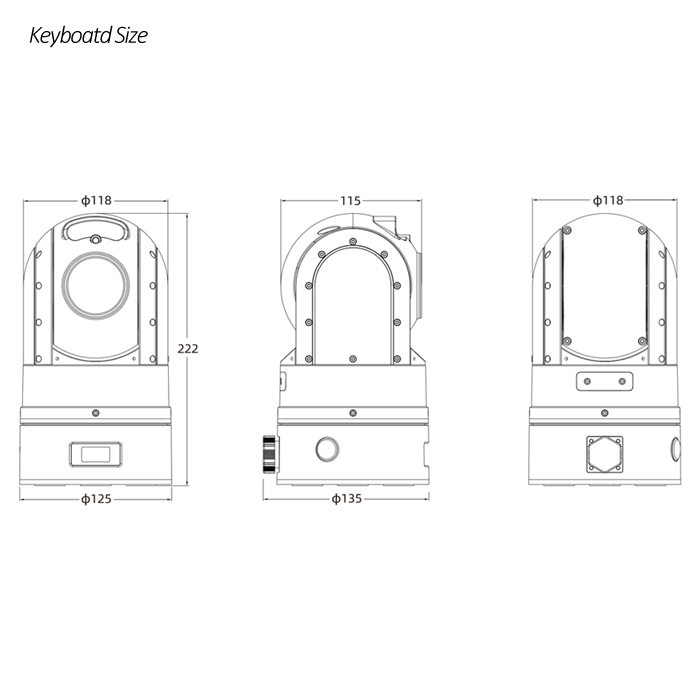

Product dimension Φ125*210mm
Weight 2kg/6kg Packed with safety box
Fixed way Magnetic suction cup, tripod mounting, support bracket wall mounting, ceiling, pole mounting
Interface cable Charging port Φ5.5*2.1
series port 232 level
audio port American standard headphone jack
alarm output port 1CH
Power and power consumption Battery DC12.6V 120Wh (9 18650 batteries)
High-precision power monitoring
Bare camera power consumption Common 10W, maximum power consumption is less than 20W (turn on IR)
Continuous working time 8hours
Battery location Built-in at the bottom
Charging standard DC12.6V/3A
Charging time Turn off for 4 hours, turn on for 8 hours (typical 12V 3A)
Standard accessories Interface cable standard
Handle standard
Charger DC12.6V 3A
Optional accessories Hand microphone DC4.2V 7.4Wh,dimension 63*25.6*90mm(optional)
Safety box optional
Tripod fixed disc optional
Tripod Aluminum alloy, total weight 1.5kg, 4 tripods, maximum load-bearing 8kg (optional)
